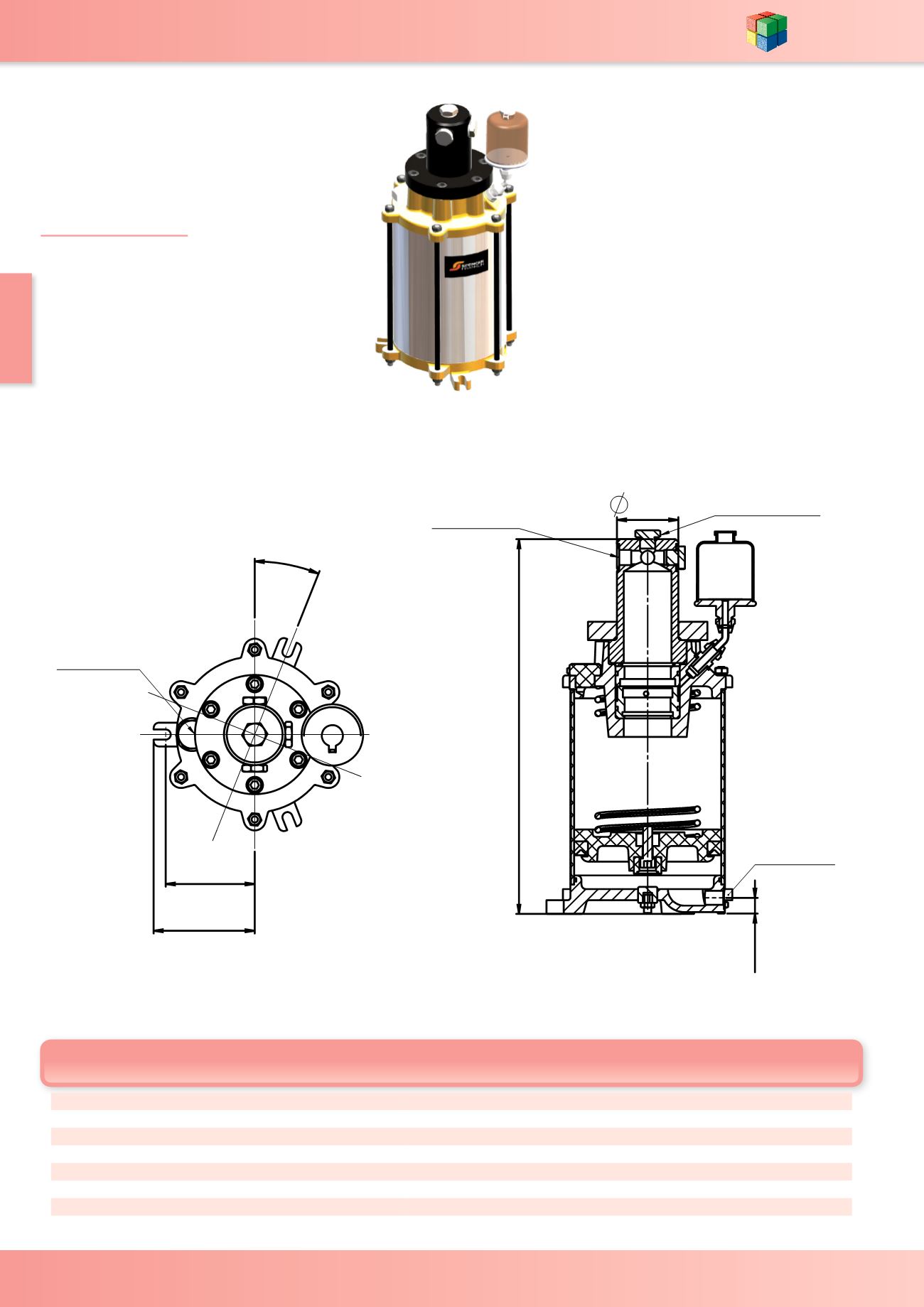

Minibooster
SF 2600
Series
21.6°
110
96.8
BREATHER
66.8
408
17.5
3/8 B.S.P
TAPER AIR
INLET
4 PORTS G
3/8" B.S.P.
HYDRAULIC
OUTLETS
1/2" B.S. PORT
1/2" B.S.P. TAPER PLUG
MAY BE REMOVED FOR
ALTERNATEIVE AIR
CONNECTION
Max Oil
Intensification Ratio
Maximum Output
cm³
Max Oil Output
Pressure bar
Max Air Pressure bar
Weight kg
WDS No.
Seal Kit No.
10:1
215.98
70
7
18
SF-2600
SF-26009
16:1
138.23
112
7
18
SF-2610
SF-26109
25:1
88.46
175
7
18
SF-2620
SF-26209
32:1
67.73
224
7
18
SF-2630
SF-26309
40:1
53.99
280
7
18
SF-2640
SF-26409
64:1
34.55
384
6
18
SF-2650
SF-26509
100:1
22.11
500
5
18
SF-2660
SF-26609
TECHNICAL INFORMATION
-
Air Cylinder Stroke: 110mm
Air Cylinder Bore Dia: 160mm
Air Consumption at 5.62
bar per 25.4mm stroke =
0.0034m³
7.0 bar maximum air input
pressure
Mounting: Novel arrangement of the Autofeed device allows Booster to be mounted horizontally or vertically with the outlet ports uppermost,
simply by rotating the Autofeed assembly through 90°.
Re
fer to page 21-46 &
21-47 for more technical
information
