SECTION 22 - EYE BOLTS & HOIST RINGS WDS
& 0845 606 66 77 • : • * 22-4
WDS

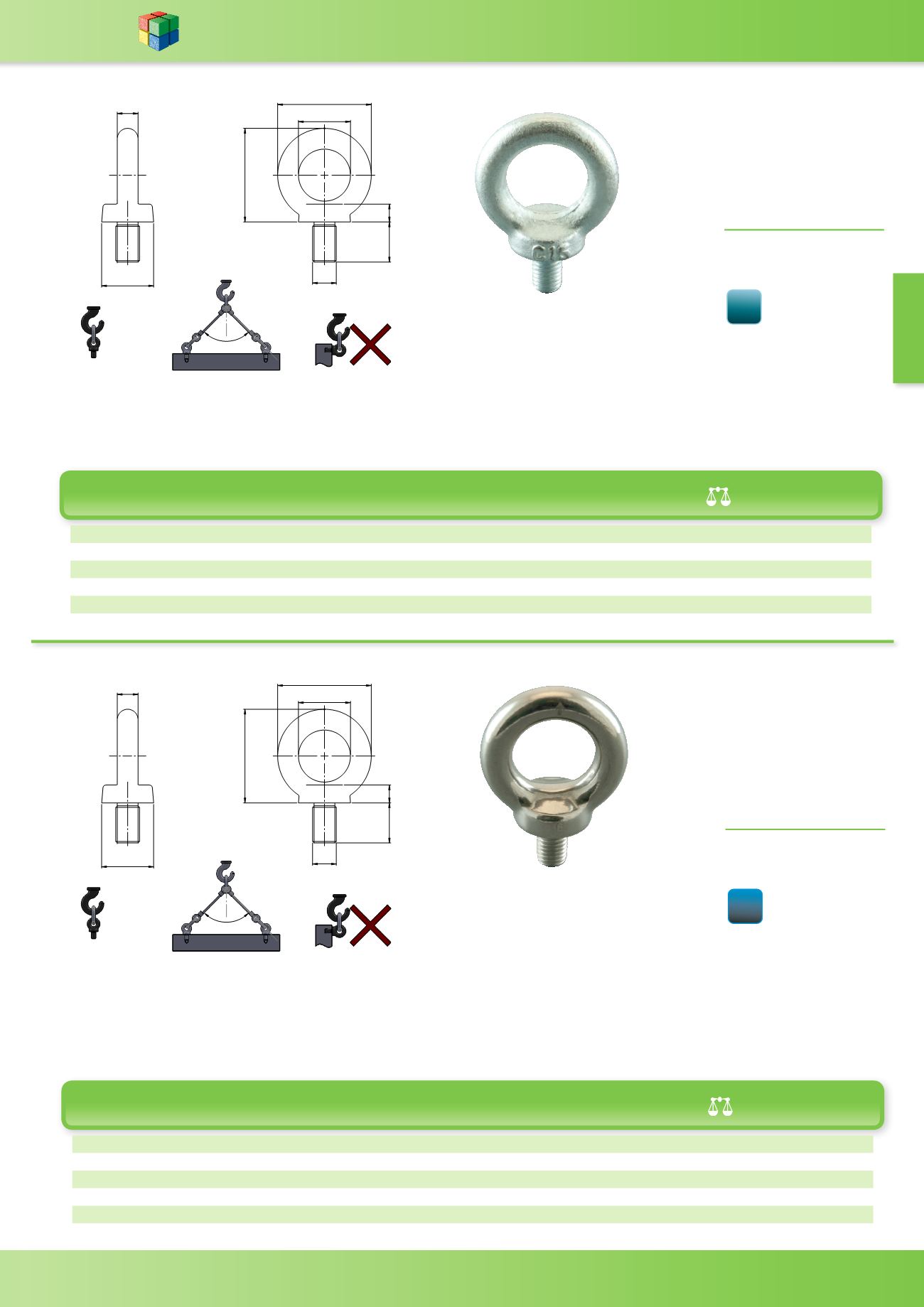

Eyebolts To
DIN580 - Metric
Coarse Thread
C15 Steel
WDS 695
MATERIAL -
C15 steel
Bright Zinc plated
CE marked
Batch coded for identification
Marked with WLL for axial
loads
Supplied with a Report of
Thorough Examination of
Lifting Equipment
B
E
H T
D
H1
S
C
90°
WLL-2 WLL
D B C E H H1 S T WLL (kg) WLL-2 (kg) (g) WDS No.
M6 36 20 20 6 36 8 13 70 50 56 695-580206
M8 36 20 20 6 36 8 13 140 95 56 695-580208
M10 45 25 25 8 45 10 17 230 170 108 695-580210
M12 54 30 30 10 53 12 20.5 340 240 174 695-580212
M16 63 35 35 12 62 14 27 700 500 280 695-580216
Eyebolts Similar
To DIN580 -
Metric Coarse
Thread 316
Stainless Steel
WDS 695
MATERIAL -
316 Stainless Steel
Metric Coarse Thread
CE marked
Batch coded for identification
Marked with WLL for axial
loads
Supplied with a Report of
Thorough Examination of
Lifting Equipment
D B C E H H1 S T WLL (kg) WLL-2 (kg) (g) WDS No.
M6 36 20 20 6 36 8 13 70 50 56 695-580606
M8 36 20 20 6 36 8 13 140 95 56 695-580608
M10 45 25 25 8 45 10 17 230 170 108 695-580610
M12 54 30 30 10 53 12 20.5 340 240 174 695-580612
M16 63 35 35 12 62 14 27 700 500 280 695-580616
Lifting equipment must be specified by a competent trained person
Lifting equipment must be specified by a competent trained person
B
E
H T
D
H1
S
C
90°
WLL-2 WLL
ZP
316
