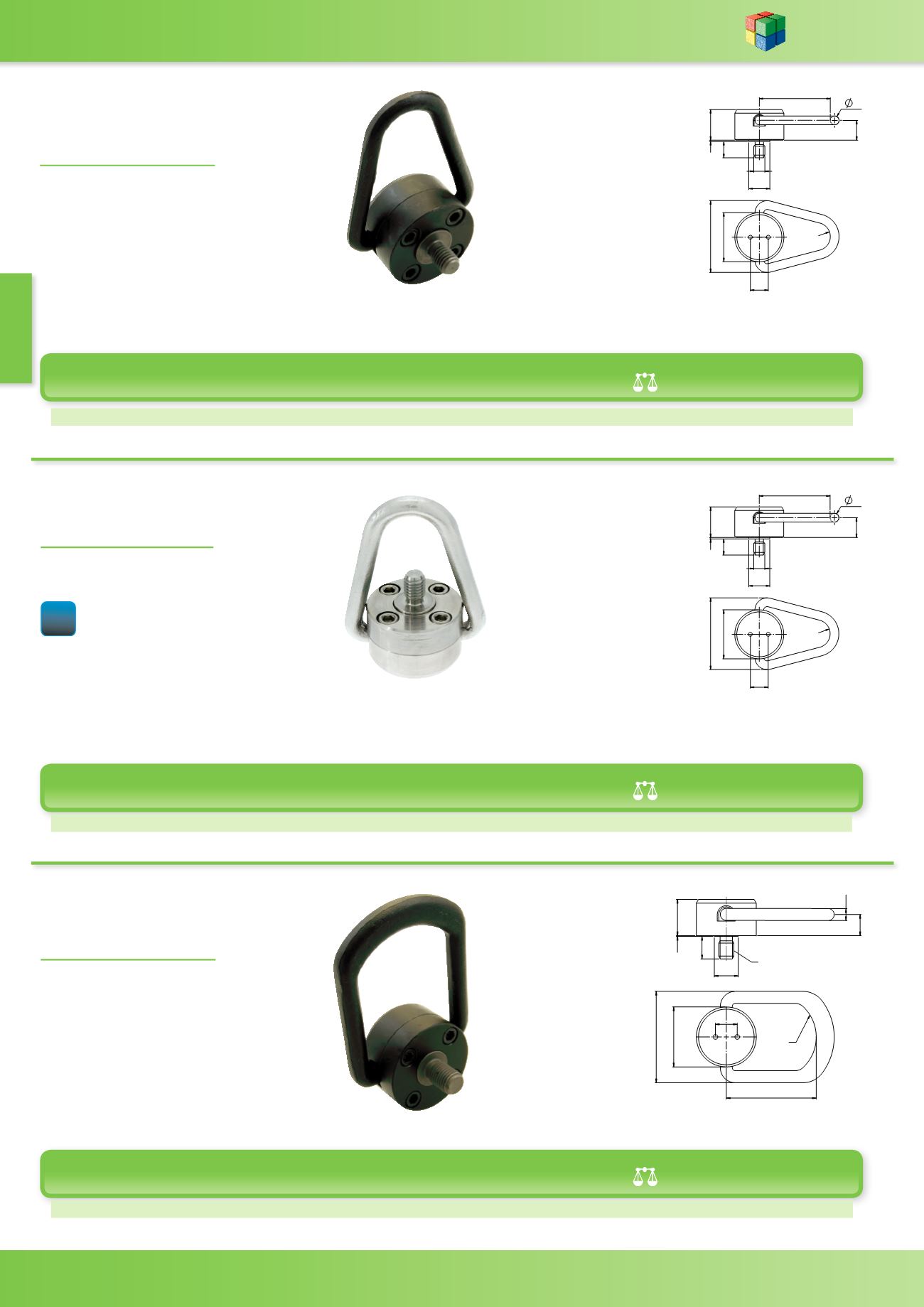

SECTION 22 - EYE BOLTS & HOIST RINGS
WDS
WDS
www.wdsltd.co.uk22-7
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukSwivel Eyebolt
Swivel Eyebolt
WDS 695
WDS 695
MATERIAL
-
Alloy Steel, Chemical black finish
Tamper Resistant
Supplied with certificate of proof
test
.
See 695-601/602 for this part in
Stainless Steel.
MATERIAL
-
Stainless Steel Grade 316
Tamper Resistant
Supplied with certificate of proof
test.
See 695-301/302 for this part in
Steel.
A B C D E
F
G H J
K
L
R
(kg)
P
WDS No.
M10 27.8 14.6 19.1 1.2 17.9 7.9 44.5 63.5 66.7 16.2 12.7 0.4 250
695-301
M12 27.8 19.1 19.1 1.2 17.9 7.9 44.5 63.5 66.7 16.2 12.7 0.4 350
695-302
A B C D E
F
G H J
K
L
R
(kg)
P
WDS No.
M10 27.8 14.6 19.1 1.2 17.9 7.9 44.5 63.5 66.7 16.2 12.7 0.4 250
695-601
M12 27.8 19.1 19.1 1.2 17.9 7.9 44.5 63.5 66.7 16.2 12.7 0.4 350
695-602
P = Load capacity kg
P = Load capacity kg
$
'
)
% (
&
-
*
+
5
/
.
$
'
)
% (
&
-
*
+
5
/
.
Swivel Eyebolt
WDS 695
MATERIAL
-
Alloy Steel, Chemical black finish
Tamper resistant
Supplied with certificate of proof
test
.
See 695-611/612 for this part in
Stainless Steel.
A B C D E
F
G H J
K
L
R
(kg)
P
WDS No.
M16 38.5 23.8 22.2 0.8 22.6 12.7 63.5 88.9 96.8 23.1 44.5 1.2 750
695-311
M20 38.5 30.2 25.4 0.8 22.6 12.7 63.5 88.9 96.8 23.1 44.5 1.2 1000
695-312
P = Load capacity kg
% (
&
'
*
-
+
)
$
.
/
5
316
Installation Tool also available:
695-801
Installation Tool also available:
695-801
Installation Tool also available:
695-801
Lifting equipment must be specified by a competent trained person
Lifting equipment must be specified by a competent trained person
Lifting equipment must be specified by a competent trained person
