SECTION 23 - MAGNETS WDS
WDS
23-1 & 0845 606 66 77 • : • *

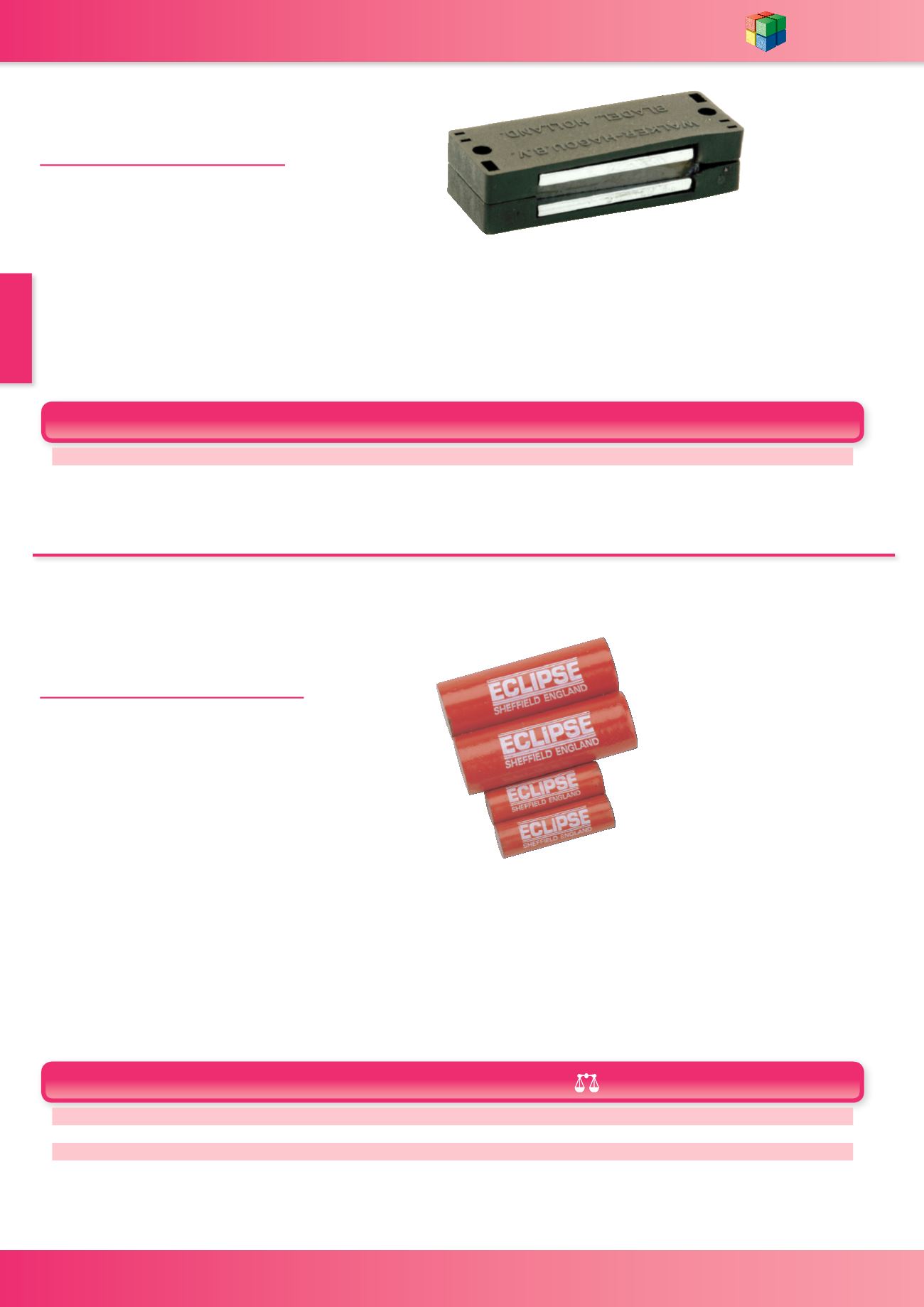

Magnetic Door Catches
Cylindrical Bar Magnets
WDS 5724-90
WDS 5724-E80
MATERIAL -
Plastic covered permanent magnet
Colour - Black
Technical Information
• Magnetic holding faces on two opposite
sides
• Two 4.5mm diameter through holes for
mounting
Technical Information
• Cylindrical bars are cast from Alnico 5
material
• Each magnet has a high length to cross section
ratio
• Traditional bar magnet with North & South Poles at
each end
• Cylindrical Bars can be used in temperatures up
to 550°C
The magnets have a variety of uses, including:
• Reed switch operation & hall effect
sensors
• Magnetic sump plug in motor vehicles
• Used in coin operated machines
• Security,instrumentation, scientific
applications
• Used in electrical meters and circuit
boards
The magnets are sold in pairs
Dimensions (L x W x H) Holding Power* (kg) WDS No.
66 x 15 x 24 20 5724-90-01-001
41 x 15 x 24 8 5724-90-02-002
Diameter mm Length mm Gauss Weight Per Pair (kg) WDS No.
6 20 1200 0.008 5724-E805
8 25 1200 0.018 5724-E806
10 30 1200 0.035 5724-E807
Note: Industrial Bar Magnets are available in a wide range of diameters from 3mm to 10mm and up to 200mm in length.
