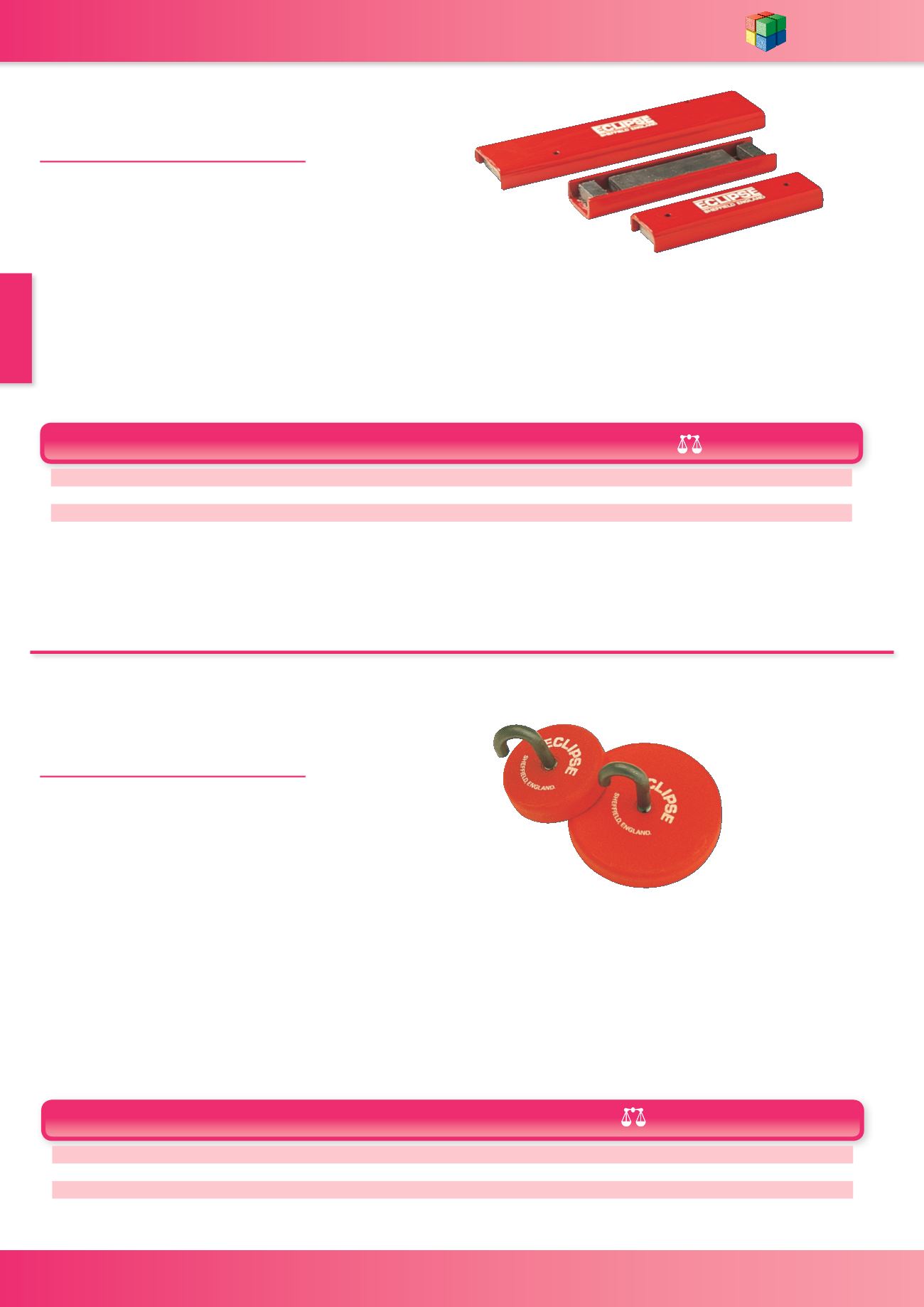

sales@wdsltd.co.ukFerrite Channel Magnets
WDS 5724-E89
Note: Maximum Pull figures are typical values. These will be achieved with smooth, mild steel, workpieces of adequate thickness where contact faces are intimate and clean
Length mm Width mm Height mm
Plain Fixing
Holes Dia mm
Hole
Centres
Max Pull (kg)
Weight Each
(kg)
WDS No.
115
30
13
4.2
80
8
0.25
5724-E898/1
130
30
13
4.2
90
14
0.30
5724-E898/2
190
43
13
4.2
110
48
0.55
5724-E899
Technical Information
• Ferrite Channel Magnets are shallow limpet type
magnets set in a mild steel shell
• Ferrite Channel Magnets are manufactured using
ceramic ferrite magnetic materials
• Ferrite Magnets can be used up to temperatures of
120°C
The magnets have a variety of uses, including:
• Industrial light fitting applications
• Bases for machine tool accessories
Ferrite Shallow Pot Magnets
WDS 5724-E89
Technical Information
• Ferrite Shallow Pot Magnets offer a high clamping
force, even on painted surfaces
• Especially suitable for clamping onto thin sheet
metal surfaces
• Supplied with a central M6 tapped hole and a
removable hook
• Suitable for use at temperatures up to 120°C
• Highly resistant to de-magnetisation
Diameter mm Height mm Thread Size
Max Pull
Weight
(kg)
WDS No.
46
10.7
M6
6
0.09
5724-E890
56
10.7
M6
16
0.13
5724-E891
66
10.7
M6
25
0.19
5724-E892
The magnets have a variety of uses, including:
• For use where height is a restriction
• Industrial light fitting applications
• Bases for machine tool accessories
• Holding, securing, clamping and fixing applications
• Removeable hook
