SECTION 23 - MAGNETS WDS
& 0845 606 66 77 • : • * 23-6
WDS
Technical Information
• Heavy Duty Ferrite Shallow Pot Magnets are made
from Ceramic Ferrite Material inside a mild steel shell
• Heavy Duty Ferrite Shallow Pot Magnets offer higher
clamping force
• Supplied with a central M6 tapped hole and
removable jacking screw for ease of release
• Three M6 mounting positions arranged on a PCD
• Magnetic poles are on the same face
• Suitable for use at temperatures up to 120°C
• Highly resistant to de-magnetisation
• Easy jacking screw release
The magnets have a variety of uses, including:
• Holding, securing, clamping & fixing applications

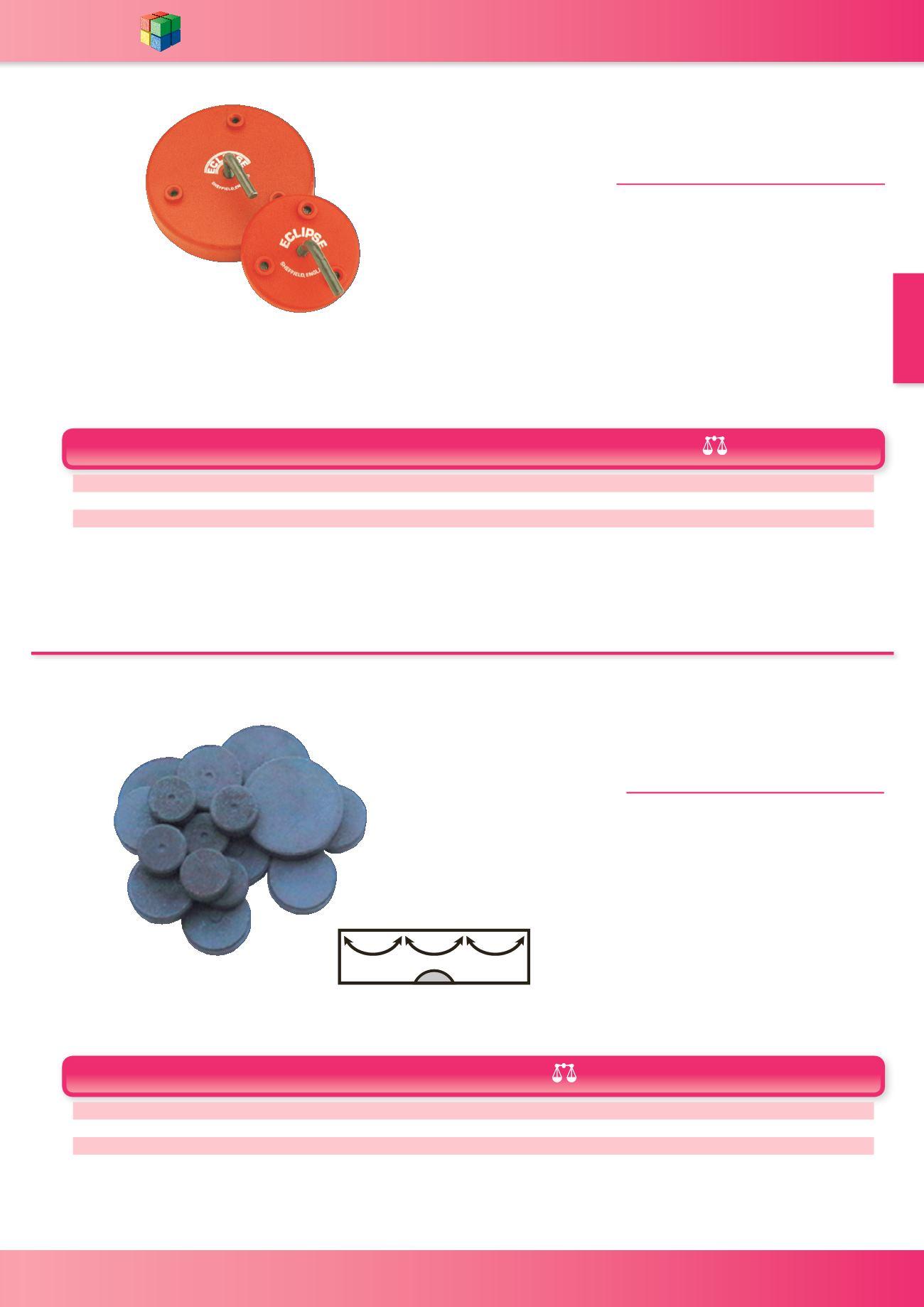

Heavy Duty Ferrite Shallow
Pot Magnets
WDS 5724-E89
The 3 additional holes are clearance holes.
Maximum Pull figures are typical values. These will be achieved with smooth, mild steel, workpieces of adequate thickness where contact faces are intimate and clean
Diameter mm Height mm Central Fixing Point
Fixing Stud
Centres PCD MM Max Pull (kg)
Weight (kg) WDS No.
66 10.7 M6 46mm/3 holes 25 0.27 5724-E895
76 12.5 M6 46mm/3 holes 33 0.30 5724-E896
100 15.0 M6 70mm/3 holes 55 0.61 5724-E897
Technical Information
• Ceramic Ferrite Magnetic Discs are ‘magnetic
drawing pins’ and are magnetised multi-pole one
face
• Magnetic Discs are manufactured from Ceramic
Ferrite Material
• Highly resistant to de-magnetisation
• Ceramic Ferrite Magnetic Discs can be used up to
temperatures of 250°C
The magnets have a variety of uses, including:
• Used in conjunction with magnetic notice boards
• Fridge Magnets
• Magnetic Toys and Games
Magnetic Discs
WDS 5724-CM
Note: WDS part number is for a bag of 10 discs.
Diameter mm Thickness mm Pull Force (kg) Weight (kg) WDS No.
14 5 0.123 0.0038 5724-CM700-R
20 5 0.175 0.0079 5724-CM701-R
30 5 0.262 0.0177 5724-CM702-R
N
Non-Magnetic face
N S S
