SECTION 23 - MAGNETS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk23-4
WDS

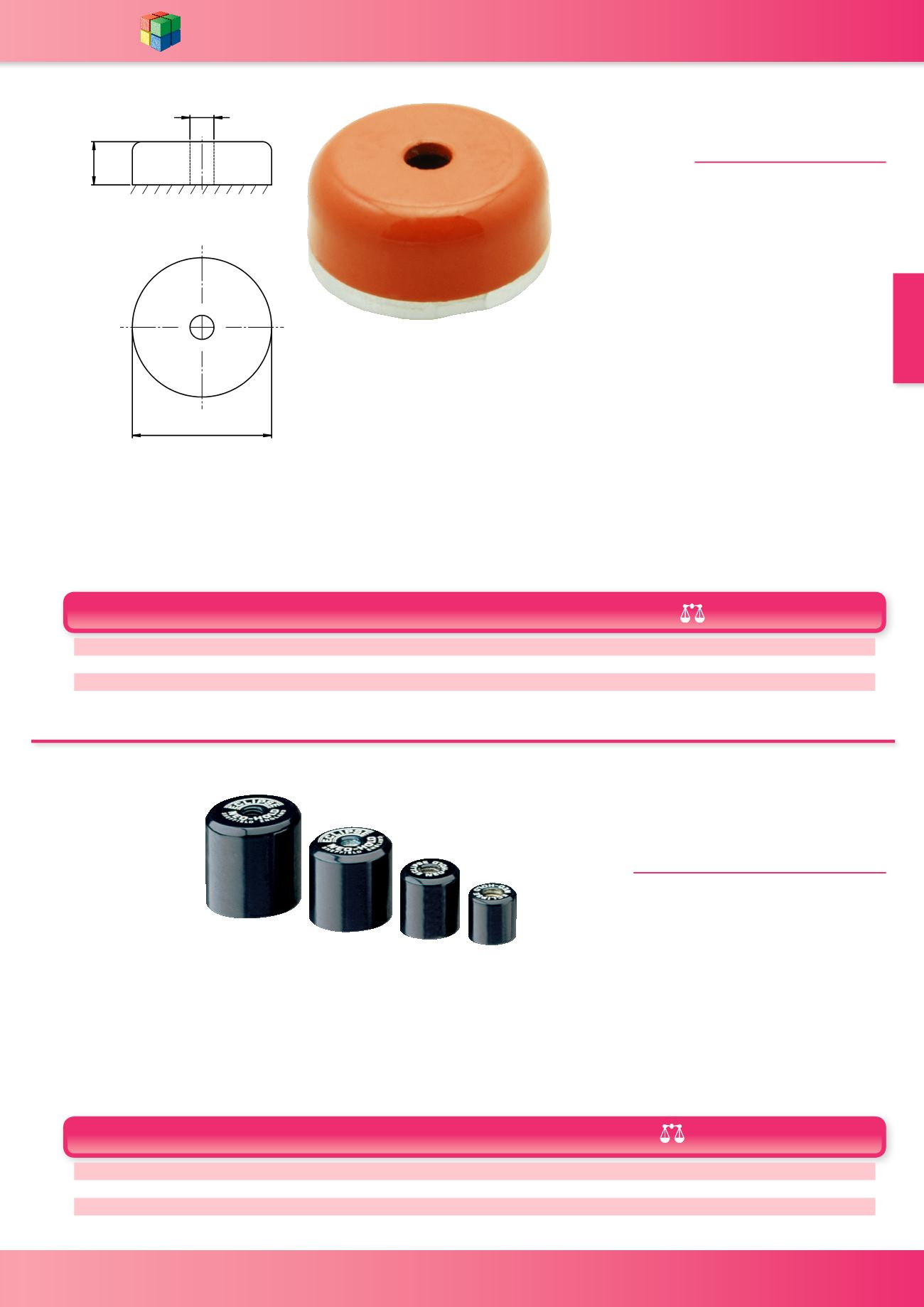

www.wdsltd.co.ukShallow Pot Magnets
Neo-Hold Bi-Pole
Gripping Magnets
WDS 5742
WDS 5724-NH
Note: Maximum Pull figures are typical values. These will be achieved with smooth, mild steel, workpieces of adequate thickness where contact faces are intimate and clean
D
D1
H
Adhesive Force (N)
Weight
(kg)
WDS No.
19
3.5
8
30
1
5742-201
29
5
9
55
46
5742-202
38
5
10.5
95
97
5742-203
Technical Information
• Shallow Pot Magnets are all cylindrical Alnico 5 permanent magnets assembled
concentrically in a mild steel pot
• Shallow Pot Magnets can be fixed using the central countersunk hole
• They can be fixed to steel surfaces without losing magnetism
• Shallow Pot Magnets are magnetic on one face only
• Shallow Pot Magnets can be used at temperatures up to 450°C
• Ideal for securing items to thin sheet metal surfaces
• Supplied with a keeper
The magnets have a variety of uses, including:
• Gripping and lifting applications
• Positioning jigs
• Soldering fixtures
• Sinking into jigs & fixtures
• Securing and fixing
• Handling thin steel sheets
• Designed for applications where height is too restricted for conventional pot magnets
Technical Information
• Strong gripping force with 2 poles on the same
face
• Range has threaded holes on the top face
• Greater holding power than standard Alnico
Magnets
• Neo-Hold Bi-Pole Magnets are constructed from
Neodymium Iron Boron Magnets and an Aluminium
Pot
• Maximum operating temperature 100°C
• Supplied with keeper
The magnet has a variety of uses, including:
• For use where high clamping forces are required
and space is restricted
• For use in positioning, holding and clamping
devices
Diameter mm Height mm Thread Size
Max Pull (kg)
Weight (kg)
WDS No.
12.7
11.6
M5
2
0.01
5724-NH025
16.0
15.6
M6
5
0.018
5724-NH065
22.0
20.0
M6
9
0.040
5724-NH130
25.4
25.0
M6
15
0.070
5724-NH240
D
H
D
MATERIAL
-
Steel Body with AlNiCo Magnetic Core
painted red
Temperature Range - Max 450
°
C
