SECTION 23 - MAGNETS WDS
& 0845 606 66 77 • : • * 23-2
WDS

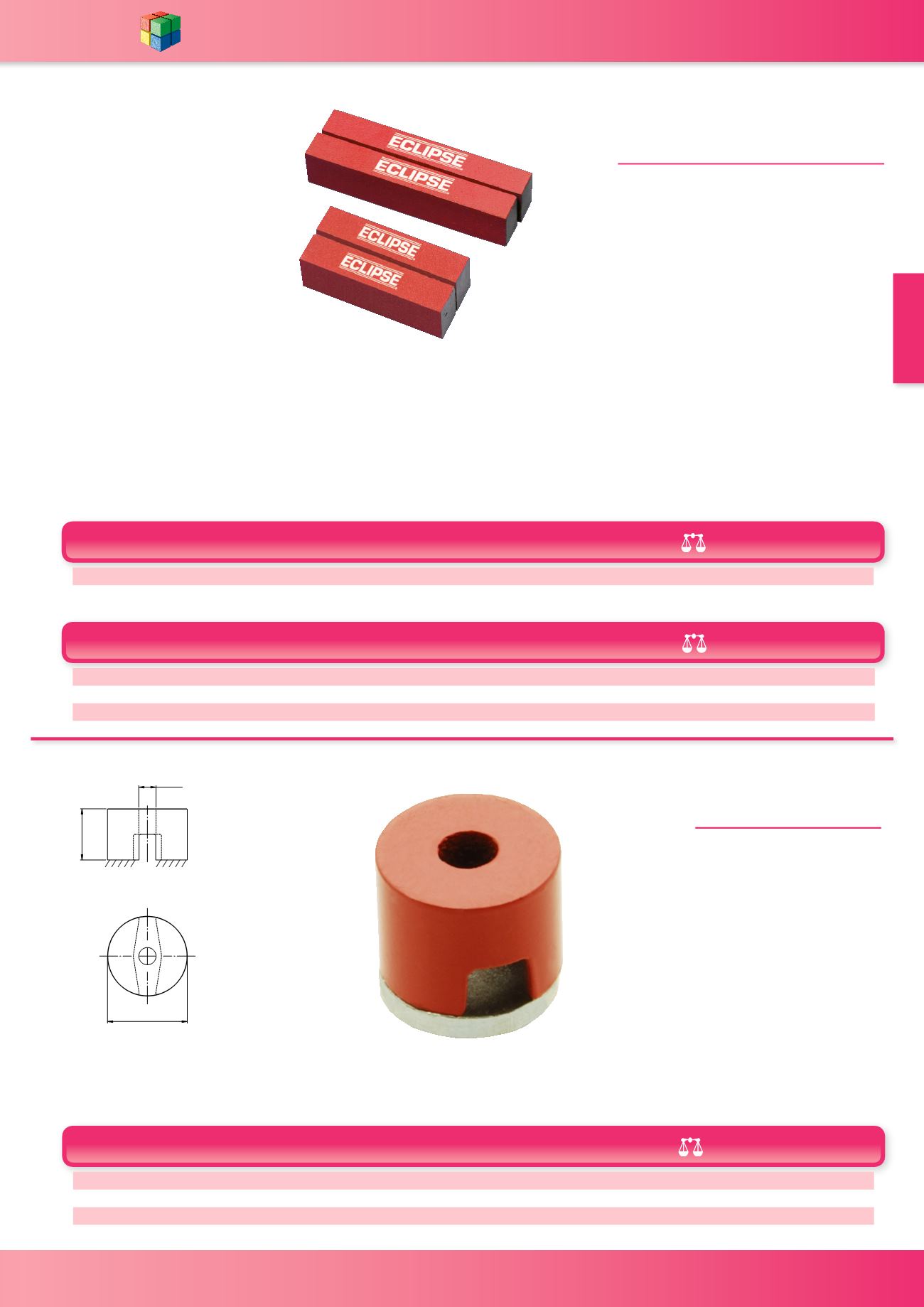

Rectangular Bar Magnets
Button Magnets
WDS 5724-E84
WDS 5743
Technical Information
• 5724-E844, 5724-E845 and 5724-E846 Bar Magnets
are cast from Alnico 5. 5724-E842 and 5724-E843
are cast from Alnico 2 material.
• Rectangular Bar Magnets have magnetic poles at
the bar ends
• Each magnet has a high length to cross section
ratio
• Traditional bar magnet with North & South Poles at
each end
• The poles of the magnet are ground
• North pole is indicated by a notch
• Supplied in pairs
• Rectangular Bars can be used in temperatures up
to 550°C
Technical Information
• Cylindrical magnet with both poles
in the same plane
• Button Magnets are cast from
Alnico material
• Button Magnets can be used in
temperatures up to 550°C
• With fixing holes
• Two magnetic poles
• Supplied with keeper
The magnets have a variety of uses,
including:
• Paint Plant Jigs
• Damping applications
• Temperature sensitive devices
• Relay switches
Width mm Height mm Length mm Gauss Weight Per Pair (kg) WDS No.
15.0 10 50 750 0.22 5724-E842
15.0 10 75 750 0.33 5724-E843
Magnet material: Alnico 2
Width mm Height mm Length mm Gauss Weight Per Pair (kg) WDS No.
10.0 5 20 1100 0.03 5724-E844
12.5 5 40 1100 0.04 5724-E845
15.0 5 60 1100 0.13 5724-E846
Magnet material: Alnico 5
D D1 H Adhesive Force (N) Weight (g) WDS No.
13 4.2 10 7 7 5743-201
19 5.4 13 19 20 5743-202
25 5.4 16 29 56 5743-203
32 7 25 66 133 5743-204
D1
H
D
The magnets have a variety of uses, including:
• Components for reed switches, relays & hall effect
sensors
• Damping applications
• Security, instrumentation, scientific applications
• Oil filters
• Educational use
• Laboratory use
MATERIAL -
Magnetic core AlNiCo painted red
Temperature Range - Max 450°C
