SECTION 28 - CLAMPS WDS
& 0845 606 66 77 • : • * 28-2
WDS

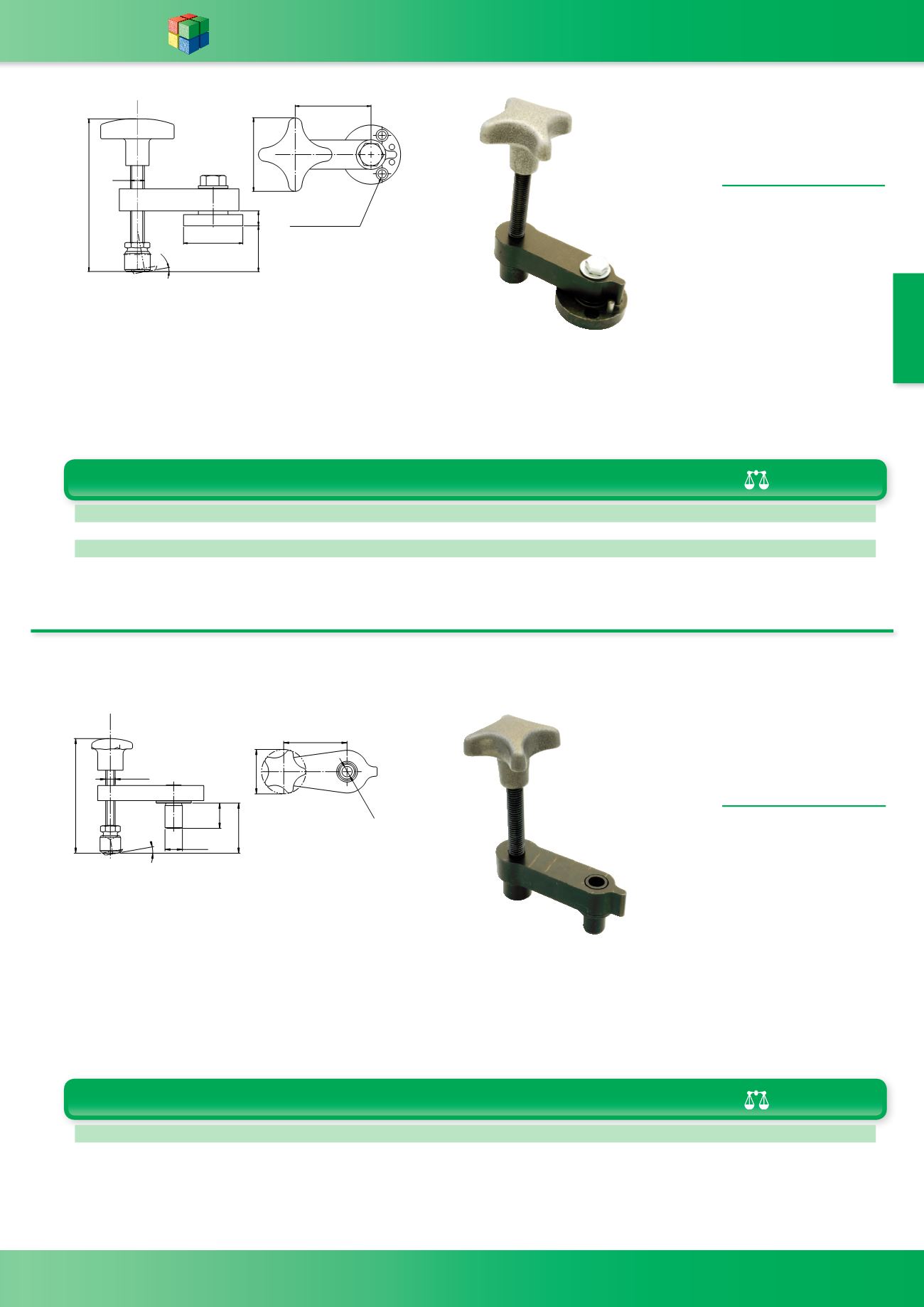

Swing Latch
Clamp
Swing Latch
Clamp
WDS 656
WDS 656
MATERIAL -
Screw - Low Carbon Steel
Swivel Pad and Swing Link Pin -
Steel BS 970 Gr 220M07
Swing Link - Steel BS 970
Gr 080A15
Hand Knob - Grey Cast Iron BS
1452 Gr 260
Chemical black finish
MATERIAL -
Screw - Low Carbon Steel
Swivel Pad and Swing Link Pin -
Steel BS 970 Gr 220M07
Swing Link - Steel BS970 Gr080
A15
Dowel - Hardened Steel
Hand Knob - Grey Cast Iron
BS1452 Gr 260
Chemical black finish
D L Min Max D1 D2 D3 D4 H1 (g) WDS No.
M12 65 12 61 63 50 38 M6 128 765 656-210
M12 90 12 61 63 50 38 M6 128 840 656-212
M12 115 12 61 63 50 38 M6 128 920 656-214
D L H Min H Max D1 D2 e9 D3 H1 H2 (g) WDS No.
M6 40 16 37 32 11 6.5 16 70 140 656-201
M12 65 22 71 63 16 10.5 19 128 595 656-203
H
'
+
'
r +
/
'
+2/(6 72 68,7
6&5(: '
21 ' 3&'
'2:(/ 6833/,(' $6 6723
+
+
+
'
' r
'
/
'
