SECTION 28 - CLAMPS WDS
& 0845 606 66 77 • : • * 28-6
WDS

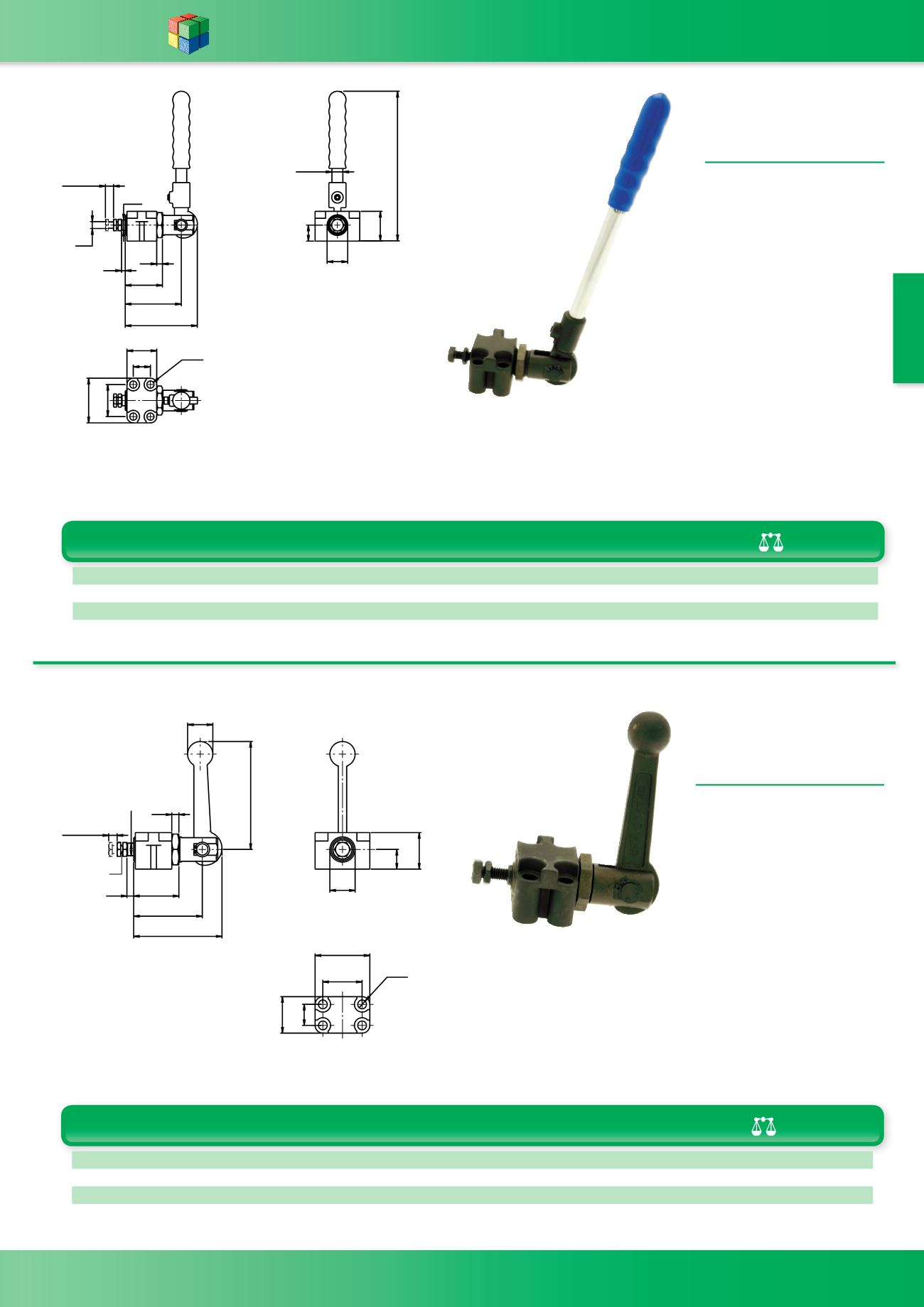

Cam Push Clamp
WDS 4104
MATERIAL -
Steel parts with black finish
All wearing parts hardened
Supplied with setscrew and nut and
mounting block
S = Fast stroke P = Hand push Kgf
S1 = Clamp stroke P1 = Max holding force kg
D D1 D2 D3 A A1 B B1 L L1 L2 L3 L4 R S S1 T H H1 P P1 (kg) WDS No.
M18x1.5 9 10 6.3 39 28 26 15 64 50 32 5 2 172 5.2 2.2 M6 26 14 36 1500 0.4 4104-201
M24x1.5 12 10 8.3 50 36 34 20 85 68 41 7 3 228 7.0 3.0 M8 33 18 38 1700 0.8 4104-202
M33x2.0 16 16 10.3 68 50 43 25 109 86 54 9.5 4 312 11.0 4.0 M12 45 25 43 2000 2.0 4104-203
'
+
+
'
5
/
/
/ /
'
/
6 6
7
%
%
$ $
'
6 )DVW 6WURNH
6 &ODPS 6WURNH
3 +DQG 3XVK )RUFH NJI
3 0D[ +ROG )RUFH
E\ +DQG 3XVK NJI
Cam Push Clamp
WDS 4103
MATERIAL -
Steel parts with black finish
All wearing parts hardened
Supplied with set screw and nut and
mounting block
D D1 D2 D3 A A1 B B1 L L1 L2 L3 L4 R S S1 T H H1 P P1 P2 (kg) WDS No.
M18x1.5 9 19 6.3 39 28 26 15 64 50 32 5 2 77 5.2 2.2 M6 26 14 36 600 1500 0.3 4103-201
M24x1.5 12 25 8.3 50 36 34 20 85 68 41 7 3 103 7.0 3.0 M8 33 18 38 650 2000 0.6 4103-202
M33x2.0 16 32 10.3 68 50 43 25 109 86 54 9.5 4 140 11.0 4.0 M12 45 25 43 650 3000 1.5 4103-203
+
+
'
% %
$
$
'
'
/
/
/
/
'
5
/
6 6
7
6 )DVW 6WURNH
6 &ODPS 6WURNH
3 +DQG 3XVK )RUFH NJI
3 0D[ +ROG )RUFH
E\ +DQG 3XVK NJI
3 0D[ +ROG )RUFH
E\ 0DOOHW NJI
S = Fast stroke
S1 = Clamp stroke
Hand push = P Kgf
P1 = Max holding force kg hand
P2 = Max holding force kg mallet
