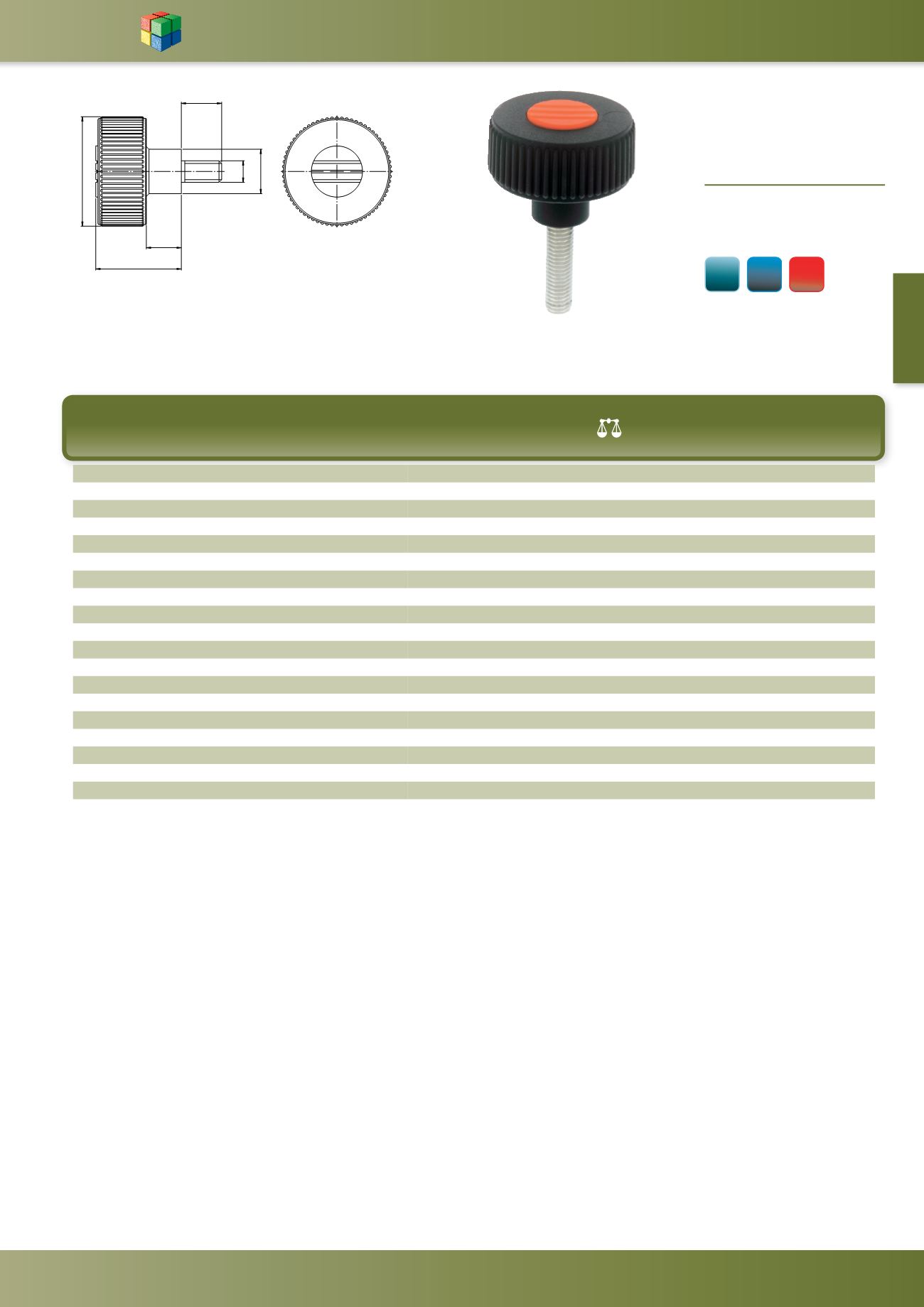

www.wdsltd.co.ukKnurled Wheel -
Male Thread
WDS 8485
MATERIAL
-
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
/
+
+
'
'
'
D
D1
D2
H
H1
L
(g)
WDS No.
Steel Screw
WDS No.
Stainless Steel
Screw
M5
40
16.5
31
13
10
16
8485-502TR 8485-602TR
M5
40
16.5
31
13
20
17
8485-504TR 8485-604TR
M5
40
16.5
31
13
40
20
8485-506TR
-
M6
40
16.5
31
13
10
17
8485-508TR 8485-608TR
M6
40
16.5
31
13
20
19
8485-510TR 8485-610TR
M6
40
16.5
31
13
40
23
8485-512TR 8485-612TR
M8
40
16.5
31
13
15
23
8485-514TR 8485-614TR
M8
40
16.5
31
13
30
29
8485-516TR 8485-616TR
M8
40
16.5
31
13
60
41
8485-518TR 8485-618TR
M8
50
18
36
15
15
26
8485-520TR 8485-620TR
M8
50
18
36
15
30
32
8485-522TR 8485-622TR
M8
50
18
36
15
60
44
8485-524TR 8485-624TR
M10
50
18
36
15
20
35
8485-526TR 8485-626TR
M10
50
18
36
15
30
41
8485-528TR 8485-628TR
M10
50
18
36
15
60
60
8485-530TR 8485-630TR
M10
63
22
41
17
20
39
8485-532TR 8485-632TR
M10
63
22
41
17
30
46
8485-534TR 8485-634TR
M10
63
22
41
17
60
64
8485-536TR 8485-636TR
M12
63
22
41
17
30
61
8485-538TR
-
M12
63
22
41
17
60
87
8485-540TR
-
Traffic Red - RAL 3020
ZP
303
RAL
3020
