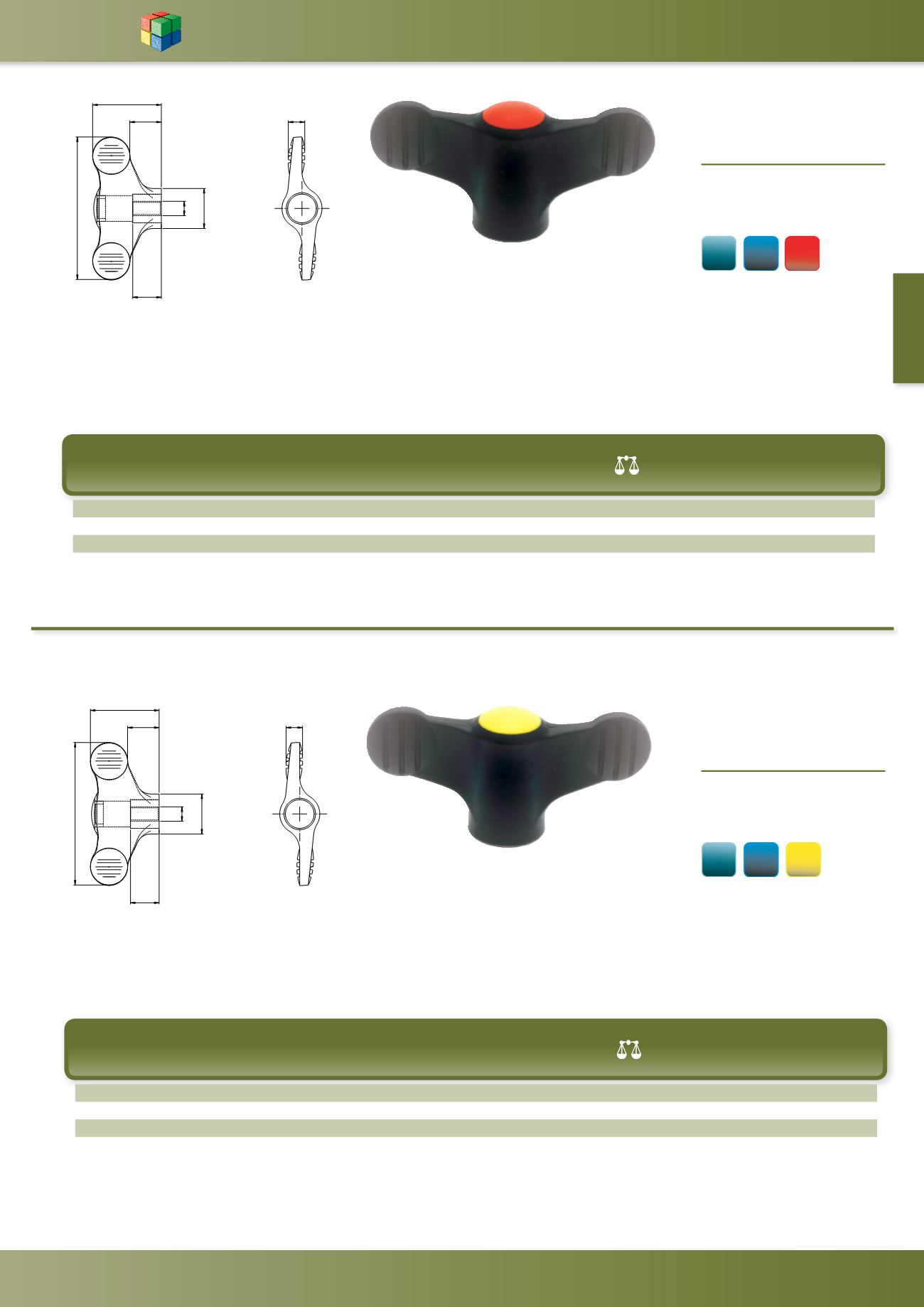

www.wdsltd.co.ukWing Grip - Female
WDS 8460
MATERIAL
-
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
Traffic Red - RAL 3020
D
D1
A
B
H
H1
T
(g)
WDS No.
Steel Insert
WDS No.
Stainless
Steel
M5
14
50
5
24
11.5
10
11.4 8460-202TR 8460-302TR
M6
14
50
5
24
11.5
10
10.8 8460-204TR 8460-304TR
M8
21
75
7
35
16.5
14
28.7 8460-206TR 8460-306TR
M10
21
75
7
35
16.5
14
25.2 8460-208TR 8460-308TR
%
'
+
'
7
$
+
ZP
303
RAL
3020
Wing Grip - Female
WDS 8460
MATERIAL
-
Body - Thermoplastic
Insert - Steel - zinc plated
Insert - Stainless Steel - 303 S31
Cadmium Yellow - RAL 1021
D
D1
A
B
H
H1
T
(g)
WDS No.
Steel Insert
WDS No.
Stainless
Steel
M5
14
50
5
24
11.5
10
11.4 8460-202CY 8460-302CY
M6
14
50
5
24
11.5
10
10.8 8460-204CY 8460-304CY
M8
21
75
7
35
16.5
14
28.7 8460-206CY 8460-306CY
M10
21
75
7
35
16.5
14
25.2 8460-208CY 8460-308CY
%
'
+
'
7
$
+
RAL
1021
ZP
303
