SECTION 7 - LEVELLING FEET WDS
& 0845 606 66 77 • : • * 7-48
WDS

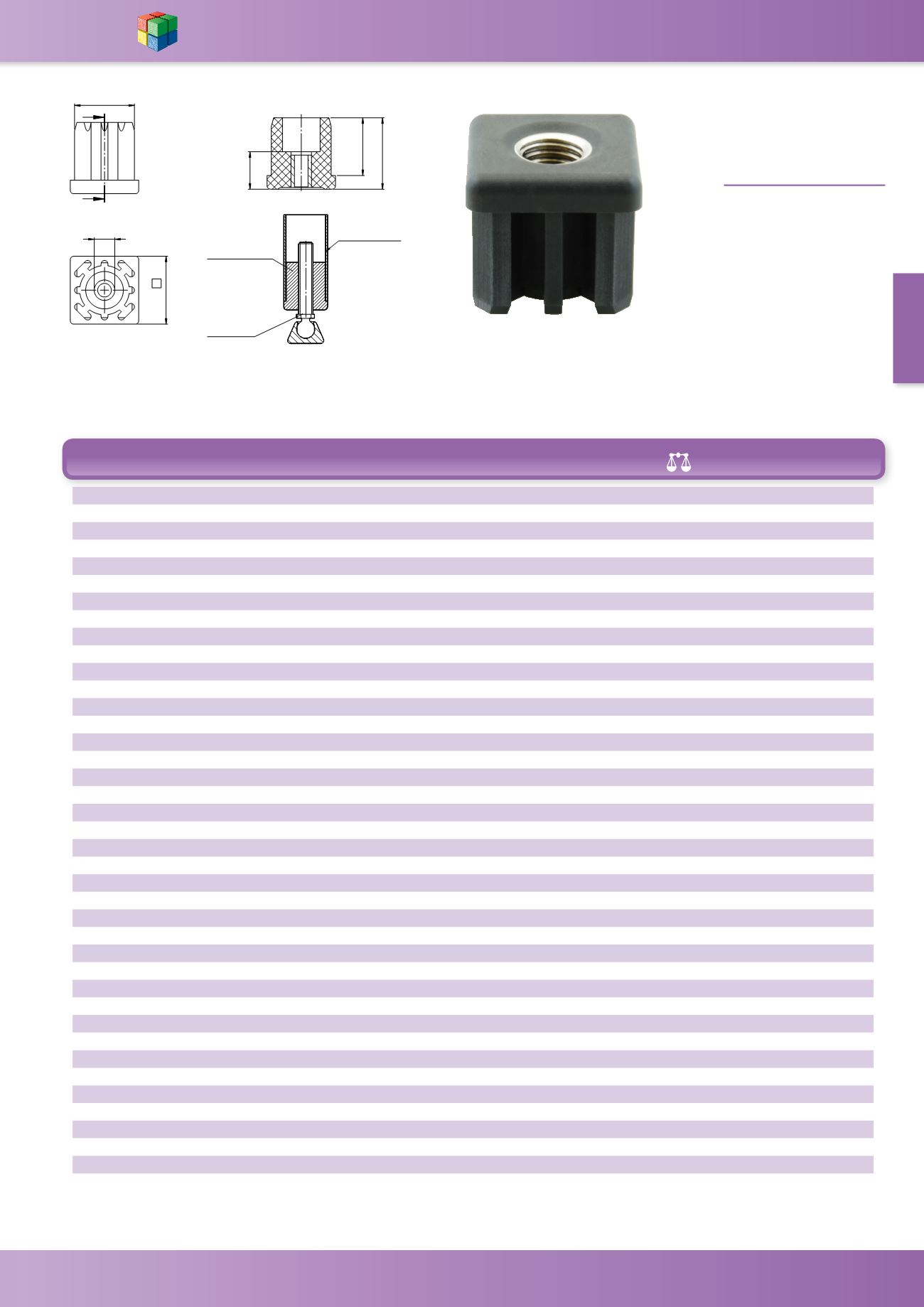

Square Hole Tube
Inserts
WDS 689
MATERIAL -
Glass Filled Nylon
Insert - Brass, Nickel Plated
T S D S1 L L1 L2 (g) WDS No.
30x1.5 30 M8 27 34 28 20 30 689-301508
30x1.5 30 M10 27 34 28 20 30 689-301510
30x1.5 30 M12 27 34 28 20 30 689-301512
30x1.5 30 M16 27 34 28 20 30 689-301516
30x2 30 M8 26 34 28 20 30 689-302008
30x2 30 M10 26 34 28 20 30 689-302010
30x2 30 M12 26 34 28 20 30 689-302012
30x2 30 M16 26 34 28 20 30 689-302016
40x1.5 40 M8 37 42 34 22 55 689-401508
40x1.5 40 M10 37 42 34 22 55 689-401510
40x1.5 40 M12 37 42 34 22 55 689-401512
40x1.5 40 M16 37 42 34 22 55 689-401516
40x1.5 40 M20 37 42 34 22 55 689-401520
40x2 40 M8 36 42 34 22 55 689-402008
40x2 40 M10 36 42 34 22 55 689-402010
40x2 40 M12 36 42 34 22 55 689-402012
40x2 40 M16 36 42 34 22 55 689-402016
40x2 40 M20 36 42 34 22 55 689-402020
40x2.5 40 M8 35 42 34 22 55 689-402508
40x2.5 40 M10 35 42 34 22 55 689-402510
40x2.5 40 M12 35 42 34 22 55 689-402512
40x2.5 40 M16 35 42 34 22 55 689-402516
40x2.5 40 M20 35 42 34 22 55 689-402520
50x1.5 50 M10 47 44 34 22 85 689-501510
50x1.5 50 M12 47 44 34 22 85 689-501512
50x1.5 50 M16 47 44 34 22 85 689-501516
50x1.5 50 M20 47 44 34 22 85 689-501520
50x2 50 M10 46 44 34 22 85 689-502010
50x2 50 M12 46 44 34 22 85 689-502012
50x2 50 M16 46 44 34 22 85 689-502016
50x2 50 M20 46 44 34 22 85 689-502020
50x2.5 50 M10 45 44 34 22 85 689-502510
50x2.5 50 M12 45 44 34 22 85 689-502512
50x2.5 50 M16 45 44 34 22 85 689-502516
50x2.5 50 M20 45 44 34 22 85 689-502520
50x3 50 M10 44 44 34 22 85 689-503010
50x3 50 M12 44 44 34 22 85 689-503012
50x3 50 M16 44 44 34 22 85 689-503016
50x3 50 M20 44 44 34 22 85 689-503020
6
6
'
/ /
/
:'6
+ROORZ WXEH
/HYHOOLQJ
)RRW
:'6
([DPSOH
P = Maximum load in kN
(1 kN = 102 kg Approx)
T = Tube size x wall thickness
