SECTION 7 - LEVELLING FEET WDS
WDS
7-47 & 0845 606 66 77 • : • *

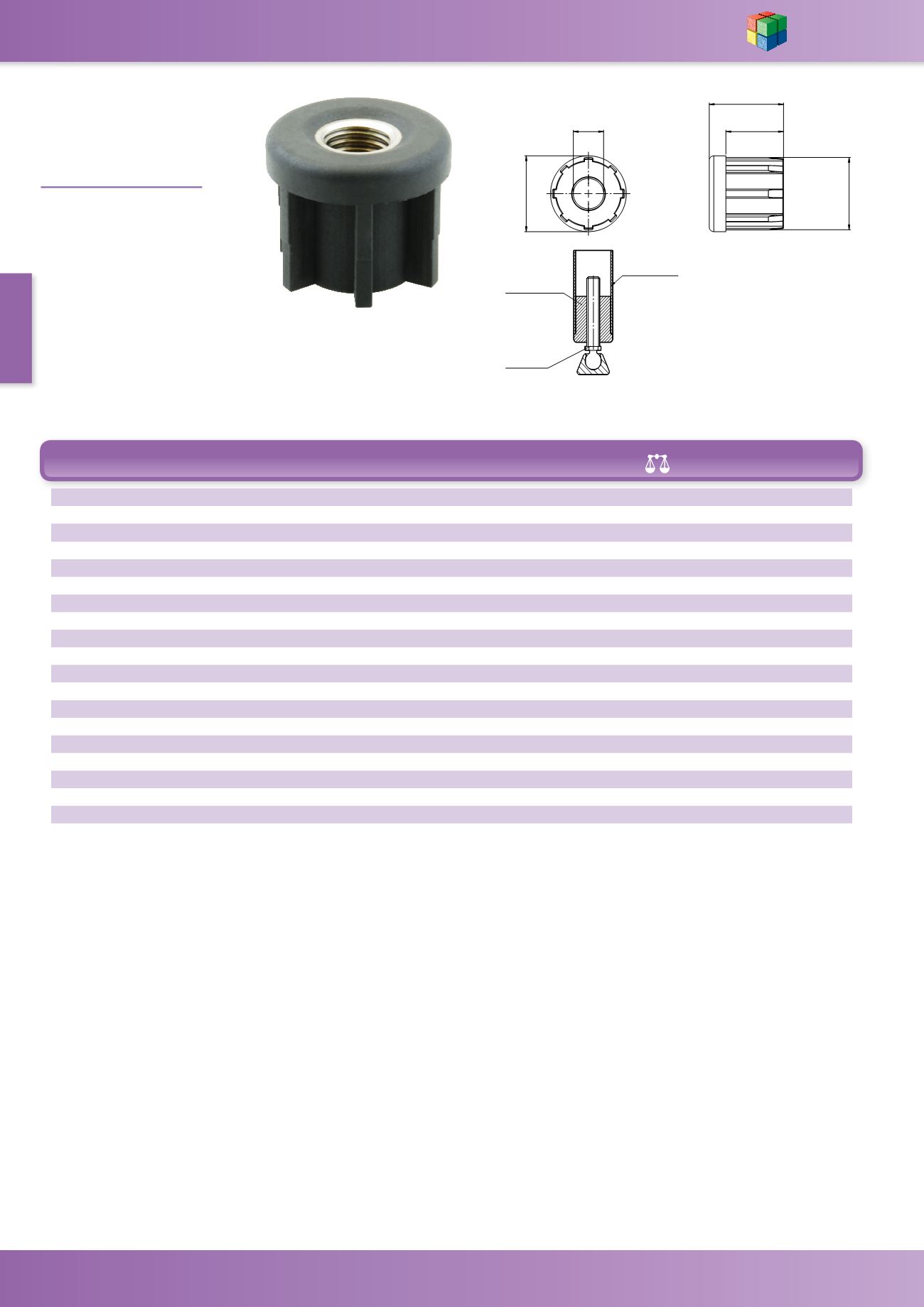

Round Hole Tube
Inserts
WDS 690
MATERIAL -
Glass Filled Nylon
Insert - Brass, Nickel Plated
'
' '
/
/
:'6
+ROORZ WXEH
/HYHOOLQJ
)RRW
:'6
([DPSOH
7 7XEH VL]H [ ZDOO WKLFNQHVV
3 0D[LPXP ORDG LQ N1
N1 NJ DSSUR[
D2 D D1 L L1 T (g) WDS No.
M8 30 28 32 28 30 x 1 25 690-301008
M10 30 28 32 28 30 x 1 25 690-301010
M12 30 28 32 28 30 x 1 25 690-301012
M16 30 28 32 28 30 x 1 25 690-301016
M8 38.1 35.1 42 34 38.1 x 1.5 48 690-381508
M10 38.1 35.1 42 34 38.1 x 1.5 48 690-381510
M12 38.1 35.1 42 34 38.1 x 1.5 48 690-381512
M16 38.1 35.1 42 34 38.1 x 1.5 48 690-381516
M10 42.4 39.4 42 34 42.4 x 1.5 52 690-421510
M12 42.4 39.4 42 34 42.4 x 1.5 52 690-421512
M16 42.4 39.4 42 34 42.4 x 1.5 52 690-421516
M20 42.4 39.4 42 34 42.4 x 1.5 52 690-421520
M10 48.3 45.3 42 34 48.3 x 1.5 60 690-481510
M12 48.3 45.3 42 34 48.3 x 1.5 60 690-481512
M16 48.3 45.3 42 34 48.3 x 1.5 60 690-481516
M20 48.3 45.3 42 34 48.3 x 1.5 60 690-481520
M12 50.8 47.8 42 34 50.8 x 1.5 70 690-511512
M16 50.8 47.8 42 34 50.8 x 1.5 70 690-511516
M20 50.8 47.8 42 34 50.8 x 1.5 70 690-511520
