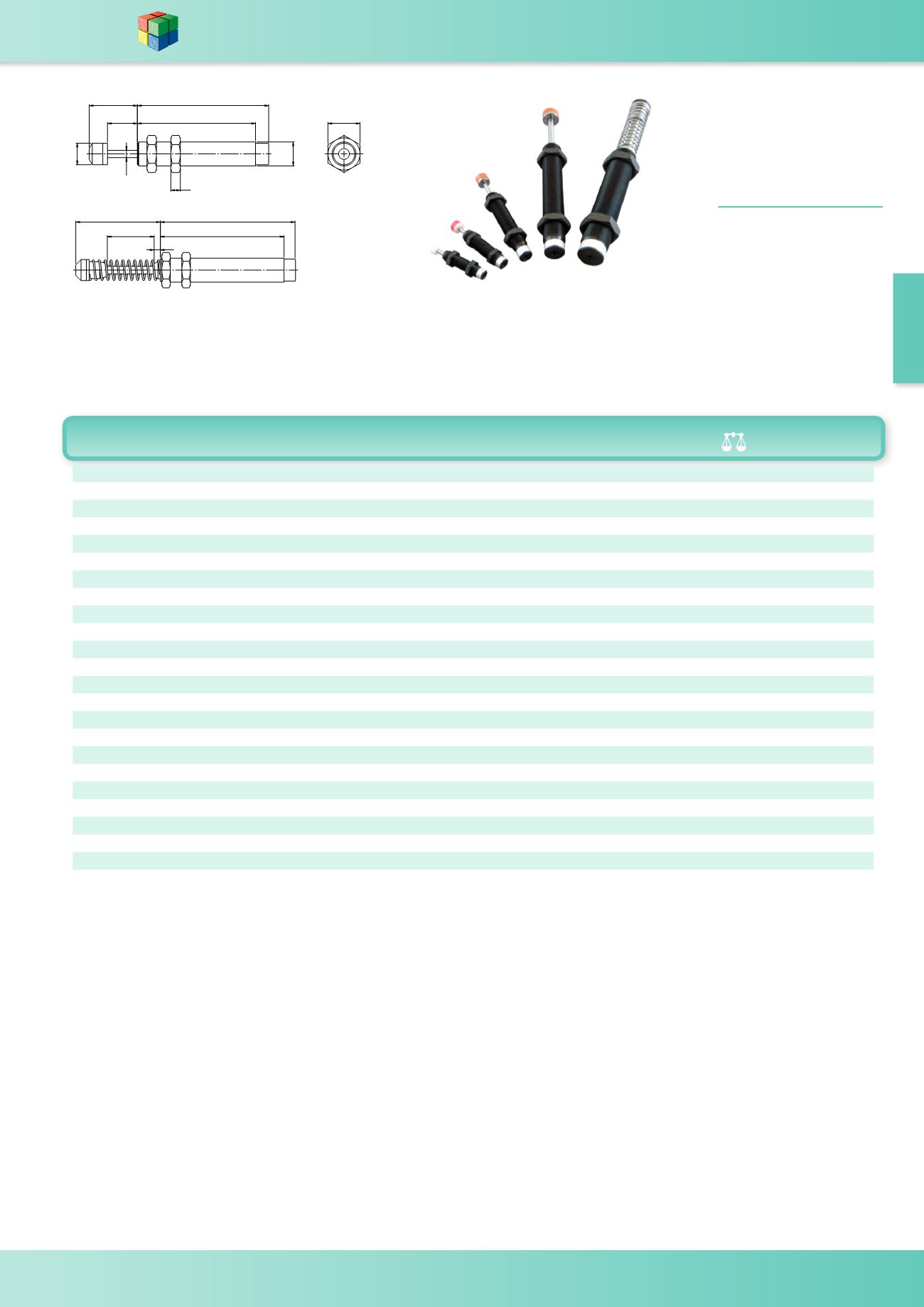

SECTION 15 - SHOCK ABSORBERS WDS
& 0845 606 66 77 • : • * 15-2
WDS
Self
Compensating
Shock Absorber
WDS 559
MATERIAL -
Body: Steel
End Cap: See Table
Operating Temperature: -10°C
to 85°C
V = Velocity (m/s)
MEM = Max Effective Mass (kg)
MEC= Maximum Energy per cycle
(Nm)
MEH = Maximum Energy per hour
(Nm/hr)
A B C D E F H K L L1 Cap V MEM MEC MEH (g) WDS No.
M10x1.0 8 9 3 14 - 14 4 43 38 Nylon 3.0 2 4 14400 23 559-10081P
M10x1.0 8 9 3 14 - 14 4 43 38 Rubber 1.5 4 4 14400 23 559-10082P
M10x1.0 8 9 3 14 - 14 4 43 38 Rubber 0.8 9 4 14400 23 559-10083P
M12x1.0 10 10 3 19 - 14 4 48 45 Rubber 3.0 5 5 18800 32 559-12101P
M12x1.0 10 10 3 19 - 14 4 48 45 Rubber 1.5 10 5 18800 32 559-12102P
M12x1.0 10 10 3 19 - 14 4 48 45 Rubber 0.8 30 5 18800 32 559-12103P
M14x1.5 12 12 4 24 - 19 6 78 67 Rubber 3.0 8 15 36000 96 559-14121P
M14x1.5 12 12 4 24 - 19 6 78 67 Rubber 1.5 50 15 36000 96 559-14122P
M14x1.5 12 12 4 24 - 19 6 78 67 Rubber 0.8 100 15 36000 96 559-14123P
M14x1.5 20 12 4 32 - 19 6 83 72 Rubber 3.0 12 25 48000 100 559-14201P
M14x1.5 20 12 4 32 - 19 6 83 72 Rubber 1.5 80 25 48000 100 559-14202P
M14x1.5 20 12 4 32 - 19 6 83 72 Rubber 0.8 160 25 48000 100 559-14203P
M20x1.5 20 18 6 40 - 26 8 110 99 Rubber 3.5 30 40 48000 237 559-20201P
M20x1.5 20 18 6 40 - 26 8 110 99 Rubber 2.0 200 40 48000 237 559-20202P
M20x1.5 20 18 6 40 - 26 8 110 99 Rubber 1.0 700 40 48000 237 559-20203P
M20x1.5 20 18 6 65 - 26 8 140 128 Rubber 3.5 50 60 66000 298 559-20501P
M20x1.5 20 18 6 65 - 26 8 140 128 Rubber 2.0 400 60 66000 298 559-20502P
M20x1.5 20 18 6 65 - 26 8 140 128 Rubber 1.0 1200 60 66000 298 559-20503P
M25x1.5 25 22 8 40 - 32 9 112 100 Rubber 4.0 200 80 60000 363 559-25251P
M25x1.5 25 22 8 40 - 32 9 112 100 Rubber 2.5 600 80 60000 363 559-25252P
M25x1.5 25 22 8 40 - 32 9 112 100 Rubber 1.0 1000 80 60000 363 559-25253P
M25x1.5 50 22 8 88 6.5 32 9 142 130 Rubber 4.0 15 98 98000 489 559-25501P
M25x1.5 50 22 8 88 6.5 32 9 142 130 Rubber 2.5 40 98 98000 489 559-25502P
M25x1.5 50 22 8 88 6.5 32 9 142 130 Rubber 1.0 160 98 98000 489 559-25503P
L
L1 B
E
C A
D K Type A
B
F
E L
L1
Type B
H
