SECTION 15 - SHOCK ABSORBERS
WDS
WDS
www.wdsltd.co.uk15-1
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*

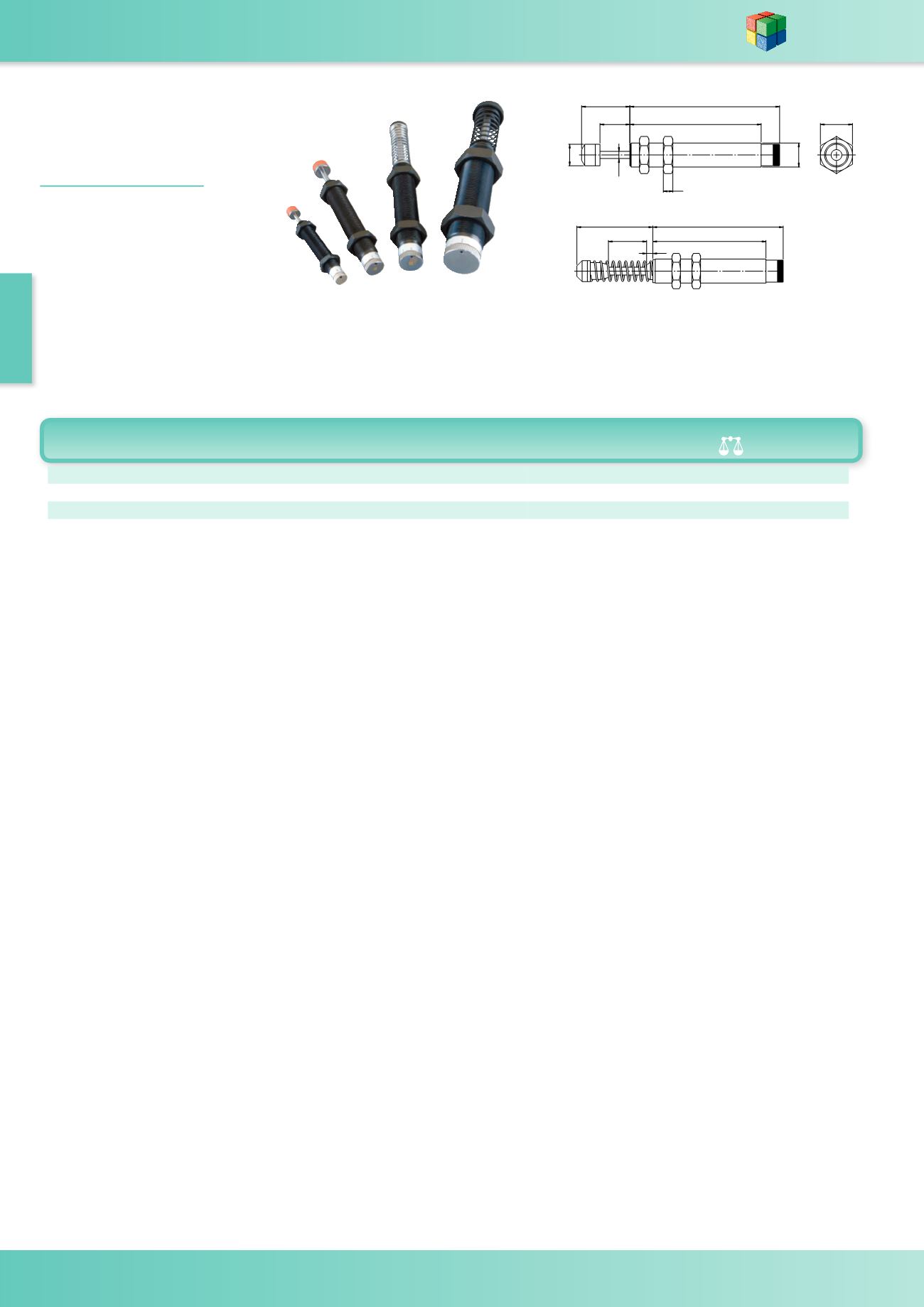

sales@wdsltd.co.ukAdjustable Shock
Absorber
WDS 559
MATERIAL
-
Body: Steel
End Cap: Rubber
Operating Temperature: -10°C
to 85°C
V = Velocity (m/s)
MEM = Max Effective Mass (kg)
MEC= Maximum Energy per
cycle (Nm)
MEH = Maximum Energy per
hour (Nm/hr)
A
B C D E F
H K L
L1 V MEM MEC MEH
(g)
WDS No.
M14x1.5 16 12 4 28 -
19 6 86 72
3.2 120 22 26400 38 553-208
M20x1.5 25 18 6 40 -
27 8 126 110 3.6 312 39 30000 69 553-210
M25x1.5 40 22 8 80 6.5 32 9 136 118 3.6 700 100 84000 105 553-212
M36x1.5 50 36 10 84 14 45 15 157 135 3.2 1400 150 108000 261 553-216
L
L1
B
E
C
A
D
K
Type A
B
F
E
L
L1
Type B
H
