SECTION 14 - GAS STRUTS & END FITTINGS WDS
& 0845 606 66 77 • : • * 14-18
WDS
&
*
+
-
6 D I
7
%
(
'
)
$
+
&
*
+
-
6 D I
7
%
(
'
)
$
+

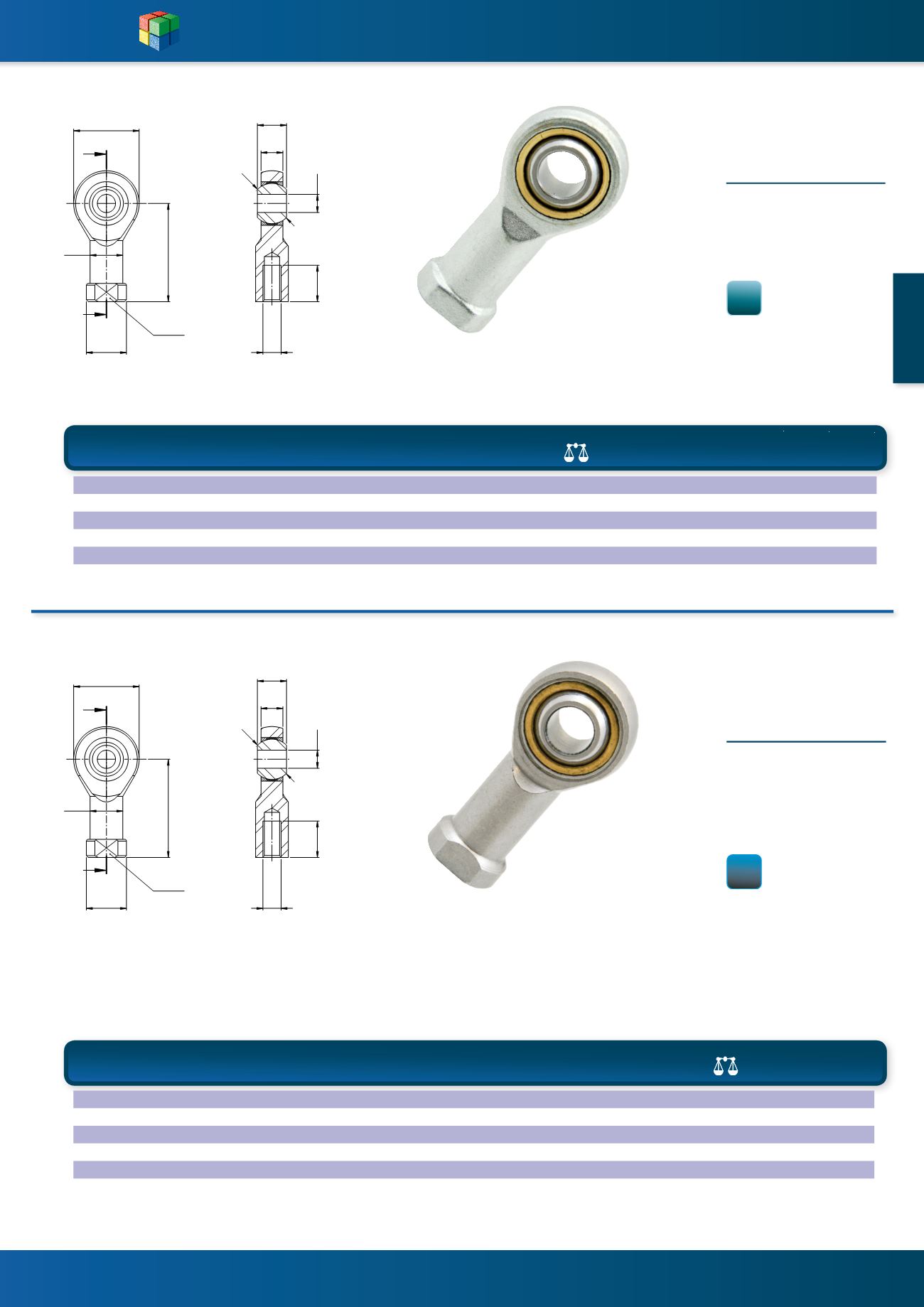

Rod End (Rose)
Joint
WDS 552
MATERIAL -
Body - Mild Steel, Zinc Plated
Ball - EN31 Hardened to
HRC58-64 Ground and Polished
Race - Brass with Bonded PTFE
Liner
Maximum Swivel - 13°
A B C D E F G H J S T F1 F2 (g)
Right Hand Thread
WDS No
Left Hand Thread
WDS No.
M5 5 27 8 6 11.1 18 9 11 9 10 580 611 20 552-205 552-205L
M6 6 30 9 6.8 12.7 20 10 13 11 12 730 780 30 552-206 552-206L
M8 8 36 12 9 15.9 24 12.5 16 14 16 1180 1315 30 552-208 552-208L
M10 10 43 14 10.5 19 28 15 19 17 20 1470 1835 50 552-210 552-210L
M12 12 50 16 12 22.2 32 17.5 22 19 22 1730 2440 120 552-212 552-212L
A B C D E F G H J S T F1 F2
(g)
WDS No.
M5 5 27 8 6 11.1 18 9 11 9 10 580 611 20 852-205
M6 6 30 9 6.8 12.7 20 10 13 11 12 730 780 30 852-206
M8 8 36 12 9 15.9 24 12.5 16 14 16 1180 1315 30 852-208
M10 10 43 14 10.5 19 28 15 19 17 20 1470 1835 50 852-210
M12 12 50 16 12 22.2 32 17.5 22 19 22 1730 2440 120 852-212
Rod End (Rose)
Joint
WDS 852
MATERIAL -
Body - 304 Stainless Steel
Ball - 440C Stainless Steel
Hardened to HRC56, Ground and
Polished
Race - Brass with Bonded PTFE
Liner
Maximum Swivel - 13°
ZP
304
Note:
F1 = Dynamic Load kN
F2 = Static Load kN
Note:
F1 = Dynamic Load kN
F2 = Static Load kN
