SECTION 14 - GAS STRUTS & END FITTINGS WDS
& 0845 606 66 77 • : • * 14-14
WDS

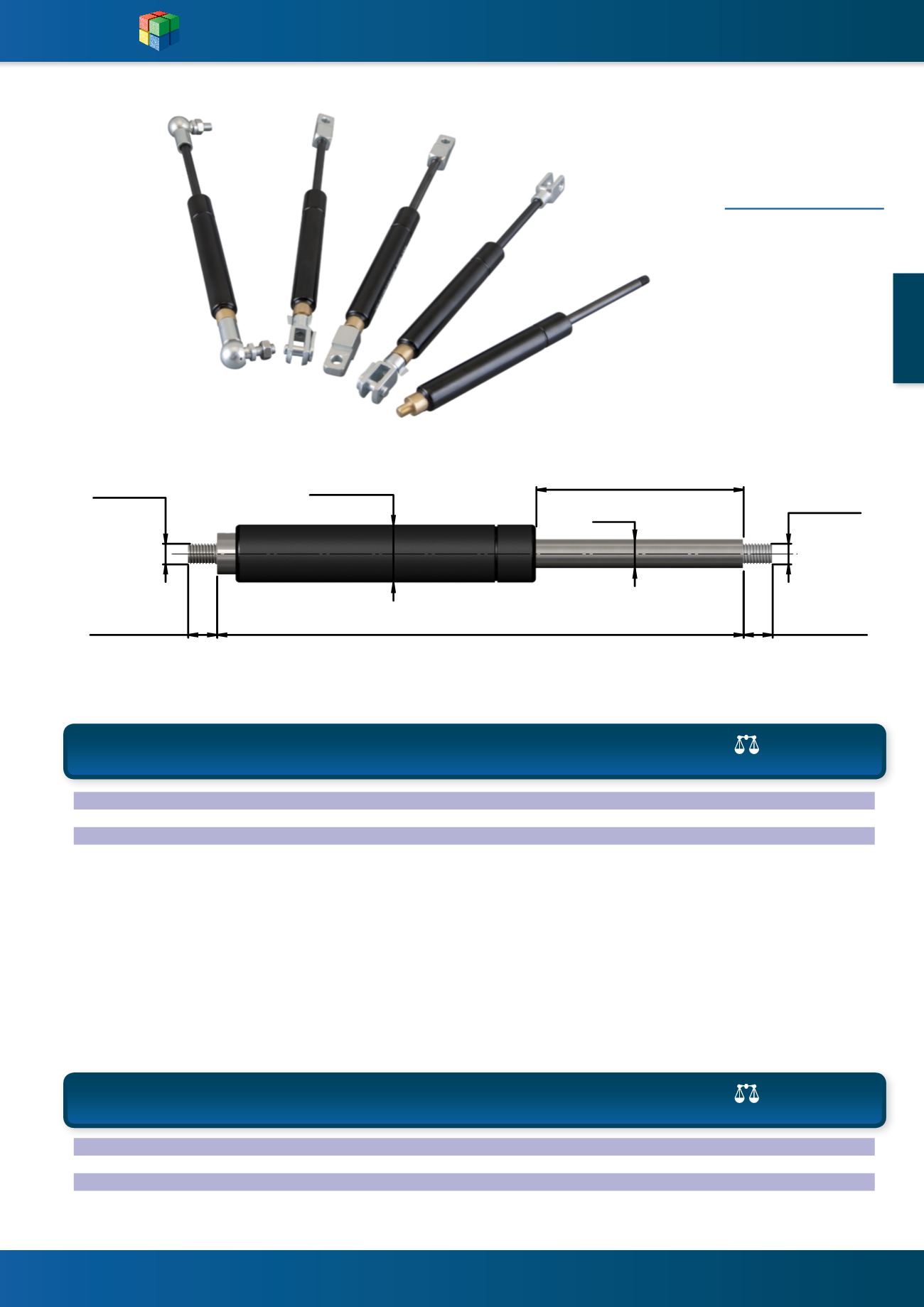

Fixed Force Gas
Struts with End
Fittings
WDS 550
MATERIAL -
Body – Steel, black powder
coated
Rod – Steel, black nitride
hardened
Cylinder Stroke
Length
Thread
Length
Thread
Length
Rod
Thread Thread
Material
Rod
mm
Cylinder
mm
Stroke -
Max mm Length mm Threads mm Force N End Fittings - 2 Pieces Included
(g)
WDS No.
Steel 6 15 200 2* Stoke +52 M6*9mm 20-400N 551-206/551-406/551-706 275 550-0615FX
Steel 8 19 250 2* Stroke +52 M6*9mm 50-700N 551-206/551-406/551-706 450 550-0819FX
Steel 10 22 400 2* Stroke +57 M8*12mm 100-1200N 551-208/551-408/551-708 916 550-1022FX
Steel 14 28 500 2* Stroke +54 M10*14mm 200-2500N 551-210/551-410/551-710 1873 550-1428FX
The WDS Steel Fixed Force Gas Struts are offered as a cost effective solution for applications requiring large quantities (100pcs MOQ) of
specific size, length and stroke with a fixed force value. We can work from a drawing or from details entered into our online enquiry form
which can be accessed on the WDS website.
We advise that the samples option is chosen first. This way, two samples will be supplied in around two weeks to enable testing on the
application before committing to the bulk quantity. The cost of the samples is refundable against the bulk order for the same. If your
requirement is below 100pcs we suggest that the WDS range of adjustable gas struts offers a more convenient solution.
We will contact you to confirm the details provided and understand your delivery requirements.
Material
Rod
mm
Cylinder
mm
Stroke -
Max mm Length mm Threads mm Force N End Fittings - 2 Pieces Included
(g)
WDS No.
Steel 6 15 200 2* Stoke +52 M6*9mm 20-400N 551-206/551-406/551-706 275 550-0615SP
Steel 8 19 250 2* Stroke +52 M6*9mm 50-700N 551-206/551-406/551-706 450 550-0819SP
Steel 10 22 400 2* Stroke +57 M8*12mm 100-1200N 551-208/551-408/551-708 916 550-1022SP
Steel 14 28 500 2* Stroke +54 M10*14mm 200-2500N 551-210/551-410/551-710 1873 550-1428SP
