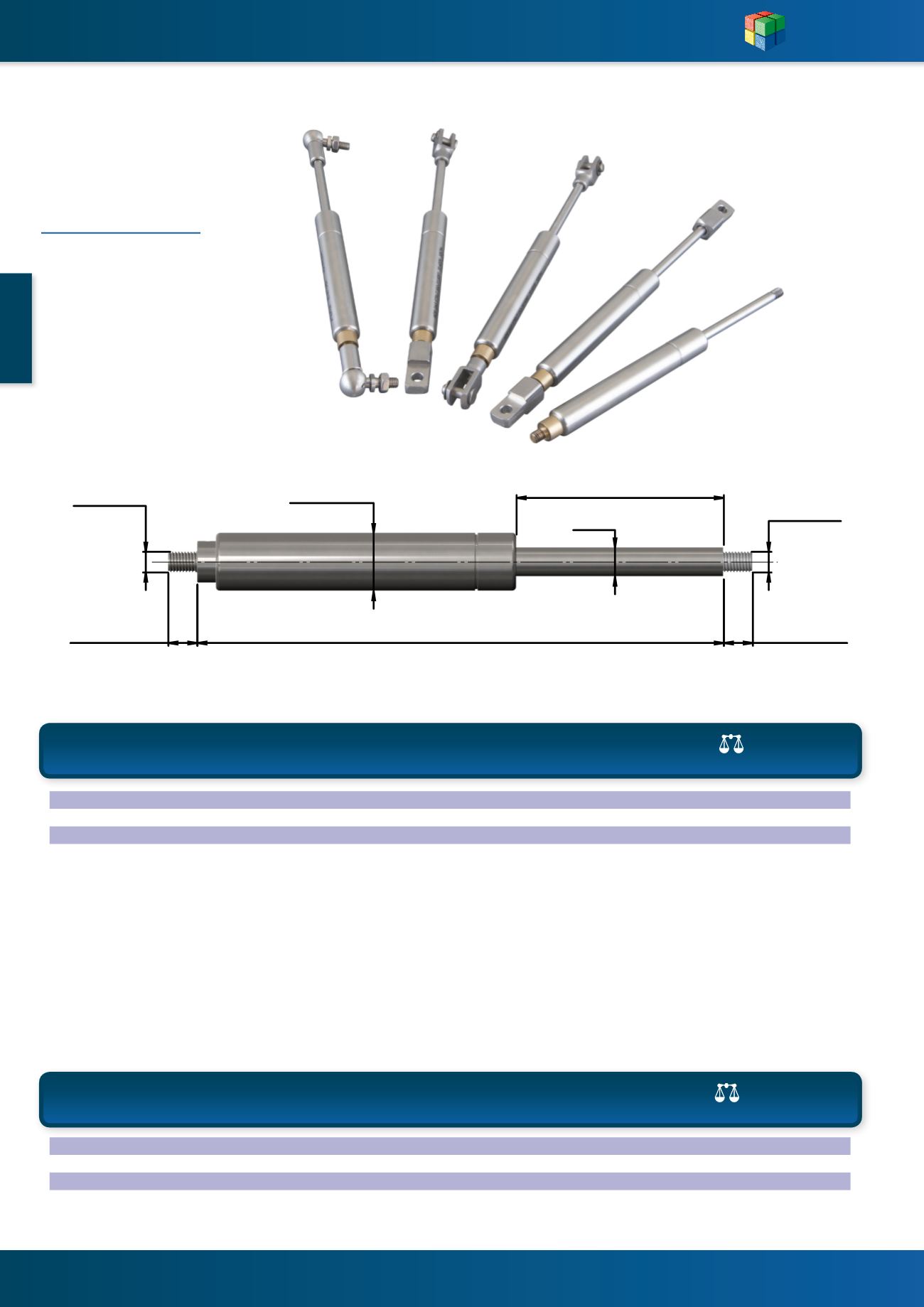

Stainless Steel
Fixed Force Gas
Struts with End
Fittings
WDS 850
MATERIAL -
Body – 316 stainless steel
Rod – 316 stainless steel,
hardened
Cylinder Stroke
Length
Thread
Length
Thread
Length
Rod
Thread Thread
Material
Rod
mm
Cylinder
mm
Stroke -
Max mm Length mm Threads mm Force N End Fittings - 2 Pieces Included
(g)
WDS No.
316 St Steel 6 15 200 2* Stoke +52 M6*9mm 20-400N 851-206/851-406/851-706 275 850-0615FX
316 St Steel 8 19 250 2* Stroke +52 M6*9mm 50-700N 851-206/851-406/851-706 450 850-0819FX
316 St Steel 10 22 400 2* Stroke +57 M8*12mm 100-1200N 851-208/851-408/851-708 916 850-1022FX
316 St Steel 14 28 500 2* Stroke +54 M10*14mm 200-2500N 851-210/851-410/851-710 1873 850-1428FX
Material Rod
mm
Cylinder
mm
Stroke -
Max mm
Length mm Threads mm Force N End Fittings - 2 Pieces Included
(g)
WDS No.
316 St Steel 6 15 200 2* Stoke +52 M6*9mm 20-400N 851-206/851-406/851-706 275 850-0615SP
316 St Steel 8 19 250 2* Stroke +52 M6*9mm 50-700N 851-206/851-406/851-706 450 850-0819SP
316 St Steel 10 22 400 2* Stroke +57 M8*12mm 100-1200N 851-208/851-408/851-708 916 850-1022SP
316 St Steel 14 28 500 2* Stroke +54 M10*14mm 200-2500N 851-210/851-410/851-710 1873 850-1428SP
The WDS Steel Fixed Force Gas Struts are offered as a cost effective solution for applications requiring large quantities (100pcs MOQ) of
specific size, length and stroke with a fixed force value. We can work from a drawing or from details entered into our online enquiry form
which can be accessed on the WDS website.
We advise that the samples option is chosen first. This way, two samples will be supplied in around two weeks to enable testing on the
application before committing to the bulk quantity. The cost of the samples is refundable against the bulk order for the same. If your
requirement is below 100pcs we suggest that the WDS range of adjustable gas struts offers a more convenient solution.
We will contact you to confirm the details provided and understand your delivery requirements.
