SECTION 21 - SPENCER FRANKLIN HYDRACLAMP, HYDRAULICS
AND PNEUMATICS WDS
WDS
21-5 & 0845 606 66 77 • : • *

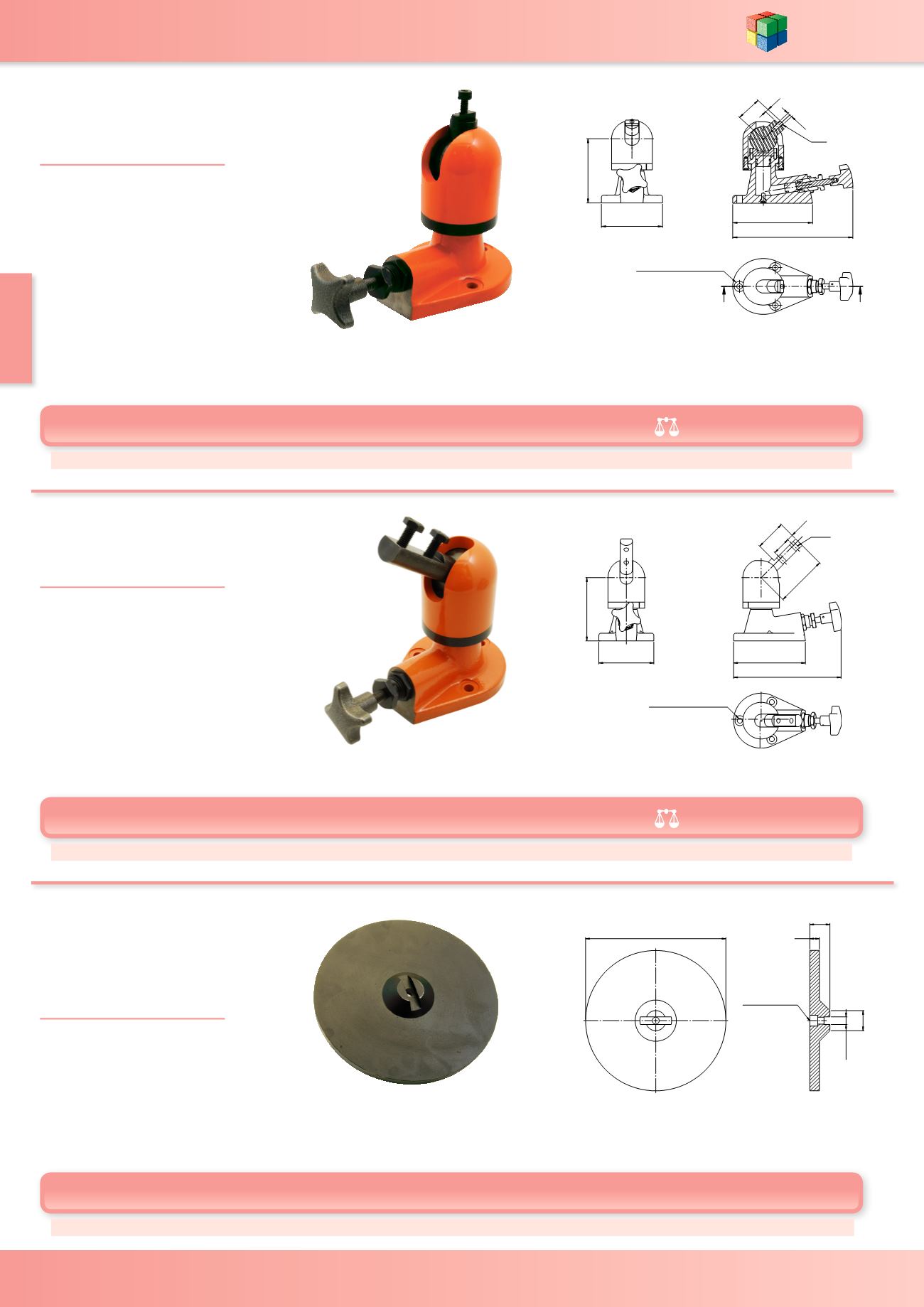

Hydraclamps
SF-1400M
TECHNICAL INFORMATION -
Senior Type Hydraulic Operation
Maximum loading 45kg 300mm from
Ball Centre at 45°
For heavier loading see SF-1440M
For 178mm Dia Face Plate
please see SF-1405
A B C D Seal Kit (kg) WDS No.
131 114 149 223 SF-4776 5.5 SF-1400M
$
%
KROHV PP GLD
RQ PP SFG
&
'
0
A B C D E WDS No.
177.8 12.7 25.4 25.4 9.55 SF-1405M
Face Plate for
SF-1400M &
SF-1401M
SF-1405M
TECHNICAL INFORMATION -
178mm DIA FACE PLATE Type
SF1405M
This is the most useful general
purpose adaptor for the use either
as a direct holder for work or as a
suitable base on which to mount an
existing fixture
Hydraclamps
SF-1420M
TECHNICAL INFORMATION -
Senior Type Hydraulic Operation
Maximum loading 45kg 300mm from
Ball Centre at 45°
For heavier loading see SF-1440M
For 178mm Dia Face Plate
please see SF-1405
A B C D Seal Kit (kg) WDS No.
131 114 149 223 SF-4776 5.5 SF-1420M
%
$
&
'
0
KROHV PP GLD
RQ PP SFG
%
&
'
( 6ORW
7R VXLW 0
FDSKHDG VFUHZ
$
A pre-load sleeve is provided which
controls the pressure release and
enables any desired degree of
sustained pressure to be maintained
to form a permanent partial lock if
required.
A pre-load sleeve is provided which
controls the pressure release and
enables any desired degree of
sustained pressure to be maintained
to form a permanent partial lock if
required.
Refer to page 21-47 for Oil Grades
Refer to page 21-47 for Oil Grades
