SECTION 21 - SPENCER FRANKLIN HYDRACLAMP, HYDRAULICS
AND PNEUMATICS WDS
& 0845 606 66 77 • : • * 21-6
WDS
A B C D Seal Kit (g) WDS No.
154 114 149 224 SF-4776 9.9 SF-1440M
PowRlock

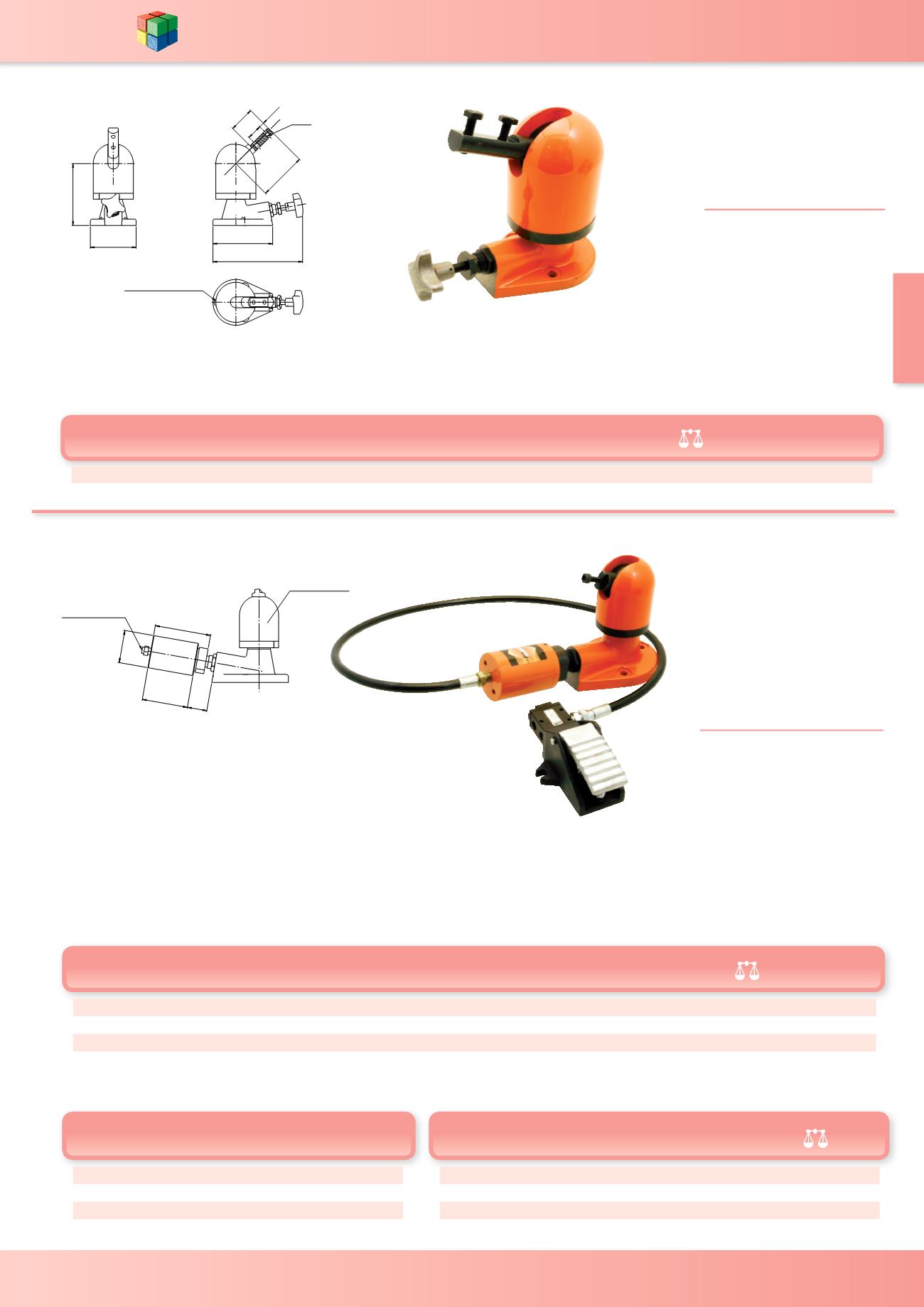

Hydraclamp - Super
Senior Type
SF-1440M
TECHNICAL INFORMATION -
The super senior Hydraclamp is
hand screw operated permitting
pressure to be readily applied or
released in accordance with the
requirements of the load. A pre-load
sleeve is provided which controls
the pressure release and enables
any desired degree of sustained
pressure to be maintained to form a
permanent partial lock if required.
Max Loading - 150kg 300mm from
ball centre at 45°
$
%
'
&
0
KROHV PP GLD
RQ PP SFG
Hydraclamp Senior
Type
Conversion Kit to convert Manual to
Foot Operated Spare Parts
SF-1401M
SF-1421M
SF-1441M
TECHNICAL INFORMATION -
Hydraulic Operation Both hands
are free to manipulate the work
mounted on Senior Hydraclamp
by the direct coupling of an
air-hydraulic booster. This gives
complete control from a foot pedal.
Two independent safety factors are
incorporated. They ensure that the
work will stay locked in the event of
sudden failure of the air supply or
under a pre-determined degree of
sustained pressure if the foot pedal
is operated in error.
A B C D Type MAX Loading 300mm
from ball centre
Clamp
type
Seal Kit for
Clamp (kg) WDS No.
63.5 109 89 38 Full Unit-Short Ball Arm 45kg SF-1400M SF-4776 8.5 SF-1401M
63.5 109 89 38 Full unit-Long Ball arm 45kg SF-1420M SF-4776 8.5 SF-1421M
63.5 109 89 38 Full unit-Long Ball arm 150kg SF-1440M SF-4776 12.5 SF-1441M
Kit No. From To
SF-4801 SF-1400M SF-1401M
SF-4801 SF-1420M SF-1421M
SF-4801 SF-1440M SF-1441M
WDS No Type
Seal Kit for
Booster (kg)
SF-1490 Booster Only SF-4777 1.9
SF-4256 Foot Pedal NA 1.5
SF-4923 Silencer For Pedal NA 0.01
SF-4901/48 Hose Assy NA 0.24
$
&
%
'
%63 ,1/(7
6HH 6) 0
6) 0 RU
6) 0
IRU GHWDLOV
6833/,(' &203/(7( :,7+
67$1'$5' )227 3('$/
$1' +26(
%2267(5 $9$,/$%/( $6 $ 6(3(5$7( 81,7 6) 0
5(3/$&(0(17 3('$/ 6)
Refer to page 21-47 for Oil Grades
Refer to page 21-47 for Oil Grades
