SECTION 27 - METAL PROFILES WDS
WDS
27-1 & 0845 606 66 77 • : • *

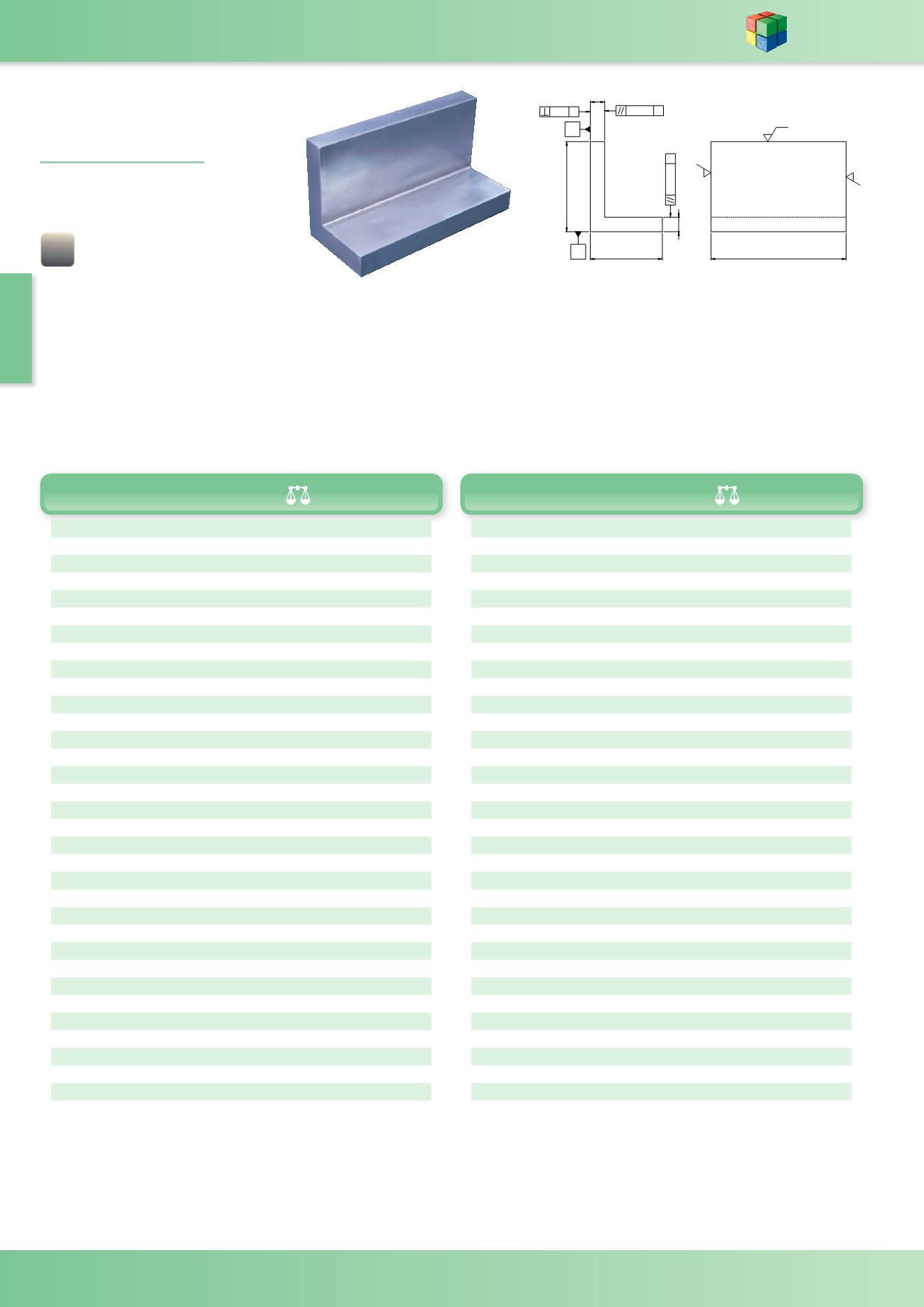

Unequal L-Section
WDS 935
MATERIAL -
Cast iron
BS EN 1561 1997-EN/GJL-200
(BS 1452 Gr 220)
See 912 Series for Heavy Duty
Cast Iron Un Equal L-Section or
913 Series for Cast Iron Equal
L-Section, Aluminium L-Section
944 Series
B H S L (kg) WDS No.
40 50 12 100 0.7 935-401100
40 50 12 200 1.3 935-401200
40 50 12 300 2 935-401300
40 50 12 400 2.5 935-401400
40 50 12 500 3 935-401500
40 50 12 800 5 935-401800
40 50 12 1000 6 935-4011000
50 63 14 100 1 935-402100
50 63 14 200 2 935-402200
50 63 14 300 3 935-402300
50 63 14 400 4 935-402400
50 63 14 500 5 935-402500
50 63 14 600 6 935-402600
63 80 16 100 1.5 935-403100
63 80 16 200 2.9 935-403200
63 80 16 300 4.4 935-403300
63 80 16 400 5.8 935-403400
63 80 16 500 7.3 935-403500
63 80 16 600 8.8 935-403600
80 100 20 100 2.3 935-404100
80 100 20 200 4.6 935-404200
80 100 20 300 6.9 935-404300
80 100 20 400 9.2 935-404400
80 100 20 500 11.5 935-404500
80 100 20 600 13.8 935-404600
80 100 20 700 16.1 935-404700
80 100 20 800 18.4 935-404800
100 125 22 100 3.2 935-405100
100 125 22 200 6.4 935-405200
100 125 22 300 9.6 935-405300
100 125 22 400 12.9 935-405400
100 125 22 500 16 935-405500
100 125 22 600 19.3 935-405600
100 125 22 700 22.5 935-405700
B H S L (kg) WDS No.
100 125 22 800 25.8 935-405800
125 160 25 100 4.7 935-406100
125 160 25 200 9.4 935-406200
125 160 25 300 14 935-406300
125 160 25 400 18.7 935-406400
125 160 25 500 23 935-406500
125 160 25 600 28.1 935-406600
125 160 25 700 32.7 935-406700
125 160 25 800 37.4 935-406800
160 200 32 100 7.6 935-407100
160 200 32 200 15.1 935-407200
160 200 32 300 22.7 935-407300
160 200 32 400 30.2 935-407400
160 200 32 500 38 935-407500
160 200 32 600 45.4 935-407600
160 200 32 700 53 935-407700
160 200 32 800 60.4 935-407800
200 250 36 100 10.7 935-408100
200 250 36 200 21.4 935-408200
200 250 36 300 32.2 935-408300
200 250 36 400 42.8 935-408400
200 250 36 500 53.5 935-408500
200 250 36 600 64.4 935-408600
200 250 36 700 75 935-408700
200 250 36 800 85.6 935-408800
250 315 38 100 14.4 935-409100
250 315 38 200 28.8 935-409200
250 315 38 300 43.2 935-409300
250 315 38 400 57.6 935-409400
250 315 38 500 72 935-409500
250 315 38 600 86.4 935-409600
250 315 38 700 101 935-409700
250 315 38 800 115 935-409800
+
%
6
6
$
% C $
$
%
/
7<3
CI
The ends of all cut sections are
supplied sawn such that they will
clean up to the lengths stated in this
catalogue.
