SECTION 2 - LOCATION & POSITIONING WDS
WDS
2-29 & 0845 606 66 77 • : • *

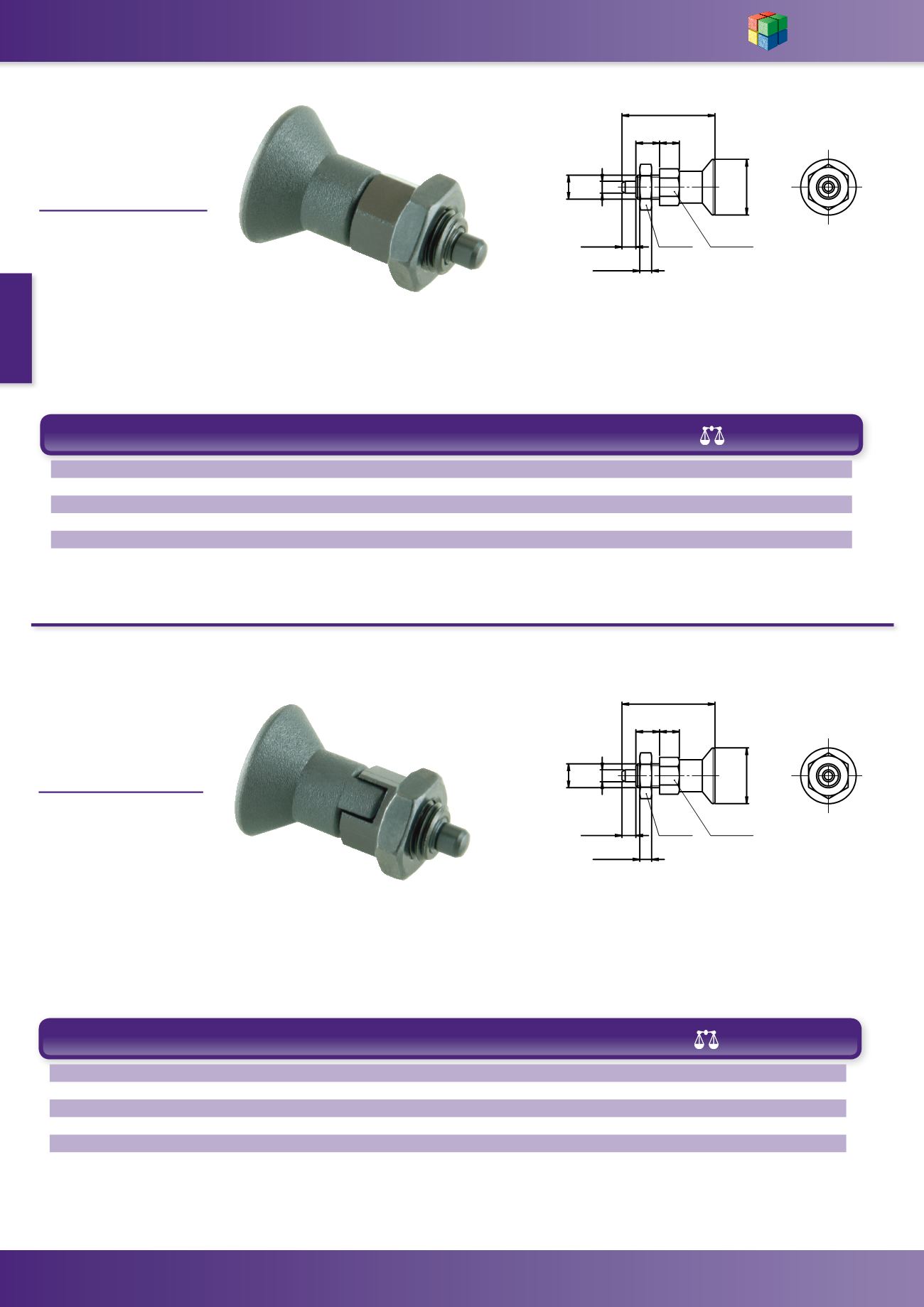

Compact Spring
Loaded Index Bolt
- Standard Type
WDS 722
MATERIAL -
Steel body and pin (pin
hardened)
Chemical black finish
Black thermoplastic knob
Supplied complete with Lock Nut
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D
D2
L2
L1 L3
L
L5
D1
S a/f S1 a/f
F1 = Initial Spring Force (kgf)
F2 = Final Spring Force (kgf)
D D1 D2 L L1 L2 L3 L5 S S1 P P1 (g) WDS No.
3 14 M6x0.75 25.5 6 3.5 5 3 10 8 0.4 1.0 5 722-206
4 18 M8x1.0 29.5 6 4 6 4 13 10 0.4 1.2 10 722-208
5 21 M10x1.0 34.5 8 5 7 5 17 13 0.5 1.2 21 722-210
6 25 M12x1.5 41.7 10 6 8 6 19 14 0.6 1.4 31 722-212
8 33 M16x1.5 54 12 8 10 8 24 19 1.4 2.8 70 722-216
10 33 M20x1.5 61 15 10 12 10 30 22 1.5 3.2 116 722-220
Compact Spring
Loaded Index Bolt
- Parking Type
WDS 722
MATERIAL -
Steel body and pin (pin
hardened)
Chemical black finish
Black thermoplastic knob
Supplied complete with Lock Nut
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L5 S S1 P P1 (g) WDS No.
3 14 M6x0.75 25.5 6 3.5 5 3 10 8 0.4 1.0 5 722-206P
4 18 M8x1.0 29.5 6 4 6 4 13 10 0.4 1.2 10 722-208P
5 21 M10x1.0 34.5 8 5 7 5 17 13 0.5 1.2 21 722-210P
6 25 M12x1.5 41.7 10 6 8 6 19 14 0.6 1.4 31 722-212P
8 33 M16x1.5 54 12 8 10 8 24 19 1.4 2.8 70 722-216P
10 33 M20x1.5 61 15 10 12 10 30 22 1.5 3.2 116 722-220P
D
D2
L2
L1 L3
L
L5
D1
S a/f S1 a/f
F1 = Initial Spring Force (kgf)
F2 = Final Spring Force (kgf)
