SECTION 2 - LOCATION & POSITIONING
WDS
WDS
www.wdsltd.co.uk2-31
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukStainless

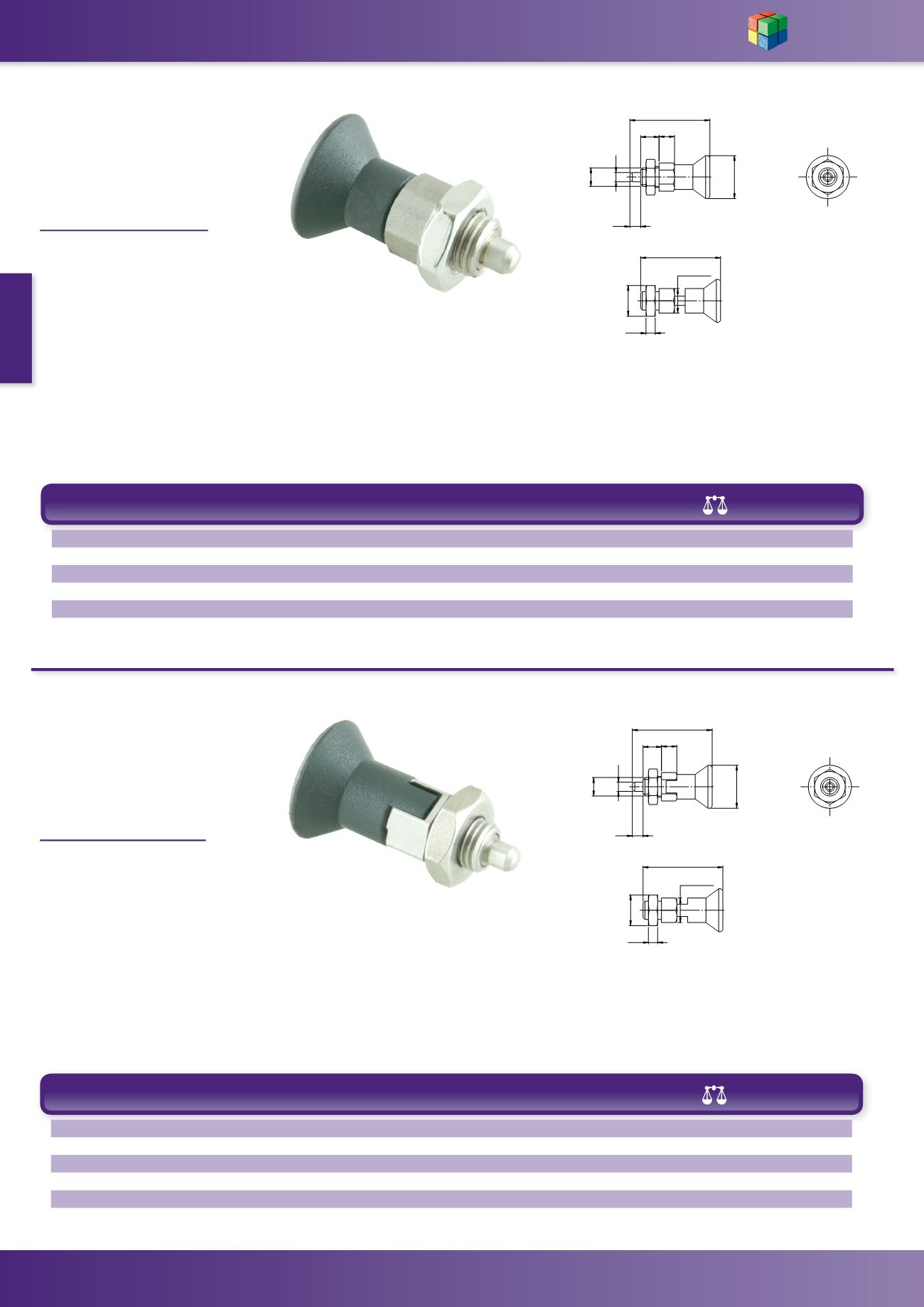

Compact Spring
Loaded Index Bolt
- Parking Type
WDS 844
MATERIAL
-
Body: Stainless Steel BS970 Gr
321S12
Pin: Stainless Steel BS970 Gr
420S45
Spring: Stainless Steel BS970 Gr
301S31
Black thermoplastic knob
Supplied complete with Lock Nut
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2
L
L1 L2 L3 L4 L5 S S1 P P1
(g)
WDS No.
3 14 M6x0.75 25.5 6 3.5 5 22 3 10 8 0.4 1.0
5
844-206P
4 18 M8x1.0 29.5 6
4
6 23.5 4 13 10 0.4 1.2
10
844-208P
5 21 M10x1.0 34.5 8
5
7 29.5 5 17 13 0.5 1.2
21
844-210P
6 25 M12x1.5 41.7 10 6
8 35.7 6 19 14 0.6 1.4
31
844-212P
8 33 M16x1.5 54 12 8 10 46 8 24 19 1.4 2.8
70
844-216P
10 33 M20x1.5 61 15 10 12 51 10 30 22 1.5 3.2 116 844-220P
S a/f
S1 a/f
L4
L5
D2
D
L1
L2
L3
L3
D1
L4 = Handle Retracted
F1 = Initial Spring Force (
F2 = Final Spring Force (
Stainless Compact
Spring Loaded
Index Bolt -
Standard Type
WDS 844
MATERIAL
-
Body: Stainless Steel BS970
Gr 321S12
Pin: Stainless Steel BS970
Gr 420S45
Spring: Stainless Steel BS970
Gr 301S31
Black thermoplastic knob
Supplied complete with Lock Nut
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2
L
L1 L2 L3 L4 L5 S S1 P P1
(g)
WDS No.
3 14 M6x0.75 25.5 6 3.5 5 22 3 10 8 0.4 1.0
5
844-206
4 18 M8x1.0 29.5 6
4
6 23.5 4 13 10 0.4 1.2
10
844-208
5 21 M10x1.0 34.5 8
5
7 29.5 5 17 13 0.5 1.2
21
844-210
6 25 M12x1.5 41.7 10 6
8 35.7 6 19 14 0.6 1.4
31
844-212
8 33 M16x1.5 54 12 8 10 46 8 24 19 1.4 2.8
70
844-216
10 33 M20x1.5 61 15 10 12 51 10 30 22 1.5 3.2 116
844-220
S a/f
S1 a/f
L4
L5
D2
D
L1
L2
L3
L3
D1
L4 = Handle Retracted
F1 = Initial Spring Force (
F2 = Final Spring Force (k
