WDS

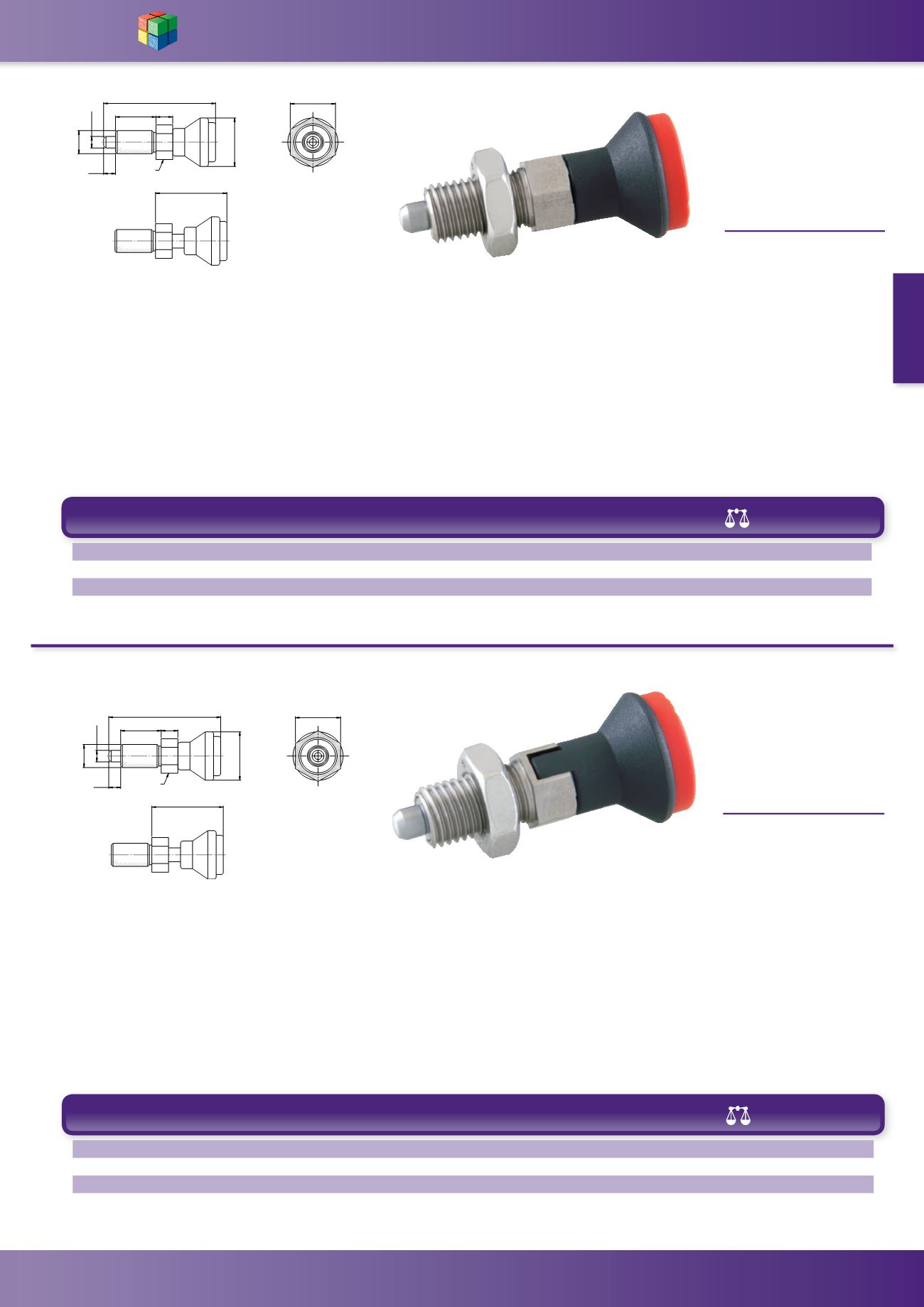

Stainless Spring
Loaded Index
Bolt - Red Knob
Standard Type
WDS 826
MATERIAL -
Body: Stainless Steel BS970 Gr
321S12
Pin: Stainless Steel BS970 Gr
420S45
Spring: Stainless Steel BS970
Gr 301S31
Red thermoplastic knob
Supplied complete with lock nut
See 654 Series for this part
in Steel
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L4 P P1 S (g) WDS No.
5 21 M10 x 1 47 17 5 7 33 0.5 1.2 13 26 826-201R
6 25 M12 x 1.5 56 20 6 8 39 0.7 1.7 14 38 826-202R
8 33 M16 x 1.5 74 26 8 10 51 1.6 3.5 19 88 826-203R
10 33 M20 x 1.5 80 28 10 12 55 1.4 3.9 22 86 826-204R
Stainless Spring
Loaded Index
Bolt - Red Knob
Parking Type
WDS 826
MATERIAL -
Body: Stainless Steel BS970 Gr
321S12
Pin: Stainless Steel BS970 Gr
420S45
Spring: Stainless Steel BS970
Gr 301S31
Red thermoplastic knob
Supplied complete with lock nut
See 654 Series for this part
in Steel
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L4 P P1 S (g) WDS No.
5 21 M10 x 1 47 17 5 7 33 0.5 1.2 13 25 826-201RP
6 25 M12 x 1.5 56 20 6 8 39 0.7 1.7 14 37 826-202RP
8 33 M16 x 1.5 74 26 8 10 51 1.6 3.5 19 85 826-203RP
10 33 M20 x 1.5 80 28 10 12 55 1.4 3.9 22 143 826-204RP
'
/ /
'
/
/
'
6 $ )
6
/
'
/ /
'
/
/
'
6 $ )
6
/
L4 - Handle Retracted
'
/ /
'
/
/
'
6 $ )
6
/
'
/ /
'
/
/
'
6 $ )
6
/
L4 - Handle Retracted
