SECTION 2 - LOCATION & POSITIONING
WDS
WDS
www.wdsltd.co.uk2-39
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*

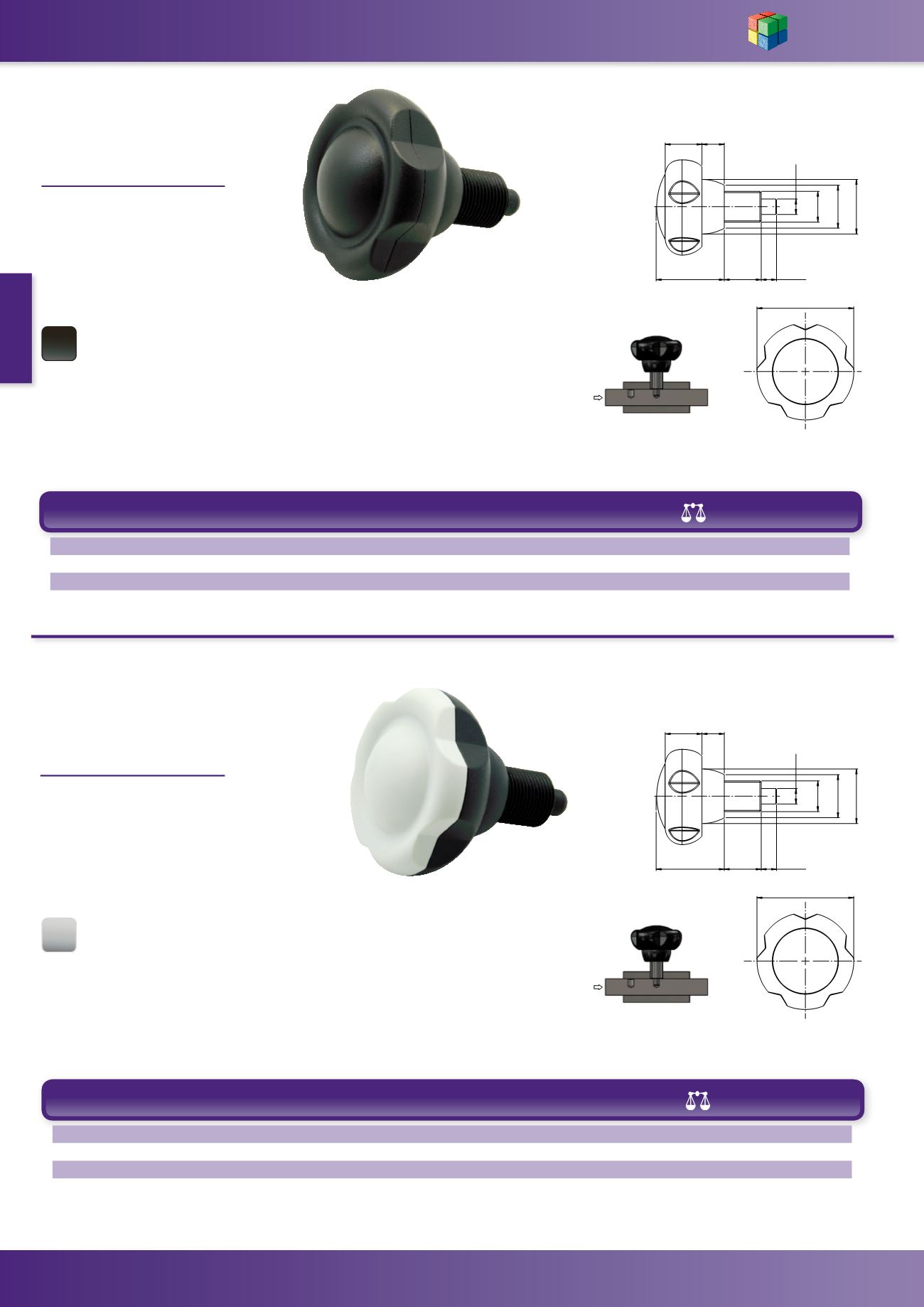

sales@wdsltd.co.ukLocating and Clamp
Grip Black/Grey
WDS 8480
MATERIAL
-
Body - Thermoplastic
Screw - Steel - chemical black
Locking pin - Steel hardened and
ground
This product facilitates Locating and
Clamping in one movement with a
spring loaded retractable pin
D
D1
D2
D3
D4
H
H1
H2
L
L1
(g)
WDS No.
5
50 M10 x 1 22.2 28.2 34.8 17.8 11.5 13
5
33
8480-202BG
6
50 M12 x 1.5 22.2 28.2 34.8 17.8 11.5 17
6
40
8480-204BG
8
63 M16 x 1.5 28 35.5 44 22.5 14.5 22
8
97
8480-206BG
10
63 M20 x 1.5 28 35.5 44 22.5 14.5 24
10
135
8480-208BG
'
'
'
+ +
/
/
'
+
'
'
'
+ +
/
/
'
+
'
'
'
'
+ +
/
/
'
+
'
Locating and Clamp
Grip Pale Grey
WDS 8480
MATERIAL
-
Body - Thermoplastic
Screw - Steel - chemical black
Locking pin - Steel hardened and
ground
This product facilitates Locating and
Clamping in one movement with a
spring loaded retractable pin
D
D1
D2
D3
D4
H
H1
H2
L
L1
(g)
WDS No.
5
50 M10 x 1 22.2 28.2 34.8 17.8 11.5 13
5
33
8480-202PG
6
50 M12 x 1.5 22.2 28.2 34.8 17.8 11.5 17
6
40
8480-204PG
8
63 M16 x 1.5 28 35.5 44 22.5 14.5 22
8
97
8480-206PG
10
63 M20 x 1.5 28 35.5 44 22.5 14.5 24
10
135
8480-208PG
'
'
'
+ +
/
/
'
+
'
'
'
+ +
/
/
'
+
'
'
'
'
+ +
/
/
'
+
'
RAL
7021
RAL
7035
