SECTION 2 - LOCATION & POSITIONING WDS
WDS
2-35 & 0845 606 66 77 • : • *

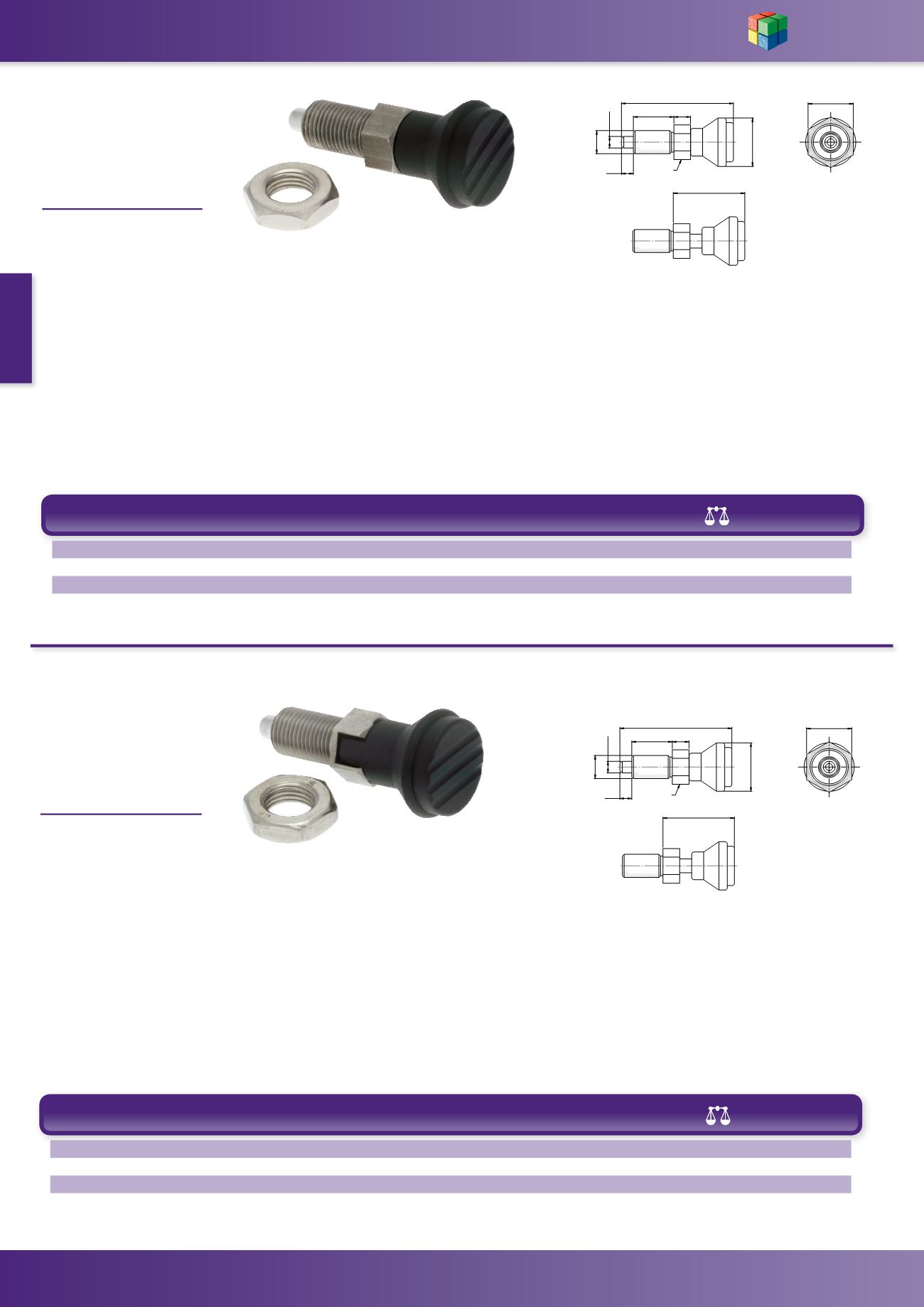

Spring Loaded
Index Bolt
Standard Type
WDS 826
MATERIAL -
Body: BS970 Gr 321S12
Pin: BS970 Gr 420S45
Spring: BS970 Gr 301S31
Black thermoplastic knob
Supplied complete with lock nut
See 654 Series for this part
in Steel
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L4 P P1 S S1 (g) WDS No.
5 21 M10 x 1 47 17 5 7 33 0.5 1.2 17 13 26 826-201
6 25 M12 x 1.5 56 20 6 8 39 0.7 1.7 19 14 38 826-202
8 33 M16 x 1.5 74 26 8 10 51 1.6 3.5 24 19 88 826-203
10 33 M20 x 1.5 80 28 10 12 55 1.4 3.9 30 28 86 826-204
'
/ /
'
/
/
'
6 $ )
6
/
'
/ /
'
/
/
'
6 $ )
6
/
L4 - Handle Retracted
Spring Loaded
Index Bolt
Parking Type
WDS 826
MATERIAL -
Body: BS970 Gr 321S12
Pin: BS970 Gr 420S45
Spring: BS970 Gr 301S31
Black thermoplastic knob
Supplied complete with lock nut
See 654 Series for this part
in Steel
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L4 P P1 S S1 (g) WDS No.
5 21 M10 x 1 47 17 5 7 33 0.5 1.2 17 13 25 826-201P
6 25 M12 x 1.5 56 20 6 8 39 0.7 1.7 19 14 37 826-202P
8 33 M16 x 1.5 74 26 8 10 51 1.6 3.5 24 19 85 826-203P
10 33 M20 x 1.5 80 28 10 12 55 1.4 3.9 30 28 143 826-204P
'
/ /
'
/
/
'
6 $ )
6
/
'
/ /
'
/
/
'
6 $ )
6
/
L4 - Handle Retracted
