SECTION 2 - LOCATION & POSITIONING WDS
WDS
2-37 & 0845 606 66 77 • : • *

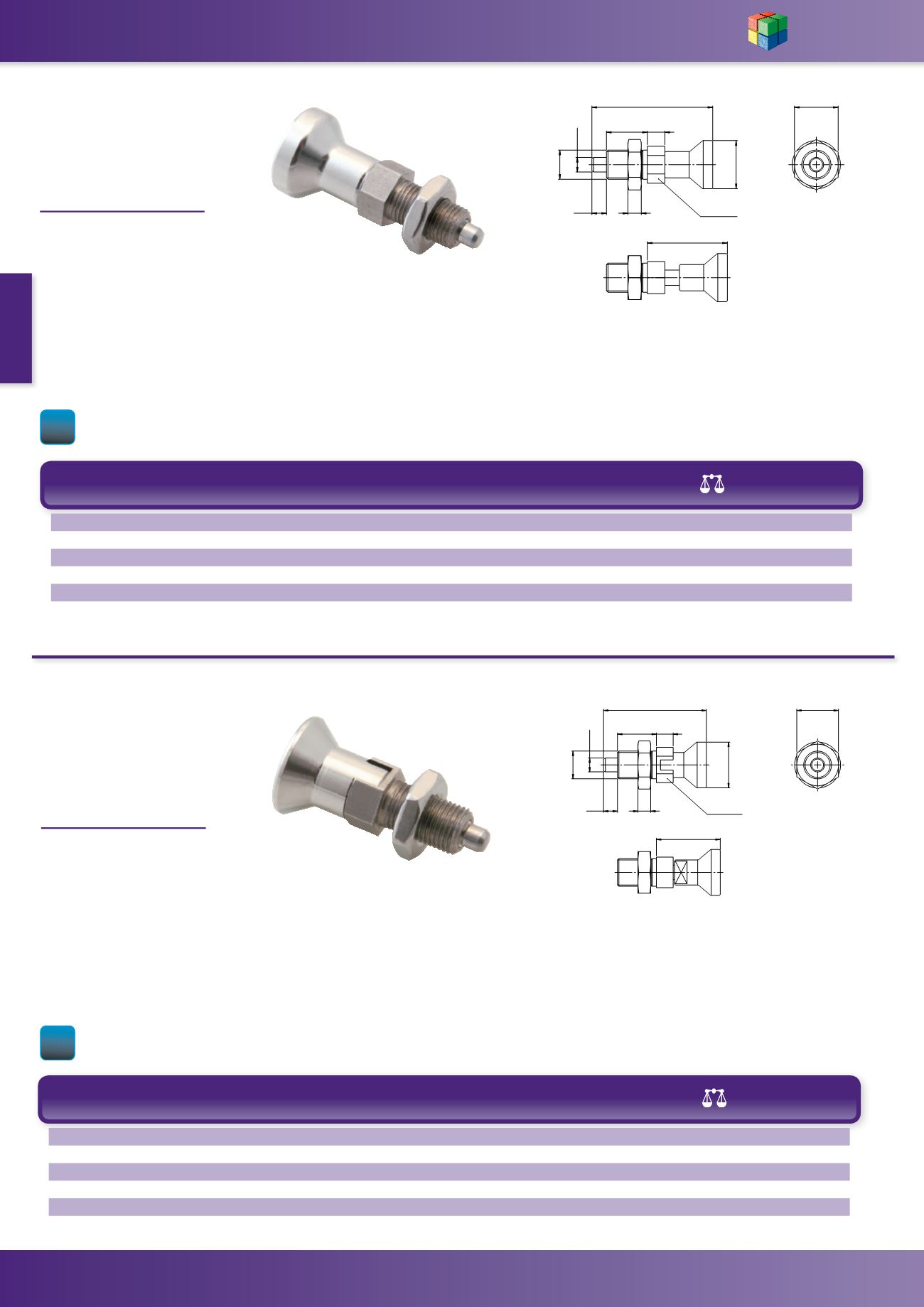

Spring Loaded
Index Bolt -
Stainless Steel
MATERIAL -
Threaded Body - Stainless Steel
321S12
Knob - Stainless Steel 321S12
Locking Pin - Stainless Steel
420S45 Hardened
Spring - Stainless Steel 301S31
Supplied complete with lock nut
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L4 S1 S2 P1 P2 H (g) WDS No.
4 18 M8x1.0 43 15 4 6 28 10 13 0.6 1.2 4 30 846-200
5 21 M10x1.0 50 17 5 7 33 13 17 0.5 1.2 5 32 846-201
6 25 M12x1.5 59 20 6 8 39 14 19 0.6 1.4 6 46 846-202
8 33 M16x1.5 77 26 8 10 51 19 24 1.5 3.4 7.8 99 846-203
10 33 M20x1.5 83 28 10 14 55 22 30 1.5 3.3 9.8 112 846-204
16 40 M24x2.0 106 32 12 18 74 27 36 2.0 4.5 12 130 846-206
/
/ /
/
'
' '
+ 6 $ )
/
/ +DQGOH UHWUDFWHG
6 $ )
3 6SULQJ SUHVVXUH NJI WR VWDUW SLQ PRYLQJ
3 6SULQJ SUHVVXUH NJI WR IXOO\ UHWUDFW SLQ
303
WDS 846
/
/ /
/
'
' '
+ 6 $ )
/
/ +DQGOH UHWUDFWHG
6 $ )
3 6SULQJ SUHVVXUH NJI WR VWDUW SLQ PRYLQJ
3 6SULQJ SUHVVXUH NJI WR IXOO\ UHWUDFW SLQ
Spring Loaded
Index Bolt -
Stainless Steel,
Parking Type
WDS 846
MATERIAL -
Threaded Body - Stainless Steel
321S12
Knob - Stainless Steel 321S12
Locking Pin - Stainless Steel
420S45 Hardened
Spring - Stainless Steel 301S31
Supplied complete with lock nut
P = Spring force initial pressure
approx. (kgf)
P1 = Spring force final pressure
approx. (kgf)
D D1 D2 L L1 L2 L3 L4 S1 S2 P1 P2 H (g) WDS No.
4 18 M8x1.0 38.5 15 4 6 23.5 10 13 0.6 1.2 4 30 846-200P
5 21 M10x1.0 43.5 17 5 7 26.5 13 17 0.5 1.2 5 32 846-201P
6 25 M12x1.5 51.7 20 6 8 31.7 14 19 0.6 1.4 6 46 846-202P
8 33 M16x1.5 68 26 8 10 42 19 24 1.5 3.4 7.8 99 846-203P
10 33 M20x1.5 74 28 10 14 46 22 30 1.5 3.3 9.8 112 846-204P
16 40 M24x2.0 96 32 12 18 64 27 36 2.0 4.5 12 130 846-206P
