SECTION 2 - LOCATION & POSITIONING WDS
& 0845 606 66 77 • : • * 2-40
WDS

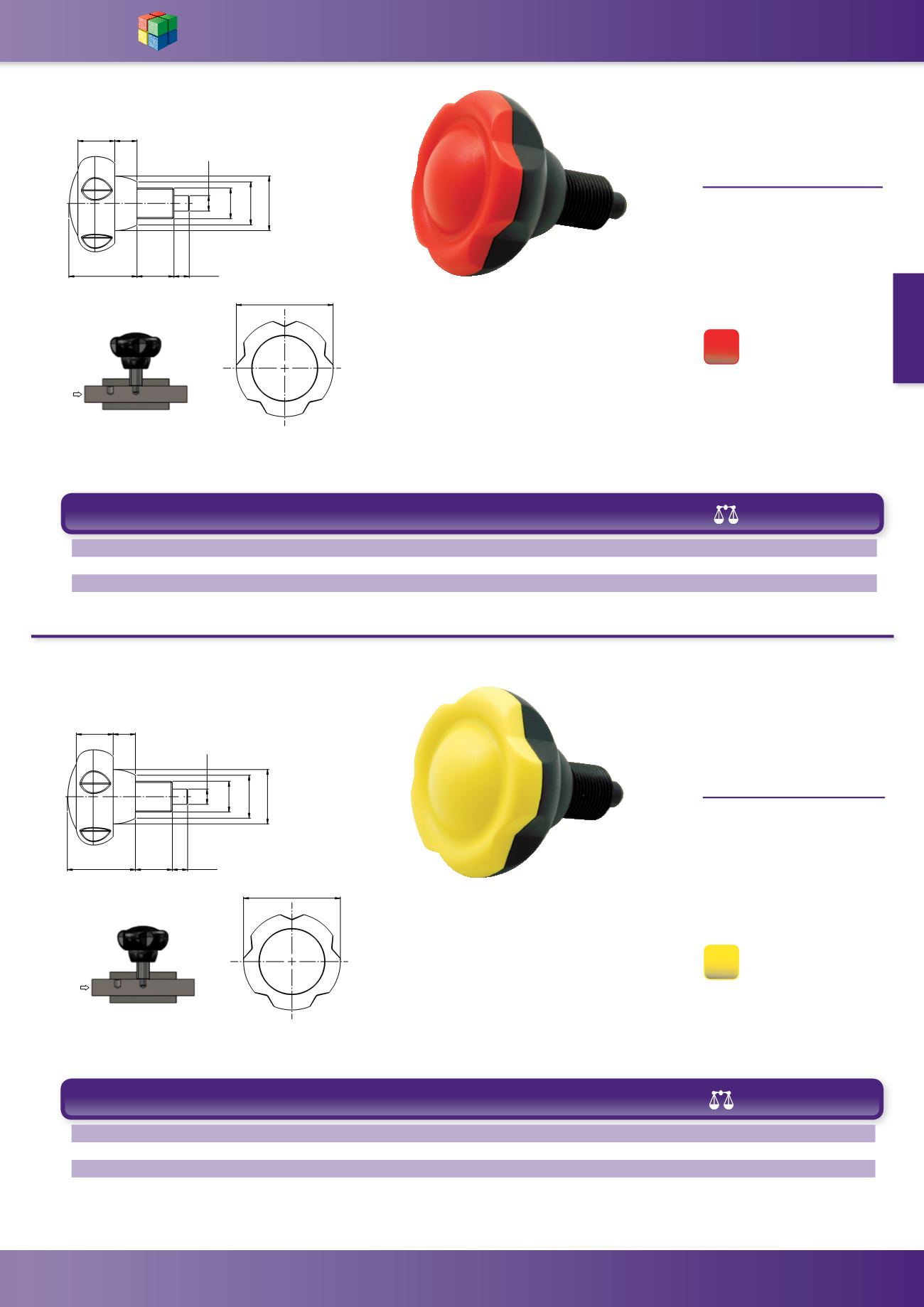

Locating and Clamp
Grip Traffic Red
WDS 8480
MATERIAL -
Body - Thermoplastic
Screw - Steel - chemical black
Locking pin - Steel hardened and
ground
This product facilitates Locating
and Clamping in one movement
with a spring loaded retractable pin
'
' '
+ +
/ /
'
+
'
' '
'
'
' '
+ +
/ /
'
+
'
D D1 D2 D3 D4 H H1 H2 L L1 (g) WDS No.
5 50 M10 x 1 22.2 28.2 34.8 17.8 11.5 13 5 33 8480-202TR
6 50 M12 x 1.5 22.2 28.2 34.8 17.8 11.5 17 6 40 8480-204TR
8 63 M16 x 1.5 28 35.5 44 22.5 14.5 22 8 97 8480-206TR
10 63 M20 x 1.5 28 35.5 44 22.5 14.5 24 10 135 8480-208TR
Locating and Clamp
Grip Cadmium
Yellow
WDS 8480
MATERIAL -
Body - Thermoplastic
Screw - Steel - chemical black
Locking pin - Steel hardened and
ground
This product facilitates Locating
and Clamping in one movement
with a spring loaded retractable pin
'
' '
+ +
/ /
'
+
'
' '
'
'
' '
+ +
/ /
'
+
'
D D1 D2 D3 D4 H H1 H2 L L1 (g) WDS No.
5 50 M10 x 1 22.2 28.2 34.8 17.8 11.5 13 5 33 8480-202CY
6 50 M12 x 1.5 22.2 28.2 34.8 17.8 11.5 17 6 40 8480-204CY
8 63 M16 x 1.5 28 35.5 44 22.5 14.5 22 8 97 8480-206CY
10 63 M20 x 1.5 28 35.5 44 22.5 14.5 24 10 135 8480-208CY
RAL
3020
RAL
1021
