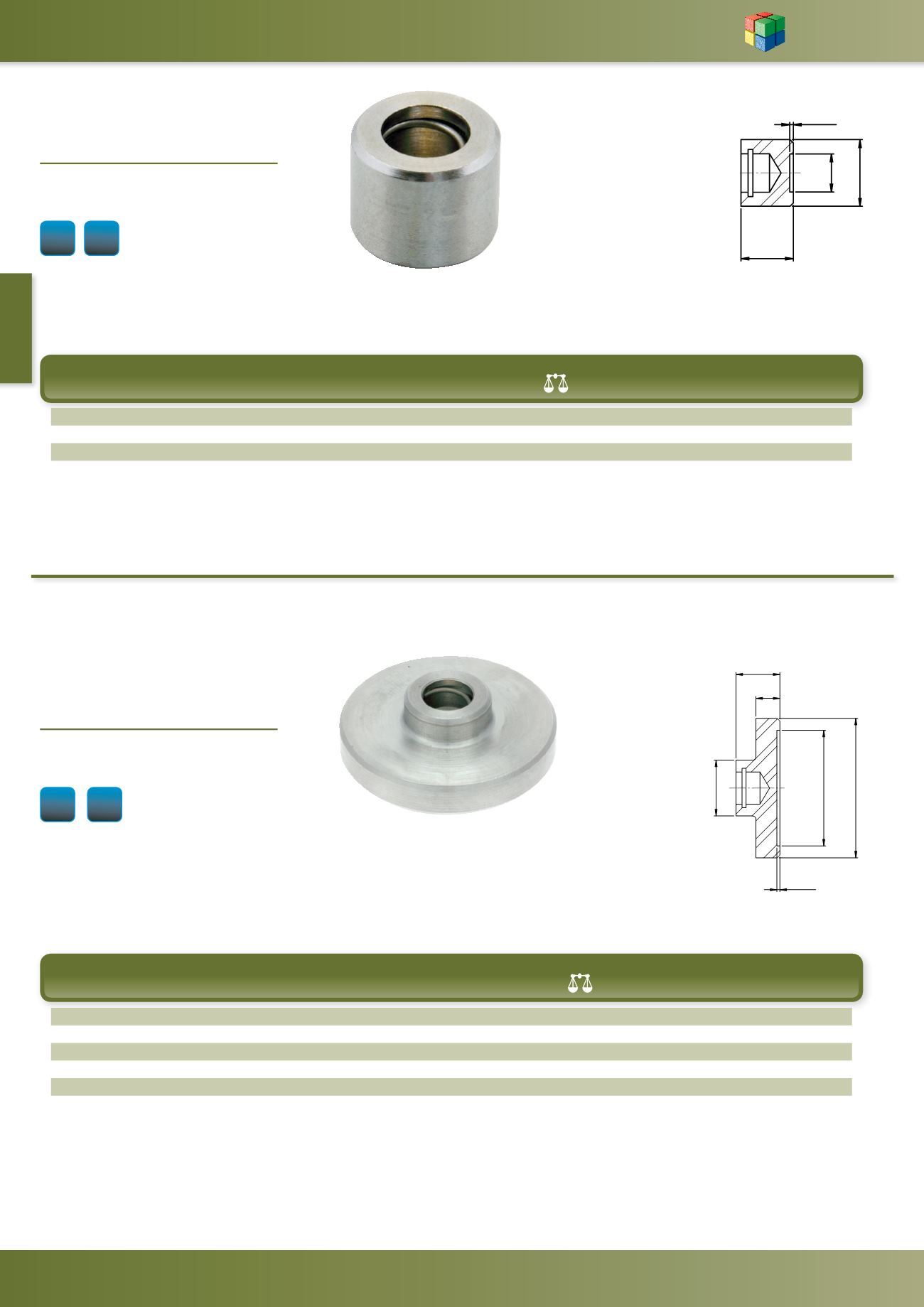

SECTION 5 - HAND KNOBS

WDS

WDS

www.wdsltd.co.uk

5-15

&

0845 606 66 77

•

:

www.wdsltd.co.uk

•

*

sales@wdsltd.co.uk

Swivel Pad

Swivel Pad

WDS 821/8921

WDS 821/8921

MATERIAL

-

Stainless Steel

BS 970 Gr 316S11 / 303S31

See 671 Series for this part in Steel

MATERIAL

-

Stainless Steel

BS 970 Gr 316S11 / 303S31

See 671 Series for this part in Steel

D

D1

D2

L

(g)

Material 316S11 Material 303S31

M6

10

5

8

4

821-4002

8921-4002

M8

12

6

9

8

821-4006

8921-4006

M10 or M12

14

8

11

10

821-401

8921-401

WDS No.

D

D1

D2

D3

L

E

(g)

Material 316S11 Material 303S31

M6

16

10

10

8

3

7

821-4004

-

M8

18

12

12

9

4

11

821-4008

8921-4008

M10 or M12 22

16

14

11

5

19

821-402

8921-402

M10 or M12 28

22

14

11

6

33

821-404

8921-404

M10 or M12 35

29

14

11

6

45

821-406

8921-406

WDS No.

(

'

'

'

/

7<3( $

' 6FUHZ VL]H UHIHU WR

'

'

/

(

'

'

'

/

7<3( $

7<3( %

' 6FUHZ VL]H UHIHU WR DQG VHULHV

316 303

303

316

D=screw size - refer to 820 and 822 Series

D=screw size - refer to 820 and 822 Series
