SECTION 9 - HINGES WDS
& 0845 606 66 77 • : • * 9-24
WDS

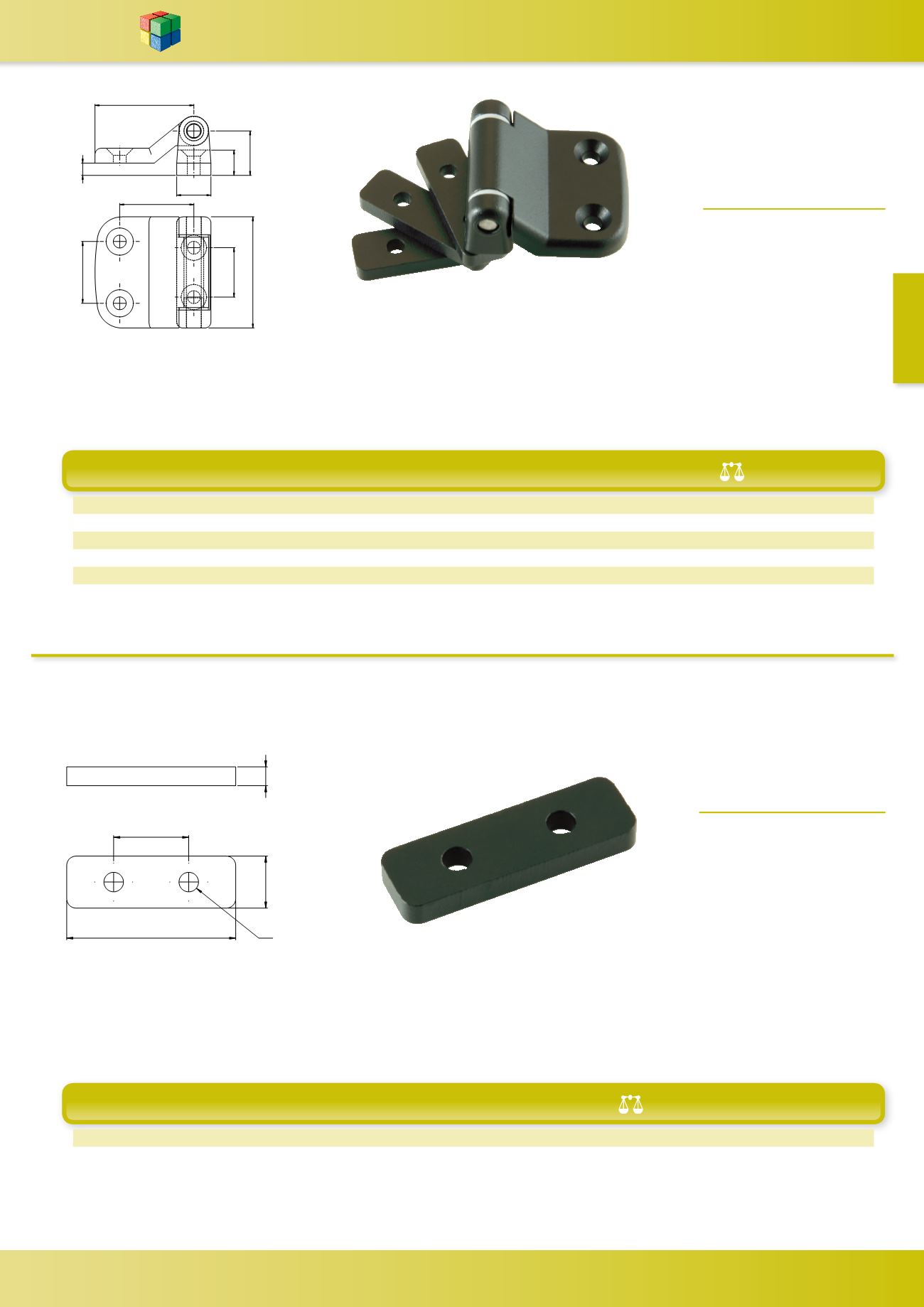

Hinge - Surface
Mount Offset - Zinc
Die Cast
WDS 8648
MATERIAL -
Body - Zinc Die Cast Black Finish
Pin - Zinc Plated Steel
Bearing - Polyamide
Countersunk holes to suit M5
Screws
Drive Fit Pin for Final Assembly
Frame/Door Offset
Offset achieved via supplied spacers
See WDS 8648-103 and
WDS 8648-105 for additional
spacer(s)
A B C C1 C2 E H H1 L Angle (Degrees) Description (g) WDS No.
40 14 25 20 30 0 8.5 13 45 180 Hinge Only 93 8648-300
40 14 25 20 30 3 11.5 16 45 180 Hinge with 3mm spacer (Kit) 109 8648-303
40 14 25 20 30 5 13.5 18 45 180 Hinge with 5mm spacer (Kit) 116 8648-305
40 14 25 20 30 8 16.5 21 45 180 Hinge with 3+5mm spacer (Kit) 132 8648-308
40 14 25 20 30 10 18.5 23 45 180 Hinge with 5+5mm spacer (Kit) 139 8648-310
40 14 25 20 30 15 23.5 28 45 180 Hinge with 5+5+5mm spacer (Kit) 162 8648-315
H1
H
E
A
B
C C1 L
C2
B C H L (g) WDS No.
14 20 3 45 16 8648-103
14 20 5 45 23 8648-105
Hinge Spacer
WDS 8648
MATERIAL -
Zinc Die Cast Black Finish
Frame/Door Offset
For use with WDS 8648-300 series
H
B
L D
C
