SECTION 11 - CASTORS & WHEELS WDS
& 0845 606 66 77 • : • * 11-22
WDS

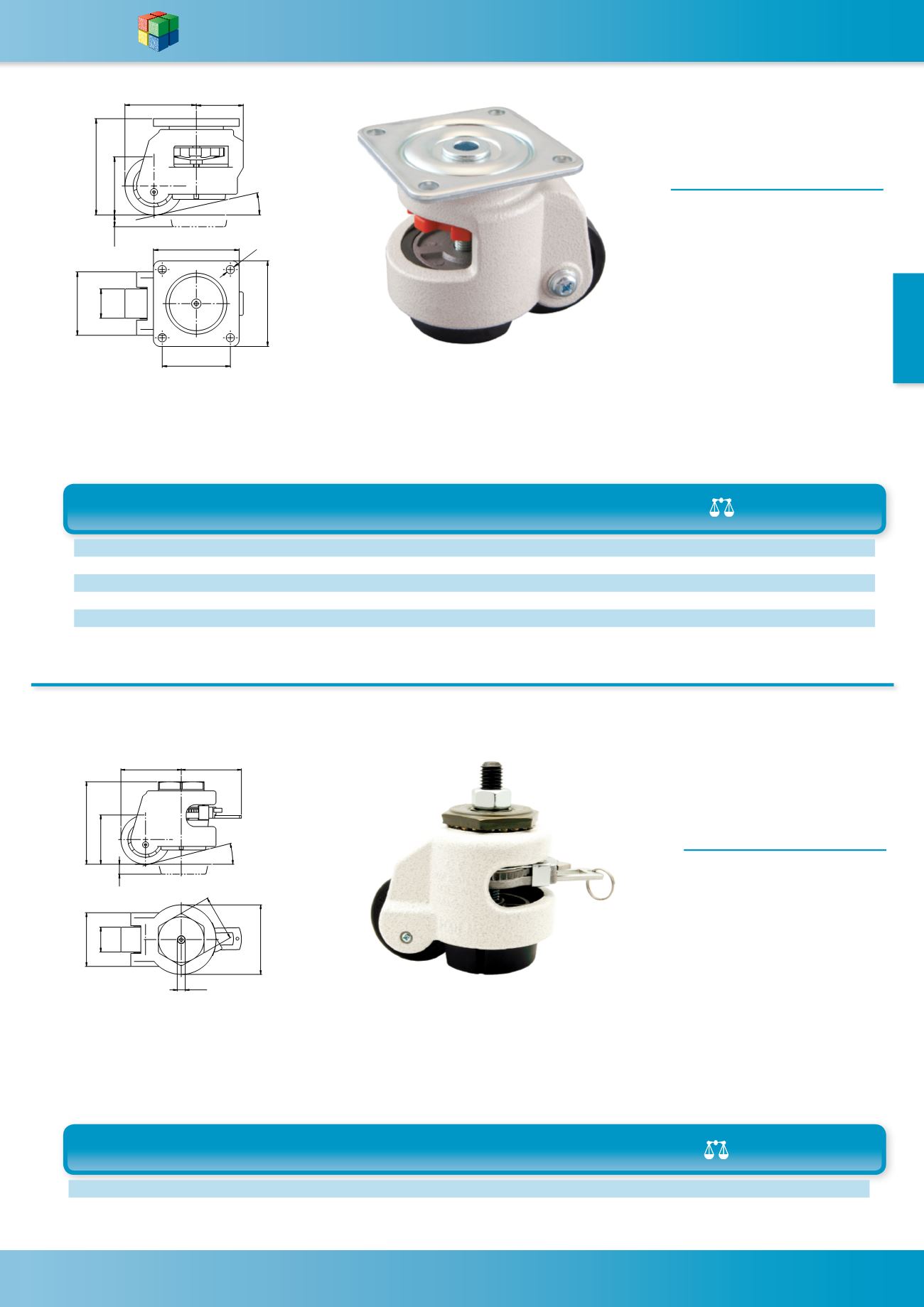

Ratchet Stem Fitting
Levelling Castor
WDS 12200
MATERIAL -
Die Cast Aluminium footpad with
vibration damping rubber pad.
Forged Steel top plate/flange and swivel
head.
Die Cast Aluminium body.
Powder Coated Ivory Finish
Supplied with Nut and Stud
D D1 D2 D3 H H1 R L1 W W1 A Load Kg
Static
Load Kg
Dynamic (kg)
WDS No.
63 M12 46 70 82 10 61 71 25 53 11 250 125 1.3 12200-202
'
/
+
$
+
5
'
' : :
'
Plate Fitting Adjustable
Levelling Castor
WDS 12198
MATERIAL -
Die Cast Aluminium footpad with vibration
damping rubber pad.
Forged Steel top plate/Flange and swivel
head.
Die Cast Aluminium Body
Powder Coated Ivory Finish
Nylon Handwheel with M12 Leveler for
12198-202, 12198-203, 12198-204.
Nylon Handwheel with M16 Leveler for
12198-205.
Hex Adjuster with M20 Leveler (Spanner
Required) for 12198-206
D D1 D2 C L H H1 R R1 W W1 A
Load Kg
Static
Load Kg
Dynamic (kg) WDS No.
50 7 70 58 73 82 10 61 40 25 53 11 250 125 0.7 12198-202
63 9 85 70 90 102 15 77.5 47.5 30 64 11 500 250 1.2 12198-203
75 11 98 70 95 120 12 90.5 52 30 67 11 750 375 1.6 12198-204
75 11 100 70 95 120 12 90.5 51 33 70 11 1000 500 1.2 12198-205
97 13 116 70 100 132 15 117 61 56 104 9 1500 750 1.6 12198-206
'
