SECTION 11 - CASTORS & WHEELS WDS
& 0845 606 66 77 • : • * 11-20
WDS

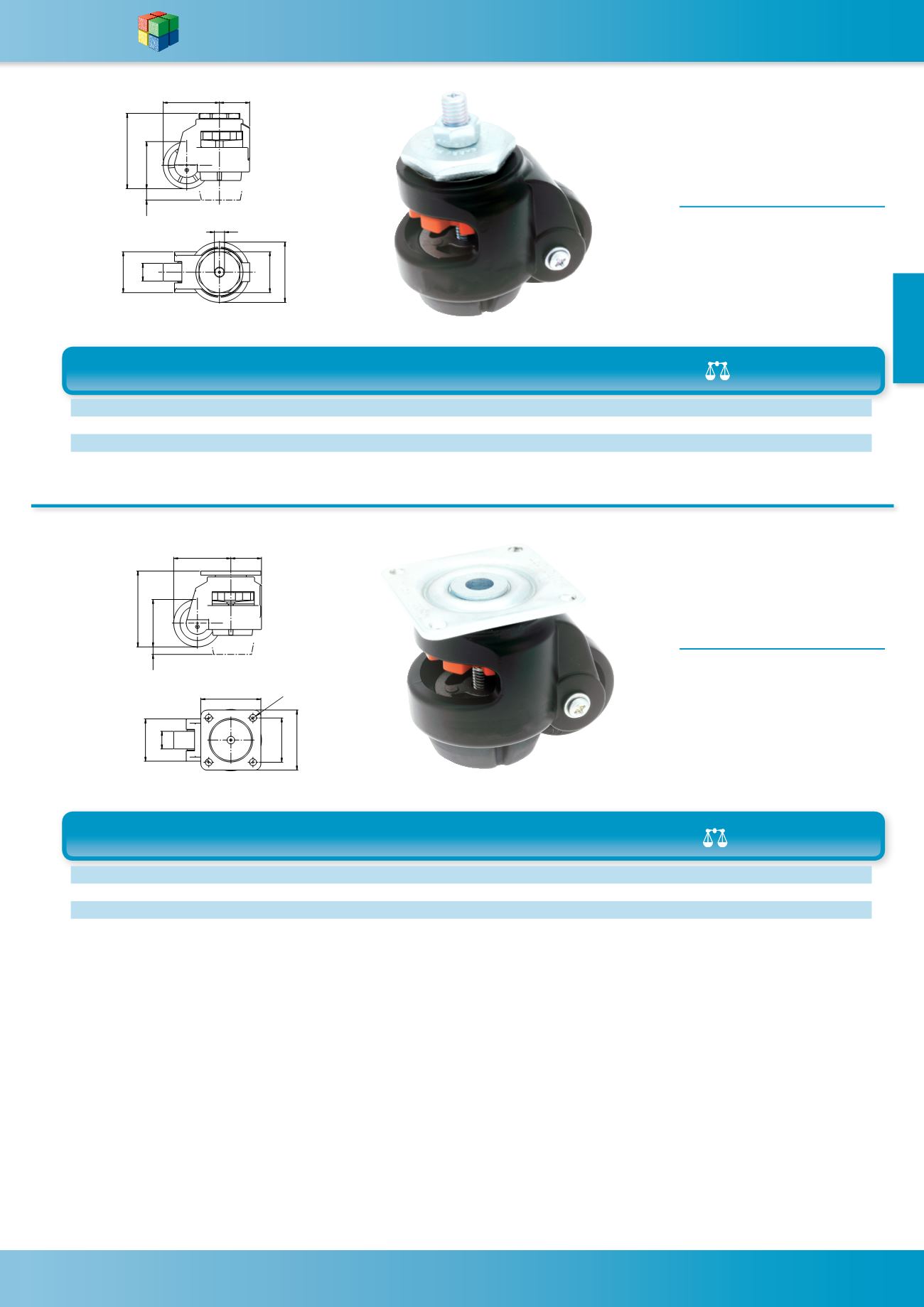

Screw Fitting
Adjustable Levelling
Castor
WDS 12350
MATERIAL -
Die cast aluminium footpad with
vibration damping rubber pad.
Die cast aluminium body.
Powder coated black finish.
Nylon finger operated handwheel.
Supplied with Nut and Stud
D D1 D2 D3 H H1 R R1 W W1 Load kg
Static
Load kg
Dynamic (kg) WDS No.
42 M8 x 12 40 59 71 10 53 30 18 36 50 25 0.38 12350-201
50 M12 x 15 46 71 83 10 61.5 35.5 22 45 300 150 0.76 12350-202
62 M12 x 15 65 88 102 15 77 44 29 60 500 250 1.12 12350-203
72 M16 x 16 70 102 120 18 88 51 31 65 1000 500 1.56 12350-204
5
'
5
+
+
:
: ' '
'
Plate Fitting
Adjustable Levelling
Castor
WDS 12350
MATERIAL -
Die cast aluminium footpad with
vibration damping rubber pad.
Forged steel top plate, flange and swivel
head.
Die cast aluminium body.
Powder coated black finish.
Nylon finger operated handwheel.
D D1 D2 C L H H1 R R1 W W1
Load kg
Static
Load kg
Dynamic (kg) WDS No.
50 6.5 73 58 73 83 10 61.5 35.5 22 45 300 150 0.76 12350-252
62 9.5 90 70 90 102 15 77 44 29 60 500 250 1.38 12350-253
72 11 95 70 95 120 18 88 51 31 65 1000 500 1.82 12350-254
'
