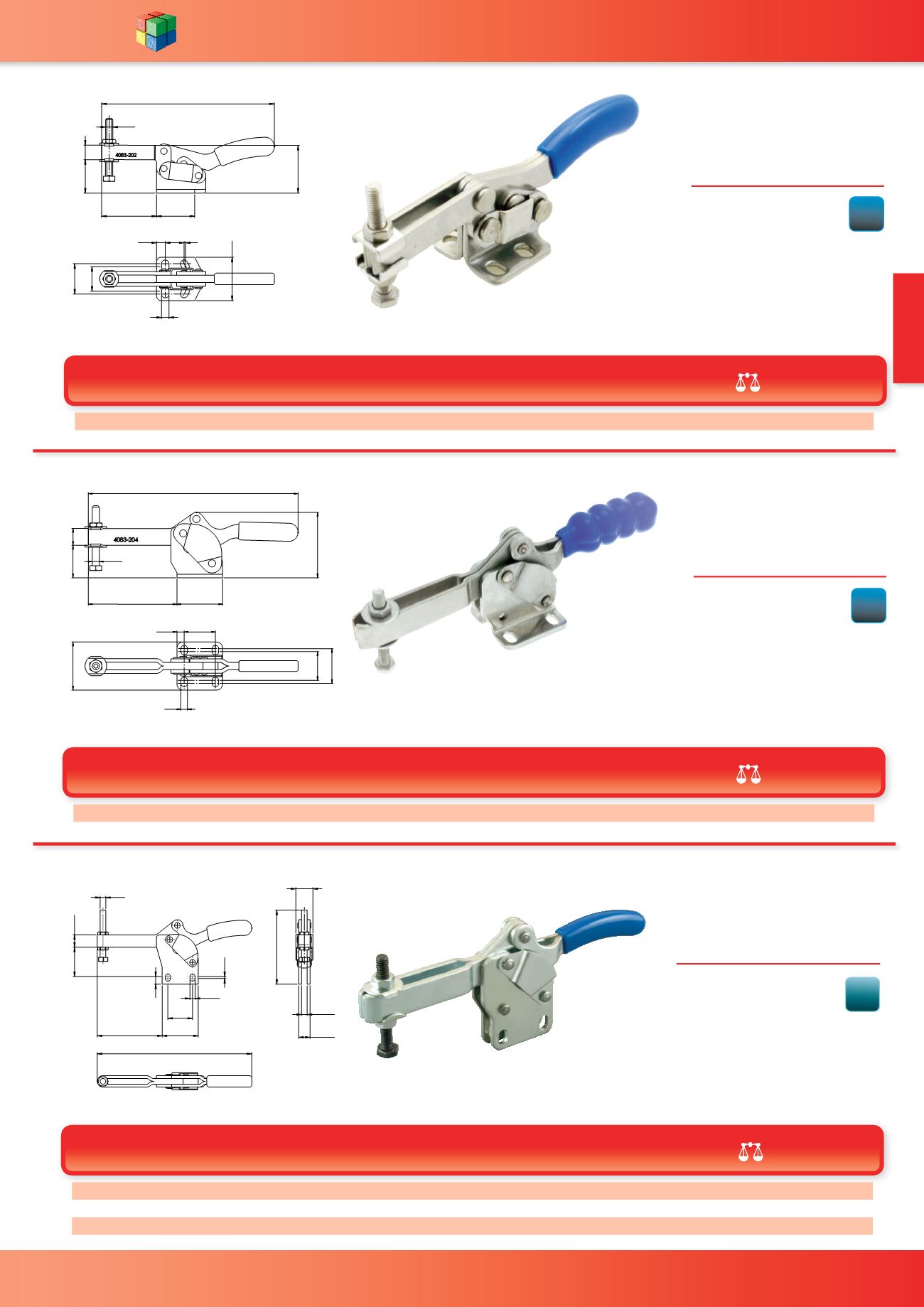

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
& 0845 606 66 77 • : • * 19-18
WDS
Horizontal Clamp -
Adjustable Spindle
WDS 4027
MATERIAL -
Steel, zinc plated and passivated
Vertical base. Adjustable spindle position
Supplied with set screw, nuts and flanged
washers
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads.
B B1 B2 D D1 H H1 H2 H3 H4 L L1 L2 L3 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
20 5 10 5.5 M6 65 29 14 9 3 165 61 38 26 90° 150 0.20 4027-203
23 6 12 6.6 M8 82 39 17.5 10 2.5 210 77 42 26 90° 250 0.38 4027-204
30 8 16 8.6 M10 108 54 23 9 2 265 110 59 41.3 90° 350 0.90 4027-206
Horizontal Clamp -
Adjustable Spindle
WDS 4083
MATERIAL -
Stainless Steel BS 304 S15
Flanged base. Adjustable spindle
position.
Supplied with set screw,nuts and
flanged washers
See 4025 Series for this part in steel
+
+
/ /
' +
/
% % %
/ /
'
B B1 B2 D D1 H H1 H2 L L1 L2 L3 L4
Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
40 24 29 5.5 M6 56 27 14 173 72 38 26 6 90° 150 0.20 4083-204
/
/
'
/
+
+
+
+
'
+
%
%
%
/
/
'
/
+
+
+
+
'
+
%
%
%
/
Horizontal Clamp -
Adjustable Spindle
WDS 4083
MATERIAL -
Stainless Steel BS 304 S15
Flanged base. Adjustable spindle
position.
Supplied with set screw, nuts and
flanged washers
See 4025 Series for this part in steel
B B1 D D1 H H1 H2 L L1 L2 L3 L4 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
30 21 5.2 M5 30 23 10 120 37 27 13 6 90° 75 0.06 4083-202
/
'
+
/
/
+ +
% %
/ /
'
%
304
304
ZP
