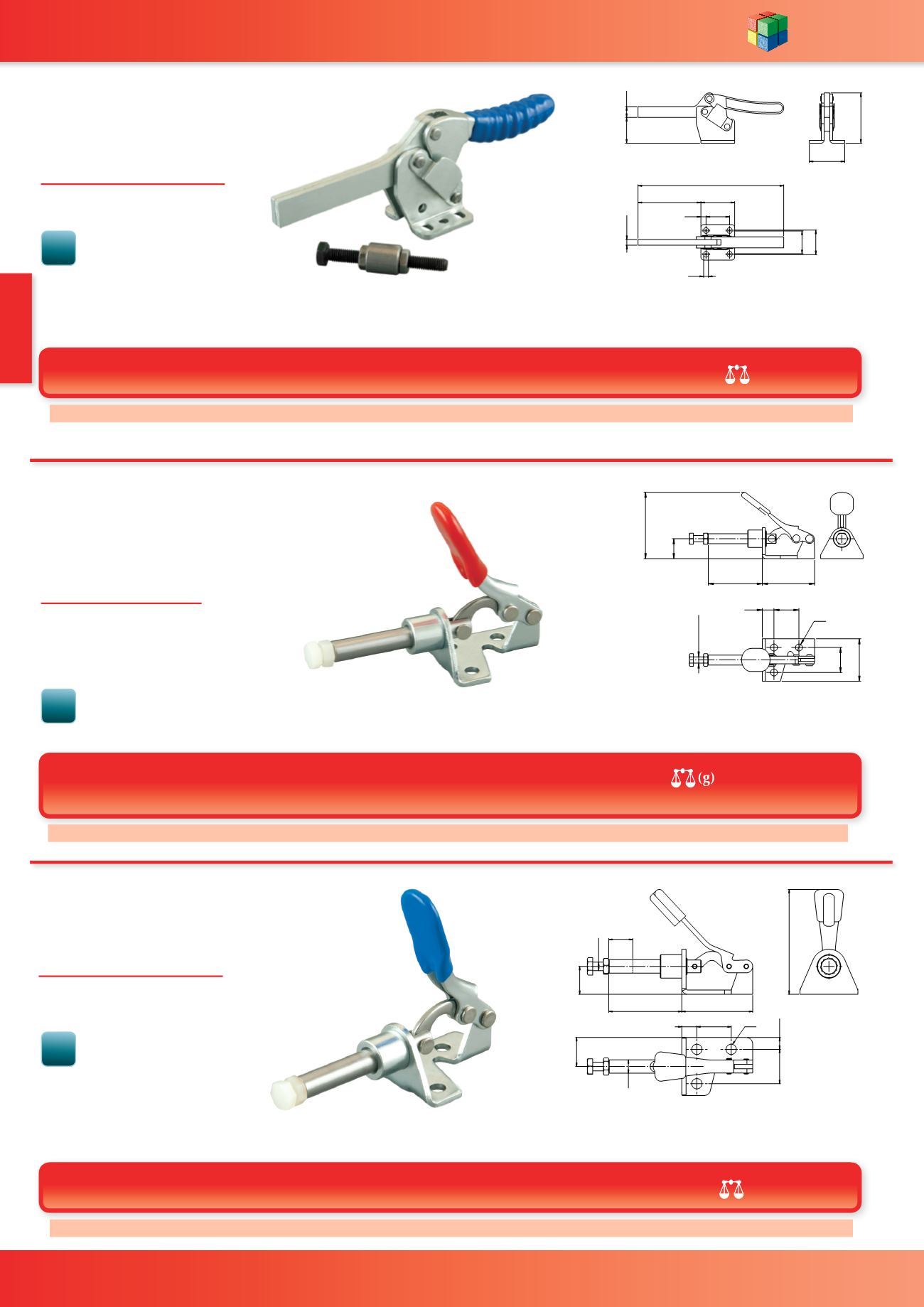

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES
WDS
WDS
www.wdsltd.co.uk19-21
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukHorizontal Clamp -
Solid Arm
WDS 4026
MATERIAL
-
Steel, Zinc Plated and passivated
Flanged base. Solid arm with spindle
retainer supplied loose complete with
set screw and nuts for welding
in the desired position
B B1 B2 B3 D H H1 H2 L L1 L2 L3 L4 S
Arm
Opens
Max Holding
Force (kg)
(kg) WDS No.
46 27 31 8 6.3 71 34 17 218 89 42 26 8 M8x70 95°
250
0.5 4026-201
62 40 43 10 8.7 105 45 20 255 110 59 41.2 9 M10x80 90°
350
0.9 4026-202
Push/Pull
Toggle Clamp -
Lightweight
WDS 860
MATERIAL
-
Body - Die-stamped steel, Zinc
Plated to resist corrosion.
Hand Grip - Oil resistant red
vinyl
B B1
C C1
D H H1
L
L1
S
Max Holding
Capacity (kg)
WDS No.
27 15.9 7.4 15.9 4.4 41 12.7 33.3 34.7 16.7
45
50
860-201
/
/
+
+
6 6752.(
%
%
& &
'
0 [
/
/
+
+
6 6752.(
%
%
& &
'
0 [
/
/
+
+
6 6752.(
%
%
& &
'
0 [
Light Duty Push/Pull
Clamp
WDS 4033
MATERIAL
-
Steel, Zinc Plated and
passivated
Supplied with set screw, nylon set
screw
See 4085 for this part in Stainless
Steel
B B1 B2 D D1 D2 H H1 L
L1 L4 L5 S
Holding
Force (kg)
(kg) WDS No.
16 13.5 5.5 M4x12 6.4 4.8 48 13 33 34 16 7 16
50
0.05 4033-201
+ +
/
/
/
/ /
%
%
%
'
+
%
6 6HWVFUHZ
1XWV VXSSOLHG
D
H1
L
L1
S
L4
B
D1
B2
L5
B1
D2
H
STROKE
S = set screw size
ZP
