SECTION 19 - TOGGLE CLAMPS & ACCESSORIES
WDS
WDS
www.wdsltd.co.uk19-19
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukHorizontal

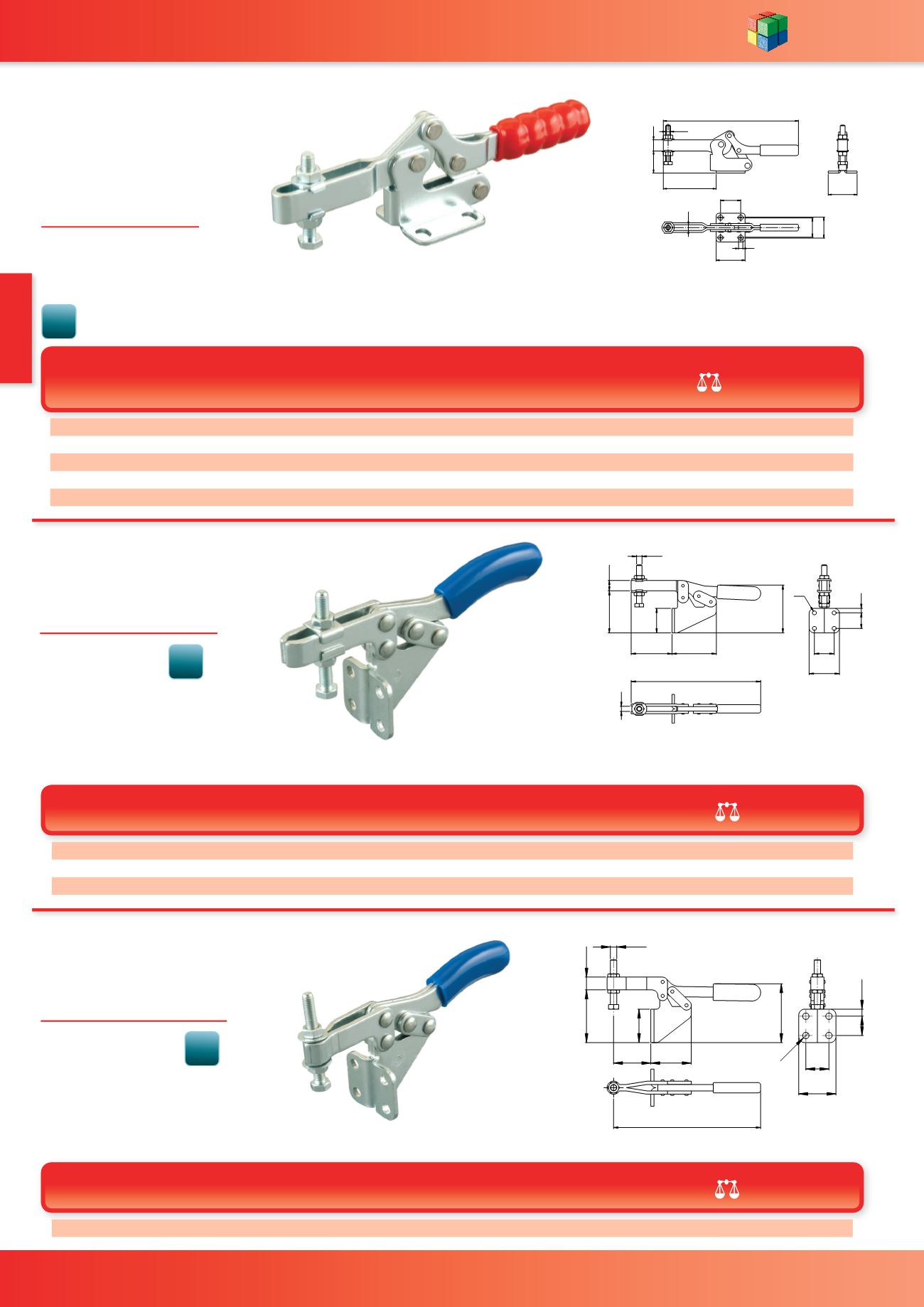

Toggle Clamp -
Adjustable
Spindle
WDS 867
MATERIAL
-
Body - Die-stamped steel,
zinc plated to resist corrosion.
Hand Grip - Oil resistant red
vinyl
A B C D D1 E F G H1 H2 L L1
Clamp
Opens
Holding
Capacity
(kg)
(g)
WDS No.
25 13.2 5.8 5.2 M5 27 16.8 -
19 9.5 109 37 94°
75
88
867-201
38 26 6.2 5.5 M6 40 28 22 25 14 171 61 94°
150
220
867-202
42 26 9 6.6 M8 47 31 26 34 17.5 219 79 94°
250
430
867-203
59 41.2 11.4 8.7 M10 59 42.9 39 45 23 274 108 94°
350
872
867-204
66 41.2 13.2 8.7 M12 66 41.3 -
59 26 303 128 94°
450
1400
867-205
Horizontal Clamp -
Adjustable Spindle
WDS 4031
MATERIAL
-
Steel, zinc plated and
passivated
Front base. Adjustable spindle
position. Supplied with set screws,
nuts and flanged washers.
Refer to 4053, 4055, 4057 for
plain spindles, swivel spindles
and pads
B B1 B2 D D1 H H1 H2 H3 H4 H5 L L1 L2
Arm
Opens
Max Holding
Force (kg)
(kg) WDS No.
30 18 5 5 M5 51 41 10 25 15 5.5 120 29 31 90°
100
0.09 4031-201
39 26 6 5 M6 54 49 13 31.5 21 5 140 38 46 90°
200
0.17 4031-202
44.5 29 8 6 M8 75 65 16 38 24 7 195 60 64 90°
300
0.34 4031-203
Horizontal Clamp -
Fixed Spindle
WDS 4029
MATERIAL
-
Steel, zinc plated and
passivated
Front base. Fixed spindle position
Supplied with set screw and nuts
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads.
B B1 D D1 H H1 H2 H3 H4 H5 L L1 L2
Arm
Opens
Max Holding
Force (kg)
(kg) WDS No.
30 20 5 M5 51 41 10 25 15 5.5 120 29 31 90°
100
0.09 4029-201
H2
H1
L1
L
D1
C
F
G
B
A
D
E
+
+
'
+
+
/
/
%
/
%
+ +
%
'
'
+
+
/ /
+
+
/
%
+ +
%
'
'
+
+
/ /
+
+
/
%
+ +
%
'
ZP
ZP
ZP
