SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
& 0845 606 66 77 • : • * 19-20
WDS

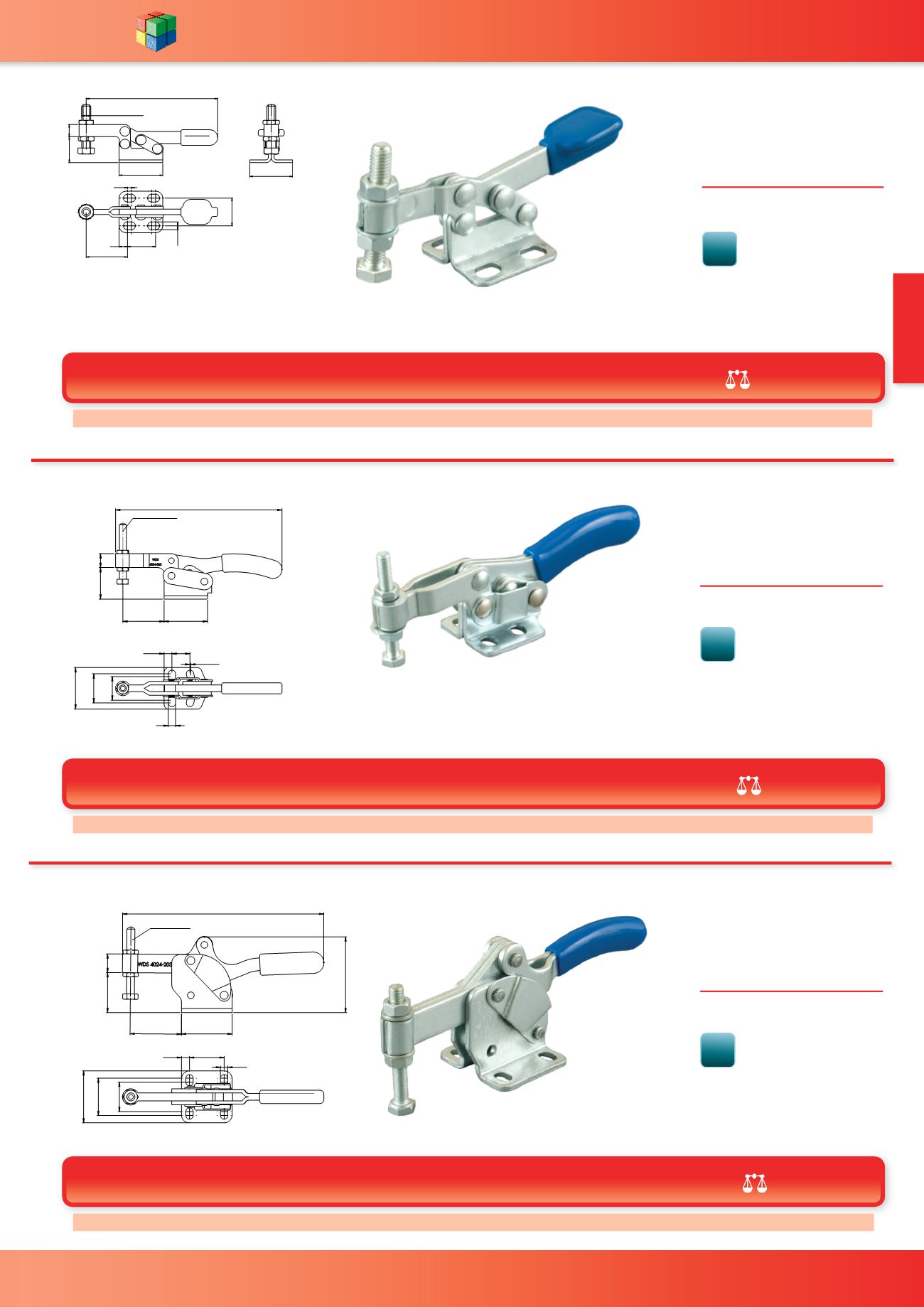

Horizontal Clamp -
Fixed Spindle
WDS 4024
MATERIAL -
Steel, zinc plated and passivated
Flanged base. Fixed spindle position
Supplied with set screw and nut
B B1 B2 D D1 H H1 H2 H3 L L1 L2 L3 L4 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
39 23 27 5.5 M6 56 26 14 50 153 38 38 26 6 90° 150 0.20 4024-203
B B1 B2 D D1 H1 H2 L L1 H3 L2 L3 L4 ArmOpens
Max Holding
Force (kg) (kg) WDS No.
30 16 21 5.2 M5 20 10 120 30 30 34 13 5.6 90° 75 0.115 4024-202
Horizontal Clamp -
Fixed Spindle
Horizontal Clamp -
Fixed Spindle
WDS 4024
WDS 4024
MATERIAL -
Steel, zinc plated and passivated
Flanged base Fixed spindle position
Supplied with set screw and nuts
MATERIAL -
Steel, zinc plated and passivated
Flanged base. Fixed spindle position
Supplied with set screw and nuts
/ /
+ +
/
' [ + ORQJ
%
/
%
/
'
%
' [ /RQJ
+
/
+
/
/
/ /
/
%
'
%
H1
L1 L2
L
H2
H
D1 x H3
B B2 B1
L3
D
L4
B B2 D D1 H1 H2 L L1 L2 L3 L4 L5 ArmOpens
Holding
Force (kg) (kg) WDS No.
24 16 4.5 M5 11 7 70 21 24 16 4 2.4 85° 50 0.03 4024-201
