SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
& 0845 606 66 77 • : • * 19-16
WDS

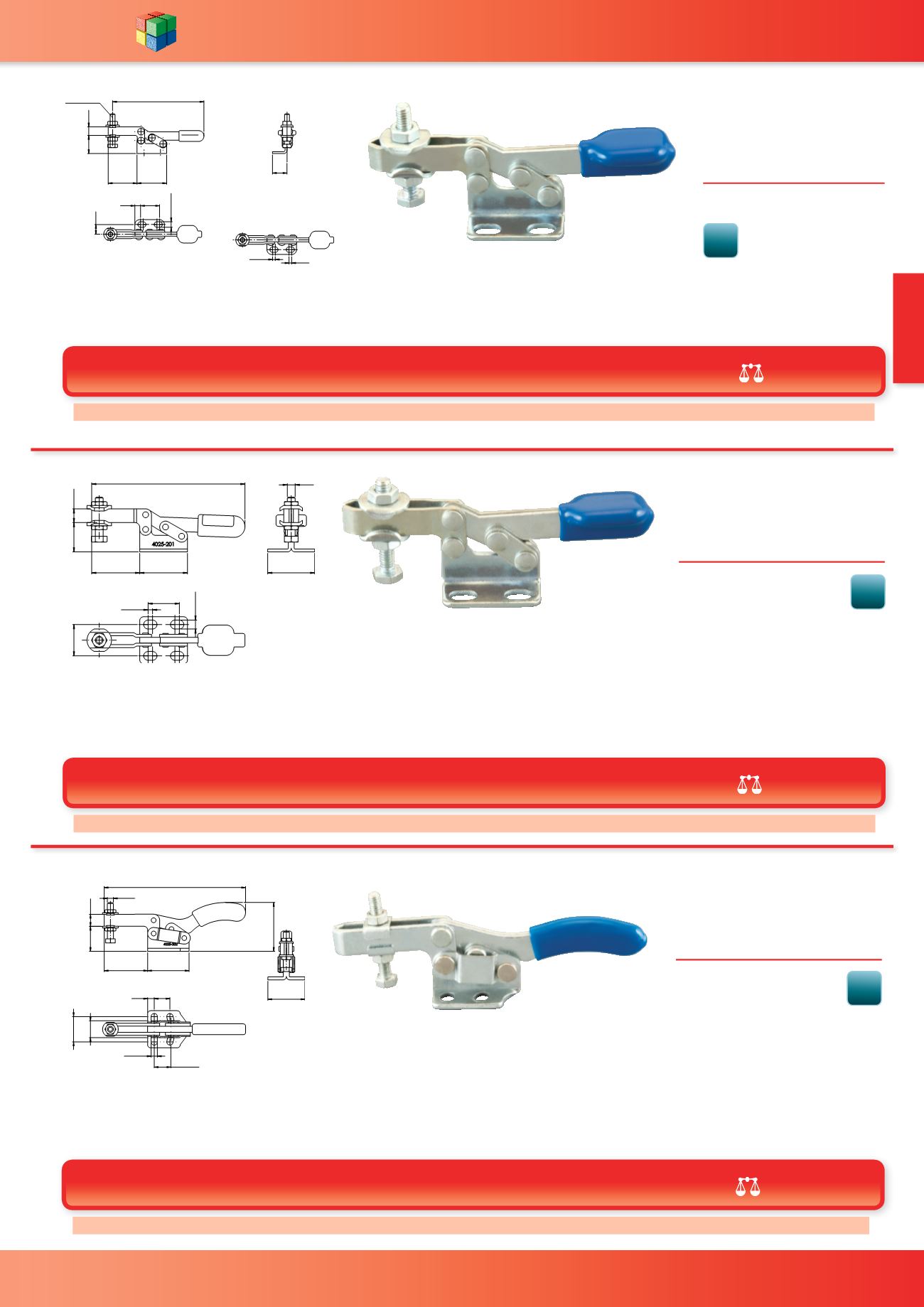

Horizontal Clamp -
Adjustable Spindle
WDS 4025
MATERIAL -
Steel, zinc plated and passivated
Flanged base. Adjustable
spindle position.
Supplied with set screw, nuts and
flanged washers.
Refer to 4053, 4055, 4057, 4059 for
plain spindles, swivel spindles, pads
and brackets.
See 4083 Series for this part in
Stainless Steel
B B1 D D1 H H1 H2 L L1 L2 L3 L4 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
24 16 4.1 M4 22 15 7 75 24 25 16 4 86° 50 0.03 4025-201
/
/
%
'
/ /
+ +
/
%
'
/
/
%
'
/ /
+ +
/
%
'
Horizontal Clamp -
Adjustable Spindle
WDS 4025
MATERIAL -
Steel, zinc plated and passivated
Flanged base. Adjustable spindle
position.
Supplied with set screw, nuts and
flanged washers
Refer to 4053, 4055, 4057, 4059 for
plain spindles, swivel spindles, pads
and brackets
See 4083 Series for this part in
Stainless Steel
B B1 B2 D D1 H H1 H2 L L1 L2 L3 L4
Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
30 21 17 5.2 M5 40 20 10 110 36 34 13 5.5 90° 75 0.06 4025-202
+
+
/ /
'
/
+
/ /
% % '
%
+
+
/ /
'
/
+
/ /
% % '
%
Horizontal Clamp -
Adjustable Spindle
WDS 4022
MATERIAL -
Steel, zinc plated and passivated
Flanged base. Adjustable spindle
position.
Supplied with set screw, nuts and
flanged washers
B B1 D D1 H1 H2 L L1 L2 L3 L4 L5 L6 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
12 8 4.5 M4 15 7 75 24 24 15.7 4.2 2.2 2.2 85° 50 0.03 4022-201
12 8 4.5 M4 15 7 75 24 24 15.7 4.2 2.2 2.2 85° 50 0.03 4022-202
+ +
/ /
/
' [
%
/ /
%
'
