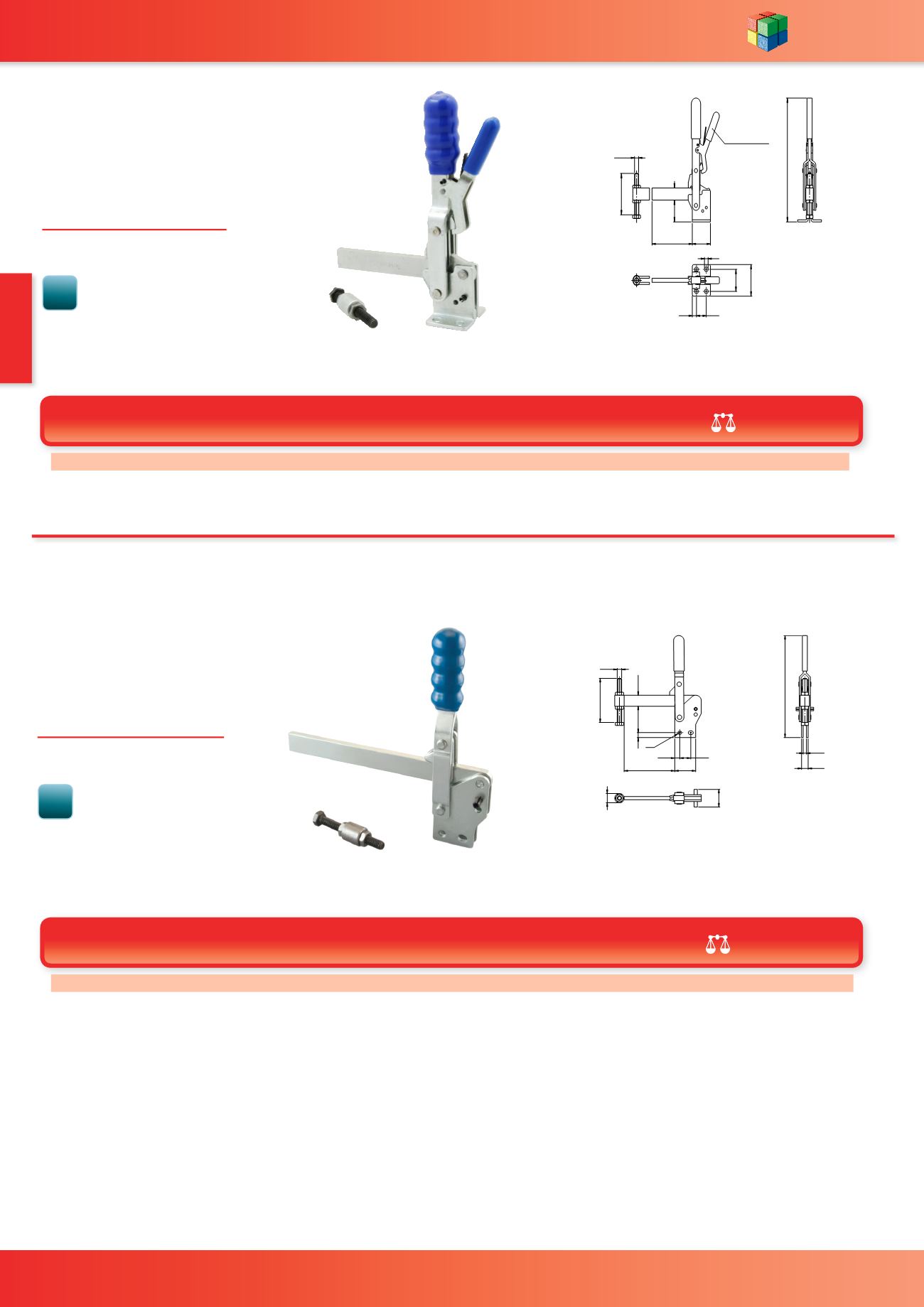

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
WDS
19-11 & 0845 606 66 77 • : • *
Locking Toggle
Clamp - Vertical
Arm Base Flange
Mounting Solid Arm
WDS 4076
MATERIAL -
Mild Steel Zinc Plated
B B1 D D1 H H1 H2 H4 L L1 L2 L3 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
32 46 6.5 M8 181 31.7 17.5 60 78 36 19 8 125° 245 0.38 4076-205
/ /
+
+ +
'
/RFNLQJ /HYHU
+
/ /
% %
'
1RWH )LWWLQJ DW HQG RI FODPS LV
VXSSOLHG ORRVH IRU FXVWRPHU WR ILW ZP
Toggle Clamp -
Vertical Arm Plate
Mounting Solid arm
WDS 4077
MATERIAL -
Mild Steel Zinc Plated
B B1 B2 D D1 D2 H H1 H2 H3 H4 L L1 L2 L3
Arm
Opens
Max Holding
Force (Kg) (kg) WDS No.
32 12 6 6.5 M8 17 185 48 20 9 80 92 38 20 9 100° 250 0.5 4077-203
32 12 6 6.5 M8 17 185 48 20 9 80 150 38 20 9 100° 250 0.6 4077-203150
/ /
+
'
'
/ + +
+
/
' %
%
+
%
1RWH %RVV DW HQG RI FODPS LV
VXSSOLHG ORRVH IRU FXVWRPHU WR ILW ZP
