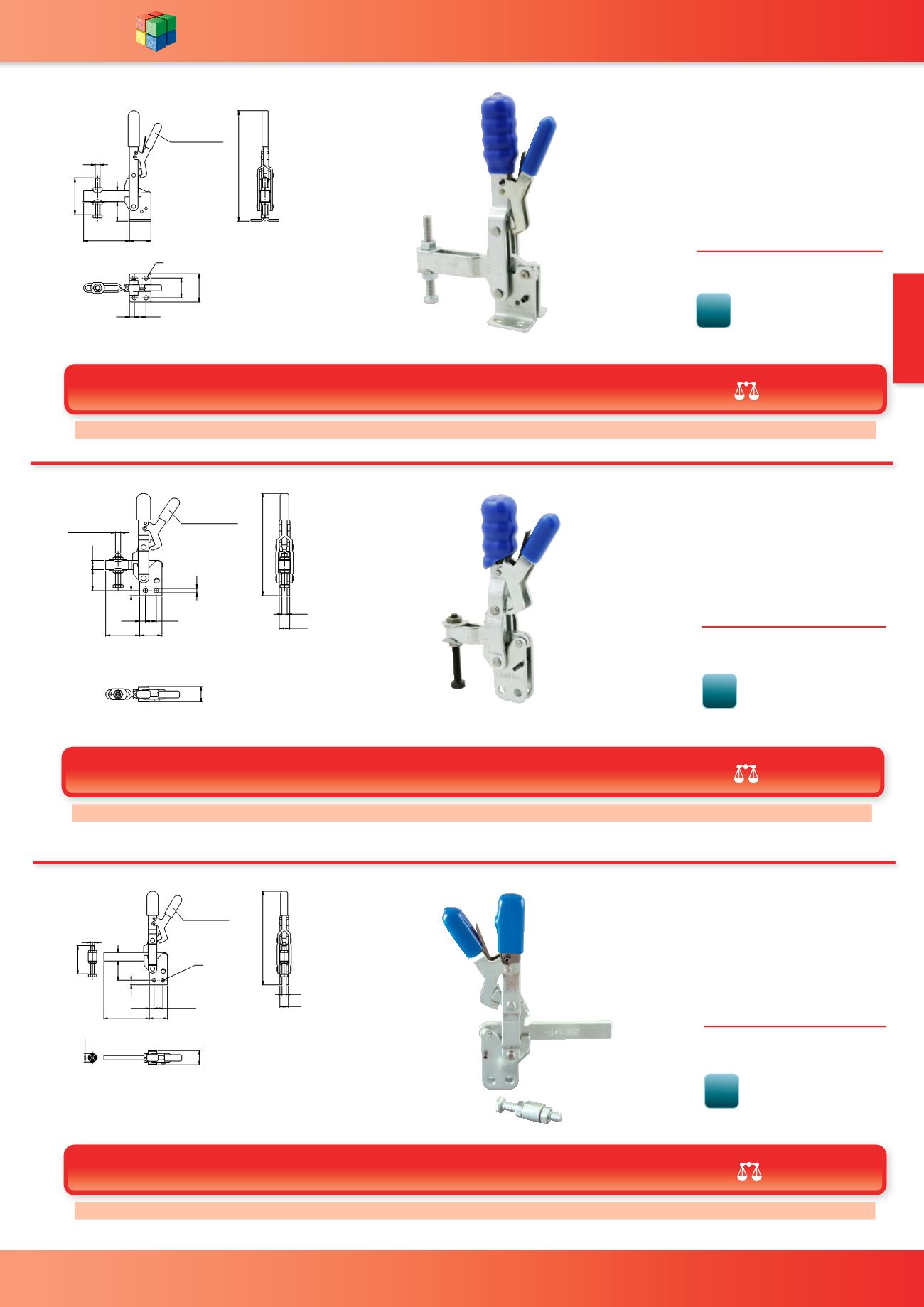

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
& 0845 606 66 77 • : • * 19-10
WDS
Locking Toggle
Clamp - Vertical
Arm Base Flange
Mounting Adjustable
Spindle
WDS 4073
MATERIAL -
Mild Steel Zinc Plated
B B1 D D1 H H1 H2 H4 L L1 L2 L3
Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
32 46 6.5 M8 181 31.7 17.5 60 74 36 19 8 125° 245 0.38 4073-205
/ /
+ +
'
+
/RFNLQJ /HYHU
+
/ /
% %
'
ZP
Locking Toggle
Clamp - Vertical
Arm Plate Mounting
Adjustable Spindle
WDS 4074
MATERIAL -
Mild Steel Zinc Plated
B B1 B2 D D1 H H1 H2 H3 H4 L L1 L2 L3
Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
20 6 12 5.5 M6 132 27 12 6.5 40 39 25.5 12.5 6.5 100° 113 0.2 4074-201
30 8 16 8.5 M10 231 54.2 20 9.9 80 107 48.3 32.2 8 108° 350 0.69 4074-207
%
%
+
/ /
/
+
/
+
+
' [ +
'
/RFNLQJ /HYHU
%
Locking Toggle
Clamp - Vertical
Arm Plate Mounting
Solid Arm
WDS 4075
MATERIAL -
Mild Steel Zinc Plated
B B1 B2 D D1 D2 H H1 H2 H3 H4 L L1 L2 L3 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
20 6 12 5.5 M6 12 132 27 12 6.5 40 64 25.5 12.5 6.5 100° 113 0.2 4075-201
30 8 16 8.5 M10 17 231 54.2 20 9.9 80 96 48.3 32.2 8 108° 350 0.69 4075-207
/ /
/ /
'
'
+ +
+
+
/RFNLQJ /HYHU
%
'
+
%
%
1RWH )LWWLQJ DW HQG RI FODPS LV
VXSSOLHG ORRVH IRU FXVWRPHU WR ILW
ZP
ZP
