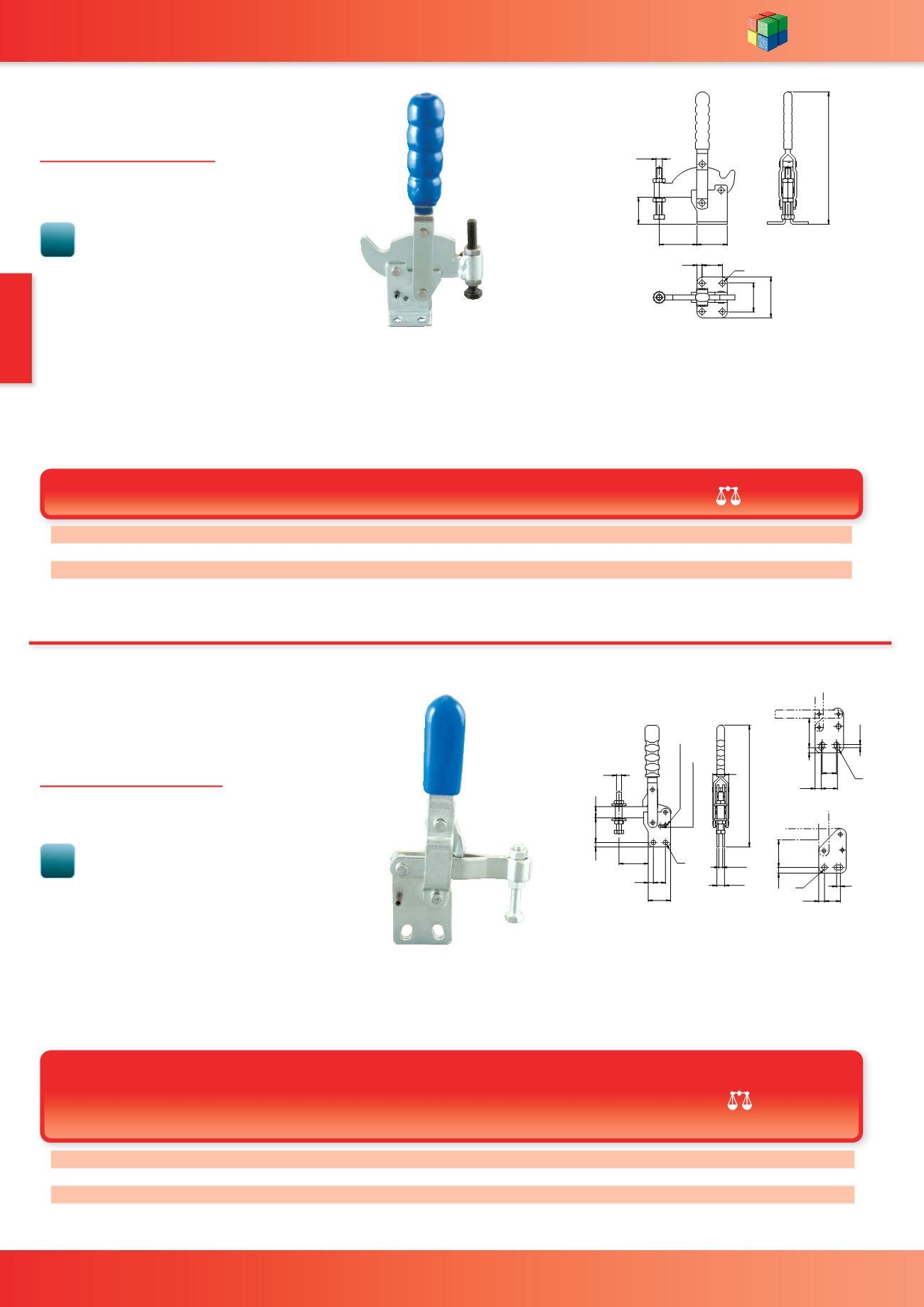

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES
WDS
WDS
www.wdsltd.co.uk19-7
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukVertical Clamp -
Fixed Spindle
WDS 4007
MATERIAL
-
Steel, zinc plated and
passivated
Vertical base
Fixed spindle position
Supplied with set screw and nuts
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads
B B1 B2 D D1 H H1 H2 H3 L L1 L2 L3
Arms Open
Holding
Force
(kg)
(kg) WDS No.
stop
pin 1
stop
pin 2
stop
pin
removed
19 5 - 4.8 M5 120 30 10 5 32 27 16 6 90°
-
-
100 0.11 4007-201
28 12 6 7.1 M8 189 39 17 7 45 36 20 8 90°
120° 160°
250 0.38 4007-204
26 12.6 6.3 8 M8 198 42 19 9 65 43 25 9 110°
-
-
300 0.45 4007-205
Vertical Cam Clamp
WDS 4021
MATERIAL
-
Steel, zinc plated &
passivated
Supplied with set screw and nuts
Refer to 4053, 4055, 4057 for
plain spindles, swivel spindles
and pads
B B1 D D1 H H1 L L1 L2 L3 Arm Opens
Holding
Force (kg)
Total Cam
Travel
(kg) WDS No.
34 25 4.4 M5 98 12 25 22 16 4.5 90°
75
2
0.08 4021-201
46 32 7.1 M8 175 30 35 32 19 8
90°
250
2.4
0.40 4021-202
62 45 8.3 M10 210 43 47 58 32 8
90°
350
2.8
0.71 4021-203
These cam clamps have a hardened cam profile and give an effective clamping pressure at all positions within approx 40° of the vertical centre line.
Component variation can be accommodated within the cam travel
H1
L1 L
D1
B
D L2
B1
L3
H
/ /
/
+
+
+
'
/
'
6WRS SLQ SRVLWLRQ
6WRS SLQ SRVLWLRQ
%
%
%
+
/
+
/
+
'
/
+
/
+
'
ZP
ZP
