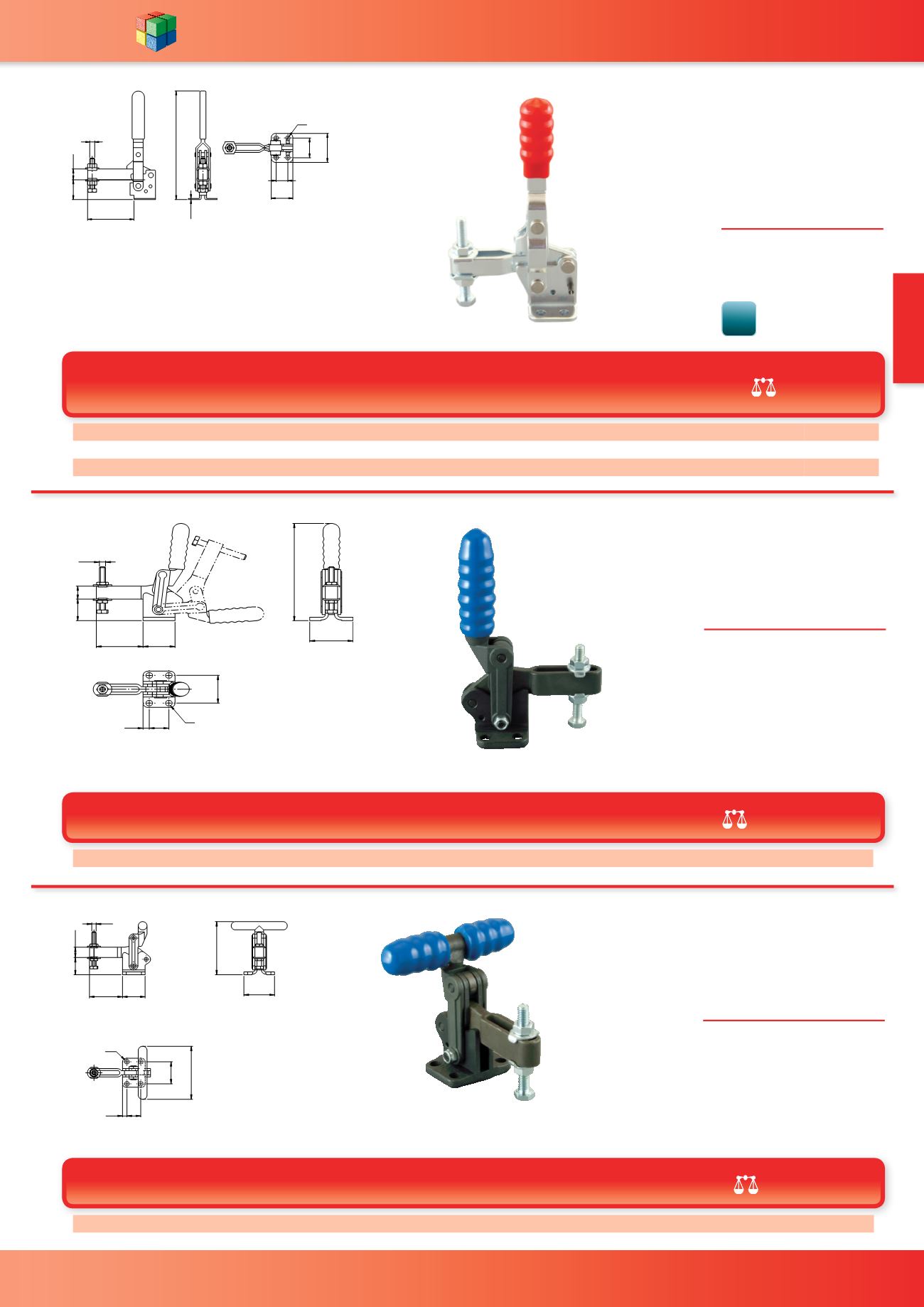

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
& 0845 606 66 77 • : • * 19-2
WDS
Vertical
Toggle Clamp
- Adjustable
Spindle
WDS 863
MATERIAL -
Body - Die-stamped steel, zinc
plated to resist corrosion.
Hand Grip - Oil resistant red vinyl
A B C C1 D E F H H1 H2 L
Clamp
Opens
Holding Capacity
(kg) (g) WDS No.
16 26 34 24 4.4 M5 2 86.5 16 9 31 130°-195° 75 50 863-202
12.7 27 37.8 26.8 5.1 M6 3 123 23 11 43 95°-185° 150 230 863-204
19 35 47 32 7.1 M8 3 175 32 17.5 75 90°-150° 250 418 863-206
/
+ +
(
+
)
'
&
%
&
$
/
+ +
(
+
)
'
&
%
&
$
/
+ +
(
+
)
'
&
%
&
$
H. Duty Vertical
Clamp - Adjustable
Spindle
WDS 4016
MATERIAL -
Steel
Chemical black finish
Flanged base. Adjustable spindle
position
Supplied with set screw, nuts and
flanged washers
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads.
B B1 D D1 H H1 H2 L L1 L2 L3 Arms Open Holding
Force (kg) (kg) WDS No.
32 42 6.5 M6 119 25 15 45 31 19 6 112° 300 0.30 4016-201
H. Duty Vertical
Clamp - Adjustable
Spindle
WDS 4020
MATERIAL -
Steel
Chemical black finish
Flanged base. Adjustable spindle
position. Supplied with set screw,
nuts and flanged washers
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads
B B1 B2 D D1 H H1 H2 L L1 L2 L3
Arm
Opens
Holding Force
(kg) (kg) WDS No.
32 42 77 6.5 M6 77 25 15 45 31 19 6 112° 300 0.29 4020-201
+ + / /
'
/ /
'
% %
+
%
'
++
/ /
/ /
%
'
%
+
