SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
& 0845 606 66 77 • : • * 19-6
WDS

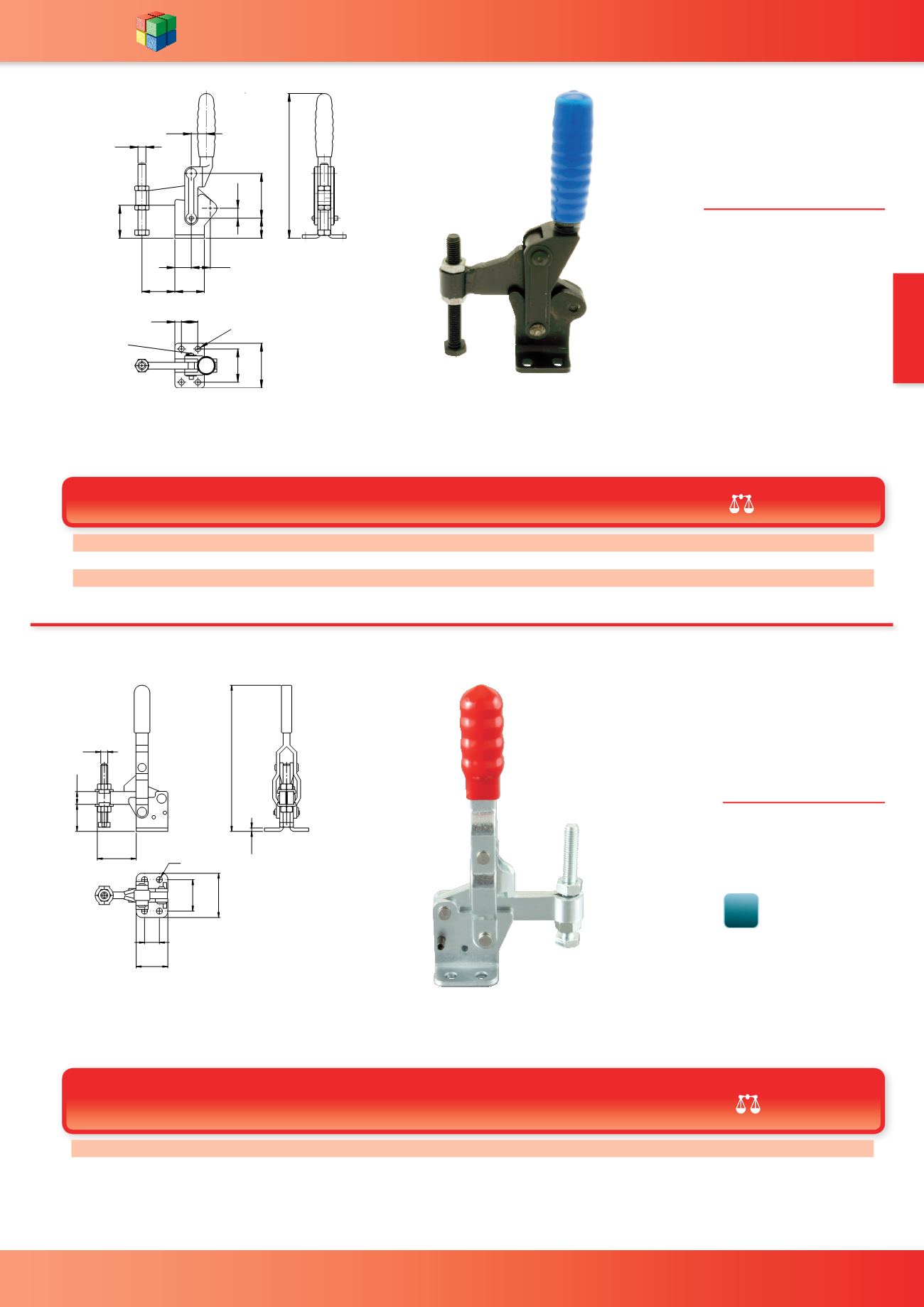

Vertical Toggle
Clamp - Fixed
Spindle
WDS 864
MATERIAL -
Body - Die-stamped steel,
Zinc plated to resist corrosion.
Hand Grip - Oil resistant red
vinyl
A B C C1 D E F H H1 H2 L Clamp
Opens
Holding
Capacity
(kg)
(g) WDS No.
12.7 27 37.8 26.8 5.1 M6 3 123 23 11 33 95°-185° 150 230 864-204
19 35 47 32 7.1 M8 3 175 32 17.5 53 90°-150° 250 418 864-206
+ +
(
/
+
) '
& &
%
$
H. Duty Vertical
Clamp - Fixed
Spindle
WDS 4017
MATERIAL -
Steel
Chemical black finish
Flanged base. Fixed spindle position
Supplied with set screw and nuts
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and
pads.
B B1 D D1 H H1 H2 H3 H4 L L1 L2 L3 L4 L5 L6 Holding
Force (kg) (kg) WDS No.
67 50 8.3 M12 215 52 67 15 30 45 29 50 23 25 25 10 700 1.10 4017-201
88 60 8.3 M12 250 60 82 19 36 50 36 60 25 25 30 10 1200 1.80 4017-202
100 75 10.3 M16 295 75 105 23 46 63 44 75 35 40 40 12 2400 3.90 4017-203
'
/ /
/ /
+
+ +
+
/
%
/ /
%
'
7LJKWHQ KDQGOH SLYRW
DV UHTXLUHG WR UHGXFH
IUHH SOD\ /XEULFDWH DOO
SLYRWV IUHTXHQWO\
+
$UP RSHQV r
ZP
