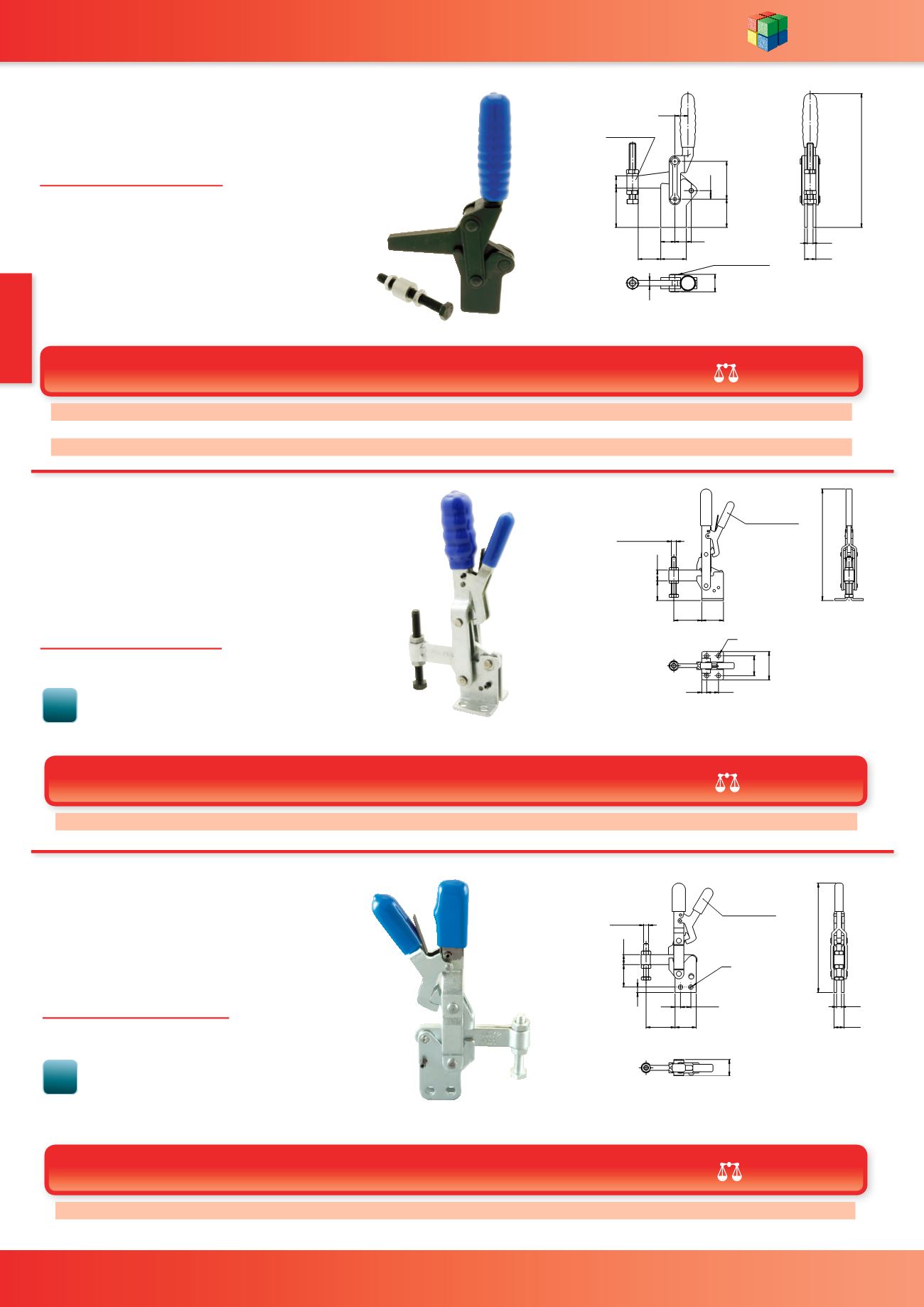

SECTION 19 - TOGGLE CLAMPS & ACCESSORIES WDS
WDS
19-9 & 0845 606 66 77 • : • *
H. Duty Vertical
Clamp - Solid Arm
WDS 4019
MATERIAL -
Steel
Chemical black finish
Vertical base.
Supplied with spindle retainer, set
screw and nuts
B B1 B2 H H1 H2 H3 H4 H5 L L1 L2 L3 L4 S Arm
Opens
Holding
Force (kg) (kg) WDS No.
40 10 20 235 70 67 15 50 22 45 29 40 23 25 M12 175° 700 1.10 4019-201
48 12 24 280 86 82 19 63 25 50 36 50 25 25 M12 175° 1200 1.80 4019-202
62 16 32 320 105 105 23 76 32 63 44 60 35 35 M12 175° 2400 3.90 4019-203
+ +
+ +
/ /
/ /
+
/
6SLQGOH UHWDLQHU
VXSSOLHG ORRVH IRU
FXVWRPHU ILWPHQW
%
%
+
%
%
7LJKWHQ KDQGOH SLYRW
DV UHTLUHG WR UHGXFH
IUHH SOD\
/XEULFDWH IUHTXHQWO\
S=set screw size
Locking Toggle
Clamp - Vertical
Arm Base Flange
Mounting Fixed
Spindle
WDS 4071
MATERIAL -
Mild Steel Zinc Plated
B B1 D D1 H H1 H2 H4 L L1 L2 L3 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
32 46 6.5 M8 181 31.7 17.5 60 45 36 19 8 125° 245 0.38 4071-205
+ +
' [ + /RQJ
/ /
/RFNLQJ /HYHU
+
'
% %
/ /
Locking Toggle
Clamp - Vertical
Arm Plate Mounting
Fixed Spindle
WDS 4072
MATERIAL -
Mild Steel Zinc Plated
B B1 B2 D D1 H H1 H2 H3 H4 L L1 L2 L3 Arm
Opens
Max Holding
Force (kg) (kg) WDS No.
20 6 12 5.5 M6 132 27 12 6.5 40 35 25.5 12.5 6.5 100° 113 0.2 4072-201
30 8 16 8.5 M10 231 54.2 20 9.9 80 74 48.3 32.2 8 108° 350 0.69 4072-207
%
%
+
'
/ /
/
+
+ +
' [ +
/
/RFNLQJ /HYHU
%
