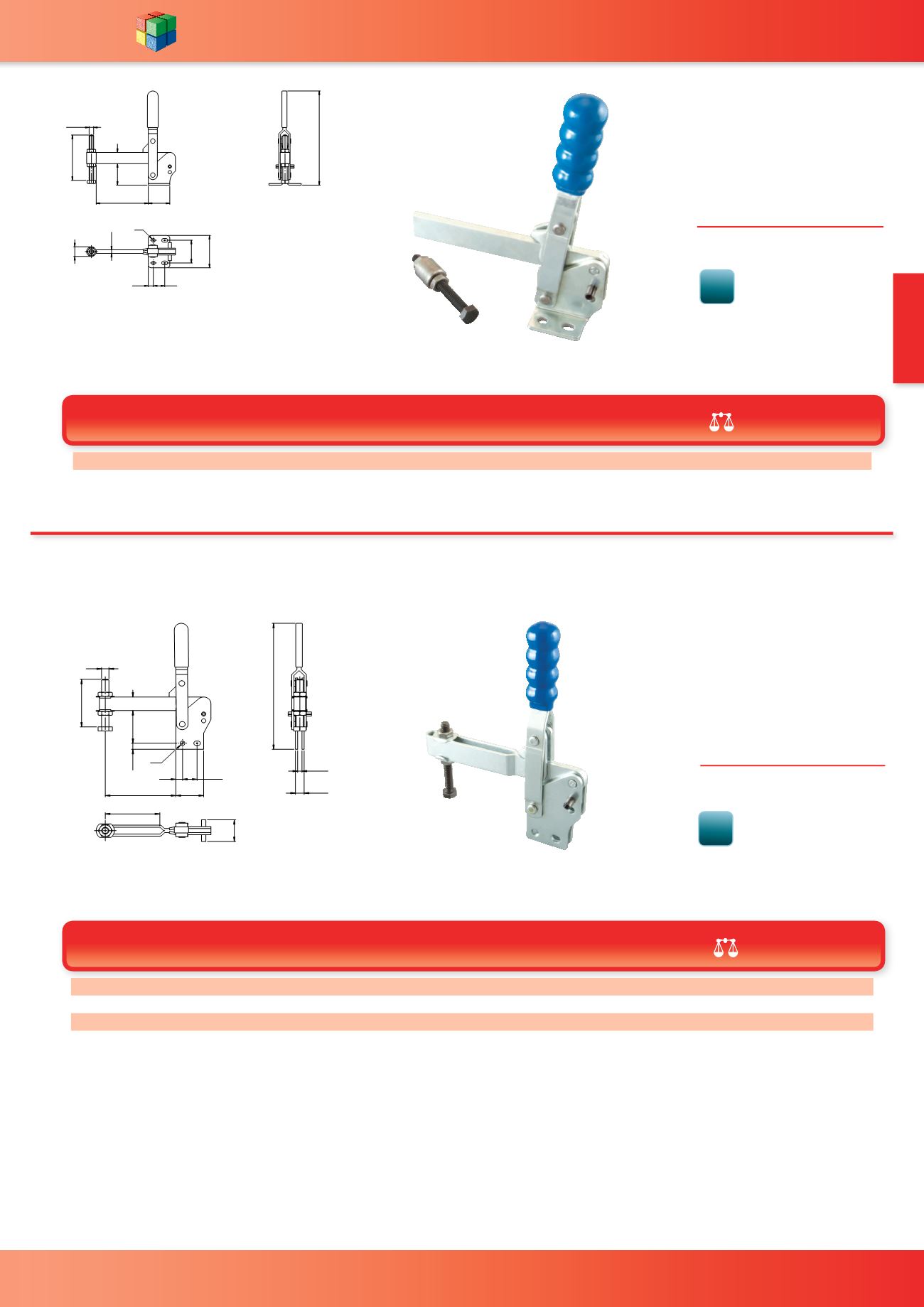

Toggle Clamp -
Vertical Arm Base
Flange Mounting
Solid Arm
WDS 4078
MATERIAL -
Mild Steel Zinc Plated
/ /
+ +
'
+
/
%
%
'
'
/
%
+
1RWH %RVV DW HQG RI FODPS LV
VXSSOLHG ORRVH IRU FXVWRPHU WR ILW
B B1 B2 D D1 D2 H H1 H2 H4 L L1 L2 L3 Arm
Opens
Max Holding
Force (Kg) (kg) WDS No.
40 57 6 6.5 M8 17 167 38 20 80 95 38 20 9 100° 250 0.5 4078-203
40 57 6 6.5 M8 17 167 38 20 80 150 38 20 9 100° 250 0.6 4078-203150
ZP
Toggle Clamp -
Vertical Arm
Plate mounting
Adjustable Spindle
WDS 4079
MATERIAL -
Mild Steel Zinc Plated
B B1 B2 D D1 H H1 H2 H3 H4 L L1 L2 L3 L4
Arm
Opens
Holding
Force (kg) (kg) WDS No.
32 14.2 6.4 6.5 M8 193 48 19 9 70 97 38 20 9 75 100° 250 0.5 4079-203
32 14.2 6.4 6.5 M8 193 48 19 9 70 137 38 20 9 70 100° 250 0.5 4079-20375
32 14.2 6.4 6.5 M8 193 48 19 9 70 187 38 20 9 70 100° 250 0.6 4079-203125
32 14.2 6.4 6.5 M8 193 48 19 9 70 237 38 20 9 70 100° 250 0.6 4079-203175
/
+ + +
+
'
/ /
'
/ %
%
+
%
/
ZP
