SECTION 19 - TOGGLE CLAMPS & ACCESSORIES
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk19-4
WDS

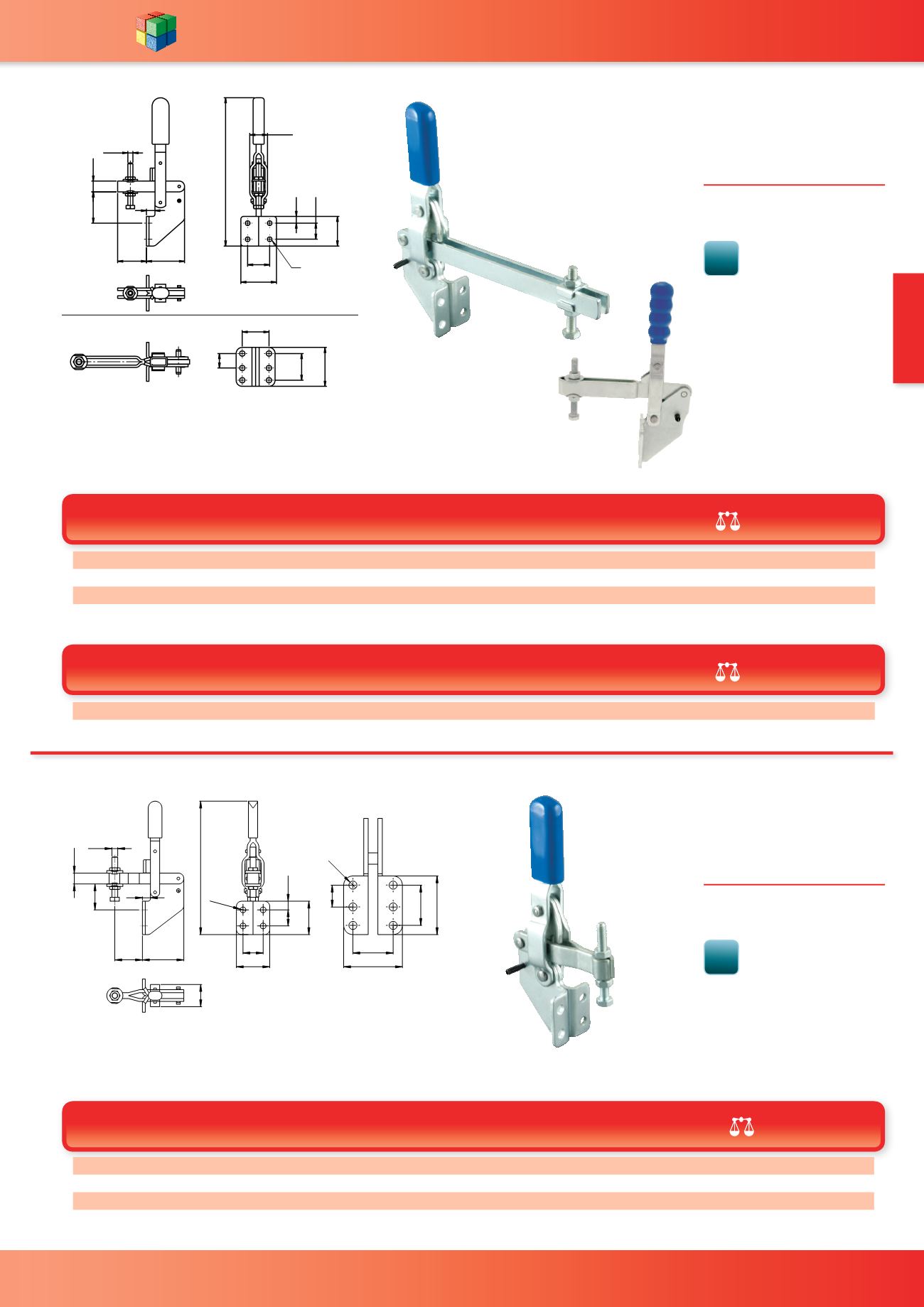

www.wdsltd.co.ukVertical Clamp -
Adjustable Spindle
WDS 4015
MATERIAL
-
Steel, zinc plated and
passivated
Front base. Adjustable spindle
position. Supplied with set screw
nuts and flanged washers.
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads
B B1 B2 D D1 H H1 H2 H3 H4 H5 L L1 L2
Arms
open
Holding
Force (kg)
(kg) WDS No.
28 17.5 19 4.5 M5 130 29 14 7.5 22.5 10 30 36 7 90°
100
0.13 4015-201
28 17.5 19 4.5 M5 130 29 14 7.5 22.5 10 100 36 7 90°
100
0.16 4015-201100
28 17.5 19 4.5 M5 130 29 14 7.5 22.5 10 150 36 7 90°
100
0.19 4015-201150
42 26 21 5.5 M6 175 35 19 8 37 12 35 45 10 90°
200
0.26 4015-202
D1
H5
H4
L2
L L1
H2
H1
B1
B
H3
H
B2
D
19
B1
H2
H1
4015-203
Vertical Clamp -
Fixed Spindle
WDS 4013
MATERIAL
-
Steel, zinc plated and
passivated
Front base. Fixed spindle position
Supplied with set screw and nuts
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and pads
B B1 B2 D D1 H H1 H2 H3 H4 H5 L L1 L2 Arms open
Holding
Force (kg)
(kg) WDS No.
28 18 19 4.1 M5 130 29 14 7.5 21 10 36 22.5 7 90°
100
0.13 4013-201
42 26 21 5.5 M6 170 35 19 8 37 12 45 28 10 90°
200
0.26 4013-202
50 35 23 6.8 M8 210 50 35 8 39 19 55 60 7 90°
300
0.54 4013-203
+
+
'
/
/ /
%
%
%
+
+ +
+
'
+
+
%
%
'
)RRW 0RXQWLQJ IRU
ZP
ZP
B B1 B2 D D1 H H1 H2 H3 H4 H5 L L1 L2
Arms
open
Holding
Force (kg)
(kg) WDS No.
50 35 26 6.8 M8 215 50 35 8 39 19 93 55 7 90°
300
0.54 4015-203
4015-203
