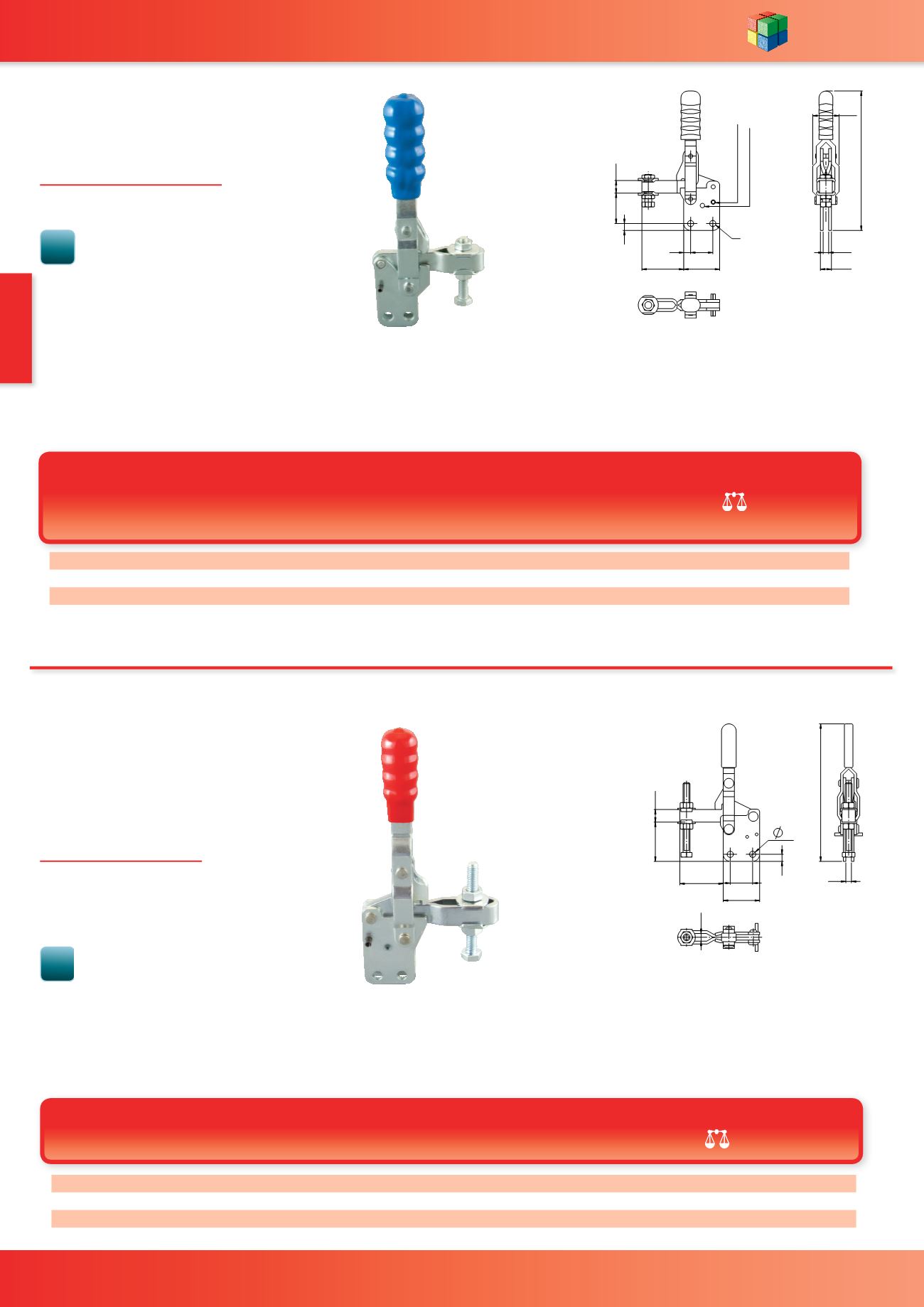

sales@wdsltd.co.ukVertical Clamp -
Adjustable Spindle
WDS 4009
MATERIAL
-
Steel, zinc plated and passivated
Vertical base. Adjustable spindle
position
Supplied with set screw, nuts and
flanged washers
Refer to 4053, 4055, 4057 for plain
spindles, swivel spindles and
pads.
B B1 B2 D D1 H H1 H2 H3 L L1 L2 L3
Arms Open
Holding
Force
(kg)
(kg) WDS No.
stop
pin 1
stop
pin 2
stop
pin
removed
16 8 4 4.4 M5 100 22 9 5 30 26 16 5 -
120° 160°
75 0.07 4009-201
22 12 6 5.1 M6 135 28 11 5.4 38 25 12.7 7 90°
120° 160°
150 0.17 4009-203
31 12 6 7.1 M8 188 40 17.5 7 74 35 19 8 90°
120° 160°
250 0.38 4009-205
38 16 8 8.3 M10 232 54 20 10 102 48 32 8 90°
120° 160°
350 0.66 4009-207
/
/
/
+
+
+
/
6WRS SLQ SRVLWLRQ
6WRS SLQ SRVLWLRQ
'
%
%
%
+
Vertical
Toggle Clamp
- Adjustable
Spindle
WDS 865
MATERIAL
-
Body - Die-stamped steel, zinc
plated to resist corrosion.
Hand Grip - Oil resistant red
vinyl
A B C D E
F
H H1 H2 L Clamp Opens
Holding Capacity
(kg)
(g)
WDS No.
16 26 5 4.4 5.5 4 98 28 9 31 130°-195°
75
50
865-202
12.7 27 5.4 5.1 6.2 5.8 135 33.4 11 43 95°-185°
150
230
865-204
19 35 7 7.1 8.9 6 190 46 17.5 75 90°-150°
250
418
865-206
$
%
/
+ +
&
'
+
)
(
