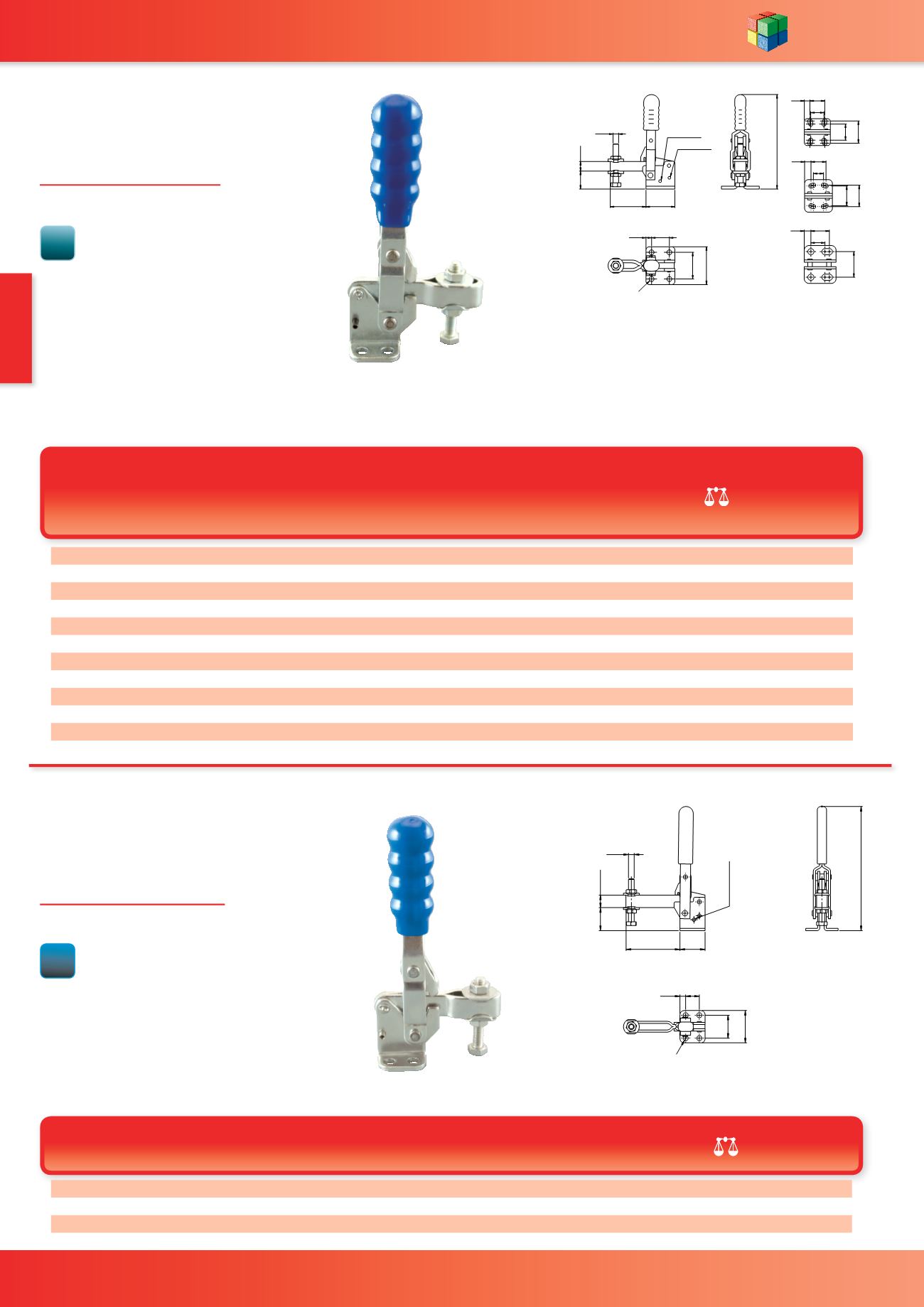

Vertical Clamp -
Adjustable Spindle
WDS 4003
MATERIAL
-
Steel, zinc plated and passivated
Flanged base. Adjustable spindle
position. Supplied with set screw,
nuts and flanged washers
Refer to 4053, 4055, 4057, 4059
for plain spindles, swivel spindles,
pads and brackets
See 4070 Series for this part in
Stainless Steel
B B1 B2 D D1 H H1 H2 L L1 L2 L3 L4
Arms Open
Holding
Force
(kg)
(kg) WDS No.
stop
pin 1
stop
pin 2
stop
pin
removed
24 34 - 4.4 M5 88 15 9 28 26 17 5 - 120° 160°
-
75 0.07 4003-201
24 34 17.5 4.7 M5 95 22 10 33 29 16 6 14.3 -
90°
185°
100 0.11 4003-202
24 34 17.5 4.7 M5 95 22 10 108 28 16 6 14.3 -
90°
185°
100 0.13 4003-202100
24 34 17.5 4.7 M5 95 22 10 158 28 16 6 14.3 -
90°
185°
100 0.15 4003-202150
27 41 - 5.5 M6 130 22 12 40 26 12.5 6 -
-
90°
160°
150 0.17 4003-203
27 42 25 5.5 M6 142 29 13 42 35 19 8 12.7 -
120° 160°
200 0.22 4003-204
32 45 - 7.0 M8 180 30 18 75 35 19 8 -
90°
120° 160°
250 0.38 4003-205
35 53 - 8.1 M8 180 39 19 96 43 25 9 19 -
105° 170°
300 0.48 4003-206
45 65 - 8.4 M10 213 45 20 89 48 32 9 -
-
110° 170°
350 0.67 4003-207
45 65 - 8.7 M12 230 50 22 112 51 32 9.5 -
-
110°
-
450 1.30 4003-208
66 91 - 12.3 M16 318 82 32 134 76 51 12.7 -
90°
120° 160°
550 2.40 4003-209
† = open ended
Vertical Clamp -
Adjustable Spindle
WDS 4070
MATERIAL
-
Stainless Steel BS 304 S15
Flanged base
Adjustable spindle position.
Supplied with set screw, nuts and
flanged washers
See 4003 Series for this part in Steel
B B1 D D1 H H1 H2 L L1 L2 L3
Arms Open
Holding
Force (kg)
(kg) WDS No.
stop pin
fitted
stop
pin removed
24 34 4.4 M 5 85 16 9 30 26 16 5 120°
160°
75
0.07 4070-201
27 38 6.1 M 6 107 23 11 40 26 12.7 7 120°
160°
150
0.17 4070-203
32 45 7.1 M 8 173 32 17.5 74 35 19 8 120°
160°
250
0.38 4070-205
+
/
'
+
/
