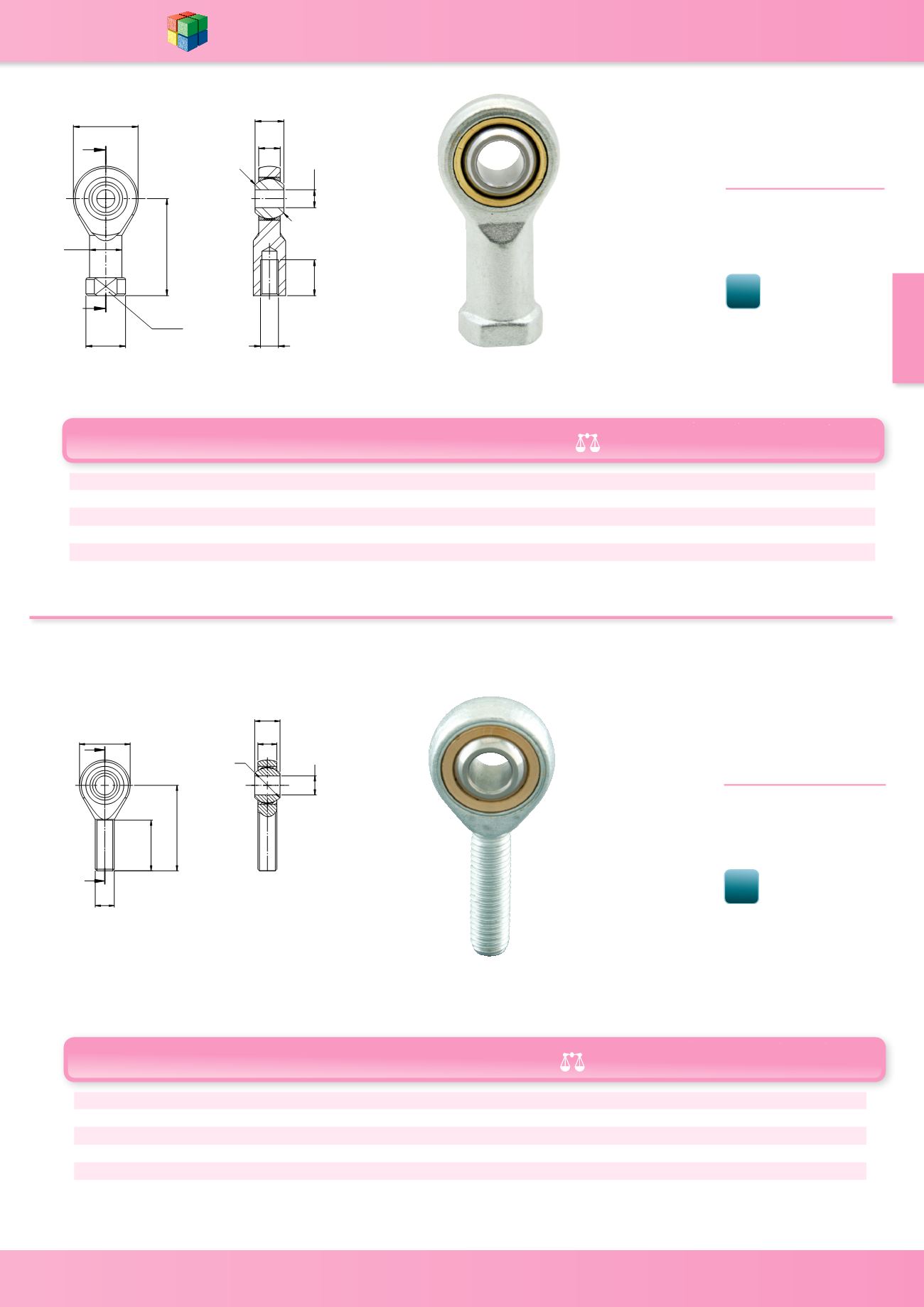

SECTION 24 - SWING BOLTS & FORK ENDS WDS
& 0845 606 66 77 • : • * 24-8
WDS
Swivel Eye Rose
Joint - Female
WDS 552
MATERIAL -
Body - Mild Steel, Zinc Plated
Ball - Hardened Steel
Bush - Brass
Liner - PTFE Composite
A B C D E F G H J S T F1 F2 (g)
Right Hand Thread
WDS No.
Left Hand Thread
WDS No.
M5 x 0.8 5 27 8 6 11.1 18 9 11 9 10 580 611 30 552-205 552-205L
M6 x 1.0 6 30 9 6.8 12.7 20 10 13 11 12 730 780 30 552-206 552-206L
M8 x 1.25 8 36 12 9 15.9 24 12.5 16 14 16 1180 1315 30 552-208 552-208L
M10 x 1.5 10 43 14 10.5 19 28 15 19 17 20 1470 1835 30 552-210 552-210L
M12 x 1.75 12 50 16 12 22.2 32 17.5 22 19 22 1730 2440 50 552-212 552-212L
&
*
+
-
6 D I
7
%
(
'
)
$
+
ZP
Swivel Eye Rose
Joint - Male
WDS 552
MATERIAL -
Body - Mild Steel, Zinc Plated
Ball - Hardened Steel
Bush - Brass
Liner - PTFE Composite
A B L L1 D E F G F1 F2 (g)
Right Hand Thread
WDS No.
Left Hand Thread
WDS No.
M5 x 0.8 5 33 19 8 6 11.1 18 580 611 13 552-405 552-405L
M6 x 1.0 6 36 21 9 6.75 12.7 20 730 780 20 552-406 552-406L
M8 x 1.25 8 42 25 12 9 15.88 24 1180 1315 38 552-408 552-408L
M10 x 1.5 10 48 28 14 10.5 19 28 1470 1835 55 552-410 552-410L
M12 x 1.75 12 54 32 16 12 22.22 32 1730 2440 85 552-412 552-412L
G
A
L
L1
E
D
B
F
+0.00
-0.12
H7
ZP
Note:
F1 = Dynamic Load kN
F2 = Static Load kN
Note:
F1 = Dynamic Load kN
F2 = Static Load kN
