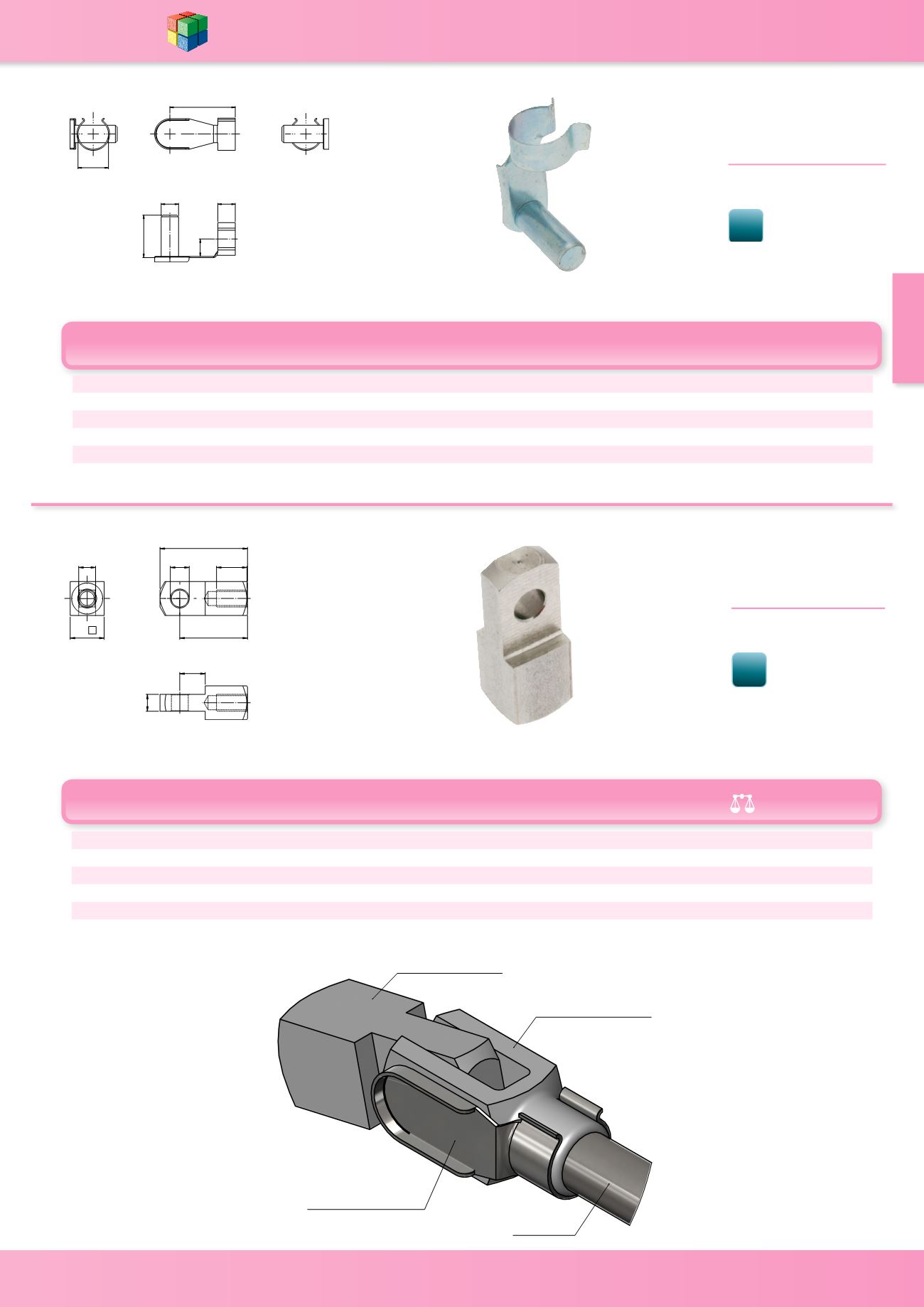

SECTION 24 - SWING BOLTS & FORK ENDS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk24-6
WDS
www.wdsltd.co.ukSpring Bolt
WDS 551
MATERIAL
-
Steel Zinc Plated
Steel zinc plated spring bolt end
fittings allow swift installation
when used with Clevis Fork.
A
B
C
D
L
L1
Suitable for use
with
WDS No.
9
5
12
5
19
5.5
551-205
551-305
10
6
14
6
23
6.5
551-206
551-306
14
8
19
8
30
8
551-208
551-308
18
10
23
10
38
10
551-210
551-310
20
12
28
12
45
12
551-212
551-312
Clevis Eye
WDS 551
MATERIAL
-
Steel Zinc Plated
Clevis eye attachments can
be used on applications such
as industrial machinery and
inspection hatches.
A
B
C
D
D1
L
L1
T
(g)
WDS No.
10
5
7.5
M5
5
26
20
8
12
551-405
12
6
9
M6
6
31
24
11
21
551-406
16
8
12
M8
8
42
32
14
51
551-408
20
10
15
M10
10
52
40
18
98
551-410
24
12
18
M12
12
62
48
22
168
551-412
/
&
'
/
%
$
'
/
7
/
&
%
'
$
ZP
ZP
551-CLEVIS FORK
551-CLEVIS EYE
551-SPRING BOLT
ROD END
